OVERVIEW
Strip curtain enclosures provide a versatile containment solution for work processes that generate flying debris, dust, or fumes. We supply bespoke PVC strip enclosures that create a protective barrier around machinery and workstations, keeping contaminants fully contained. These vinyl walls can be solid on all sides except the entrance, and a ceiling panel can be fitted to the enclosure for complete coverage.
Our strip enclosures are widely used across UK warehouses, factories, and distribution centres. They offer a cost-effective alternative to permanent rigid walls whilst providing excellent visibility and hands-free access for personnel and equipment.
Enclose Your Work Area

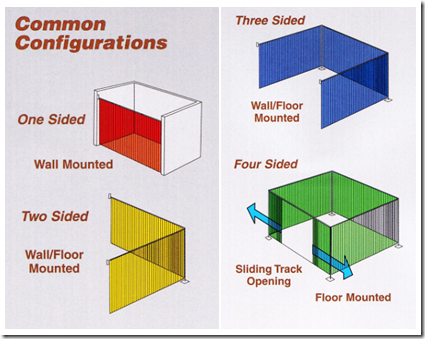

Configurations
We supply strip curtains in almost any configuration to suit your facility layout. The 50mm x 50mm steel tubing components allow for virtually any length and height construction. This tubing features a simple bolt-together design for rapid assembly and disassembly. Floor plates allow the strip curtain enclosure to be anchored to the floor if required. These 200mm x 200mm plates have four locations for secure fixing.
Every enclosure is designed to your exact specifications. Whether you need a small workstation surround or a large production line enclosure, we provide detailed drawings for approval before fabrication begins.
Durable Hardware
Strip Hardware
Using the same studded hardware as a traditional strip curtain, the strips attach to the galvanised steel frame and securely bolt on. This prevents the strips from coming detached when materials move through. The hardware is fabricated from hot-dipped galvanised steel which also comes with a lifetime warranty.
We supply all fixings and brackets as standard, so your maintenance team can complete the installation without specialist tools. Replacement strips can be ordered individually if any become damaged over time.
Enclosure Small Work Areas
Modular Design
We supply freestanding curtain track and portable curtain track for your industrial applications. This hardware is modular in design and can be configured in almost any length and height. The floor-mounted curtain hardware features base plates which can be anchored to the floor for rigid stability. The freestanding strip curtain enclosures can also be taken apart and reconfigured into other shapes as needed since there is no welding involved.
This flexibility is particularly valuable for UK businesses that need to adapt their workspace layouts seasonally or as production requirements change.
Enclose Large Areas or Small Areas
Our freestanding curtains are custom made to meet your application needs. We provide bespoke quotes based on your design, ensuring you receive exactly what you need. You can enclose areas both large and small, keeping dust contained or work areas zoned off.
From compact CNC machine enclosures to full production line surrounds spanning 30 metres or more, our strip curtain systems scale to any requirement. We work with facilities managers across the UK and Ireland to design enclosures that integrate seamlessly with existing workflows.
Construction
- Galvanized steel - Hot-dip galvanising (HDG)
- Lifetime warranty
Uprights
- 5cm x 5cm OD tubes
- Tube size selected based on curtain heights
- Max height is 4.5m
- Maximum distance between uprights is 3m for solid
curtains and 2.4m for strip curtains. - Layout drawing provided with each order for your
approval
Base Plates
- 30cm x 30cm
- 9mm lag holes located in each corner
Assembly
- Your order will arrive as a bolt together kit
- Simply assemble hardware and then hang the curtains
Strip Mount Style
- Strips attach to horizontal cross members
- Strips bolt on for secure locking
- Strips can unbolt to be replaced quickly
Rolling Curtain Mount Style
- Curtains attach to nylon roller hooks
- Curtains roll side-to-side for complete access
Build Yours Online
