Choose A Style
Welding Booth Strips
Welding booth strip curtains allow welders to enter and exit their bay without pushing panels aside. The overlapping strips part on contact and return to position automatically.

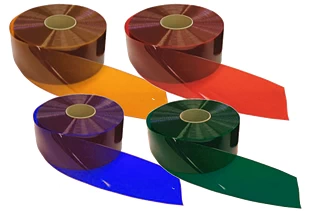

Replacement Welding Strips
If your existing strip curtain hardware is still in good condition, we supply replacement PVC strips that clip straight onto your current mounting railsâno new framework needed.

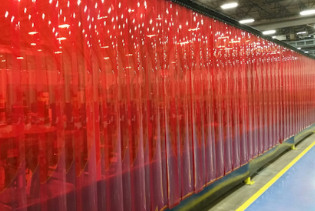

Hanging Welding Strip Curtains
Suspended from the ceiling on threaded rod drops, hanging welding strips create a full-height curtain wall that keeps materials and operatives free to move at floor level.
Robot Weld Cell Strips
Robotic welding cells demand rapid material throughput. PVC welding strip curtains allow components to be fed in and finished parts removed without manual door operation, keeping cycle times short.

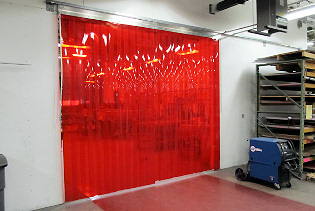

Welding Strip Doors
Where welding zones need to be separated from general workshop areas, welding strip doors provide a practical walk-through barrier that significantly reduces UV exposure for passing personnel.
Exhaust Hood Welding Strips
Extraction hoods fitted with welding strips channel fumes upward through the exhaust system while keeping the surrounding area shielded from sparks and flash.

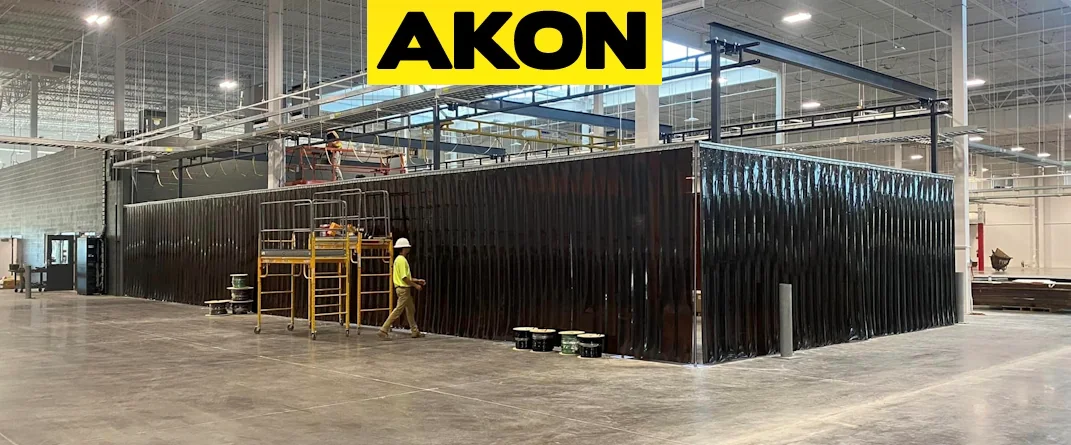

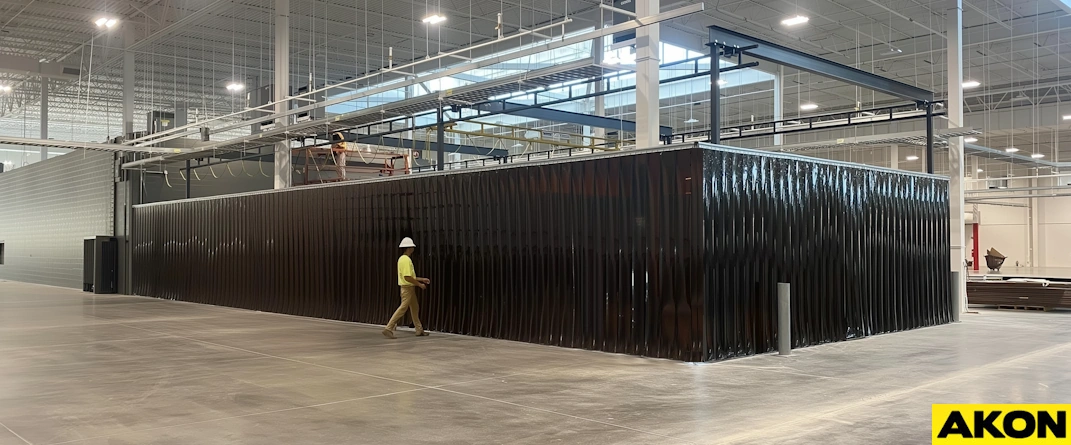

Free-Standing Welding Strips
When ceiling or overhead mounting is not possible, free-standing welding strip curtains provide a self-supporting barrier. These are commonly used to form portable welding booths on open production floors.
Strips Come In Different Colours and Widths
Weld Strip Colours
Welding strip colours are selected based on the level of UV attenuation required and operator preference. Darker tints block more ultraviolet light, though every colour in the AKON range provides meaningful UV reduction. Remember that welding PVC strips are designed for incidental bystander protection and should never replace a proper welding helmet.
- Tinted Bronze Weld
- Tinted Red Weld
- Tinted Green Weld
PVC Strip Widths

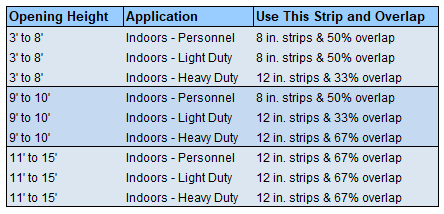

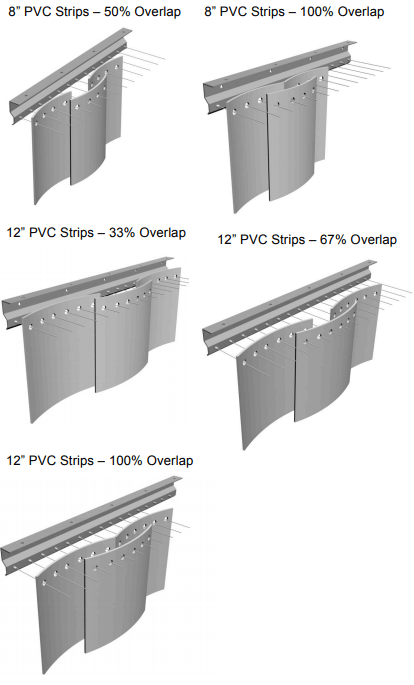

Choosing the right strip width and thickness depends on the height of the opening and the type of traffic passing through it. Thicker strips offer greater durability for high-traffic doorways, while thinner options allow easier pedestrian access. The two most popular sizes for UK welding applications are listed below.
- 200 mm à 2 mm (Most Common)
- 300 mm à 2 mm
Welding Strip Colours
Tinted Red Bulk Roll
Darkness: 2 out 4
Cost: â¬â¬
Tinted Bronze Bulk Roll
Darkness: 3 out 4
Cost: â¬â¬
Tinted Green Bulk Roll
Darkness: 4 out 4
Cost: â¬â¬
Description
AKON welding strip curtains for welding applications can shield onlookers and staff members from the hot debris and hazardous light produced during welding. With AKON welding strip curtains, you can safely be protected from incidental glances at welding operations without being exposed to harmful light wavelengths or UV rays.
Colors
- Tinted Light Bronze | Medium Transparency
- Tinted Light Green | Low Transparency
- Tinted Red | Medium Transparency
Benefits
- ISO 25980
- Anti-UV
- Temperature Range - Between -15 °C to 50 °C
- UV Absorber - Strips will not discolor
- Fire retardant to BS standards
- Complies with EN1598, AWS F2.3 and ISO 25992
- Eco friendly and its 100% Phthalate Free
- 2 Year warranty on manufacturing defects - Strips
High Temperature Ranges
- All strips have a temperature max of 50 °C
- If higher temperatures are needed, then use our line of Heat Rated Strip Curtains
