Scissor Lift Table Bellows

Other Common Questions

How does the bellows mount to the lift table?

There is a 7.62cm flange on the top of the bellows that attaches to the side of the lift table, as shown below. This is then bolted to the lift table every 30.50". The flange will have a flat steel bar or stiff PVC in the flange pocket, depending on the style of skirting you purchase.

Do the bellows need to be attached at the bottom?

Most installations allow the skirt to rest on the floor, with only the top being attached. The weight of the skirt is often enough to keep the skirt on the floor. We also have optional weight bars for the bottom, which can be ordered and added after the skirt is installed.

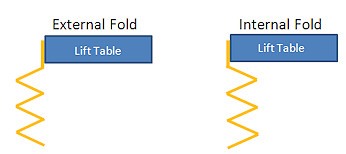

What is the difference between internal and external folds?

• Below you can see that the folds of the bellows can face outward or inward, depending on what style you want.
• Please be aware that internal fold bellows need adequate room facing inwards for the folds.
• For instance, if you have a 50 x 50 top size and a 50 x 50 bottom lift table size, then an internal fold will not work.
• Pit lifts that are mounted in the floor generally always need an internal fold for them to work.
• Internal folds have the smallest footprint for conserving space.
• External folds are the most common and best option for when you are unsure that an internal fold will work.

What fold depth should I choose?

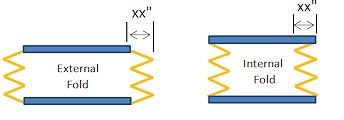

• Fold depth (as indicated in the above image as xx) is the width of the folds
• 7.62 cm folds are the most common and economical
• Smaller folds would only be needed if you have space constraints, such as lift table carts and pit lifts.
• The smaller the fold, the more expensive the skirting and the taller the stack-up of the skirt.

Are different colors available?

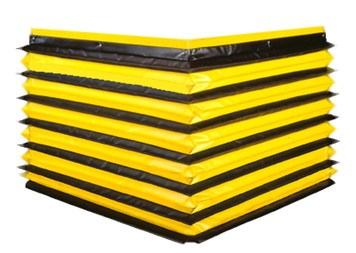

Yes, there are different colors available for stitched skirts and the heat-bonded skirts. The standard colors are black and yellow, or a combination of both. Other colors can be requested on the fill-in RFQ forms.

Are there any requirements regarding scissor lift table skirts?

Scissor lift tables have scissors, which are very dangerous pinch points. Thus, if the lift table is not properly shrouded with a lift table bellows, then your facility is at risk of injuring a worker. Taking necessary precautions to protect workers is a requirement.

• EU law: Machinery Regulation (EU) 2023/1230 replaces the Machinery Directive. It sets the safety requirements for machinery sold in the EU.
• UK: Health and Safety Executive (HSE). Employers must prevent access to dangerous parts of machinery under PUWER Reg 11, typically by fixed or interlocked guards.
• Germany: Dual system. Enforcement by the state labour inspectorates plus the accident insurers (DGUV) with their rules and test principles.
• France: Labour Inspectorate (Inspection du travail) enforces the Labour Code, with INRS as the national technical body for OSH guidance.
