Opaque Curtains - 13oz, 18oz

• Vinyl-coated polyester reinforced with scrim
• Full range of fire-retardant BS standards
• 18 oz is outdoor-rated
• Finished edges for a clean, crisp appearance
• Double or triple hems are used where needed for longevity
• Ideal for temperatures going as low as -12° C to 71° C
• All colors are the same price
• 13 oz = .04cm thick, 15.51 oz/m²
• 18 oz = .05cm thick, 21.53 oz/m²

Clear Curtains - 20mil and 30mil

• Clear double-polished PVC
• Full range of fire-retardant BS standards
• Outdoor rated
• Finished edges for a clean, crisp appearance
• Double or triple hems are used where needed for longevity
• Ideal for temperatures going as low as -12° C to 60° C
• 20 mil = 21.32 oz/m²
• 30 mil = 42.51 oz/m²

Tinted Curtains - 14mil and 40mil

• Ideal for welding applications
• Blocks most UV radiation for welding
• NFPA fire retardant, CFM fire retardant
• 40 mil is outdoor rated
• Finished edges for clean, crisp appearance
• Double or triple hems are used where needed for longevity
• Ideal for temperatures going as low as -12° C to 60° C
• 14 mil = 14mil thick, 14 mil = 15.51 oz/m²
• 40 mil = 40mil thick, 40 mil = 42.51 oz/m²

Opaque Colors

WARNING: Please note that colors in the video are a representation only.
On-site colors will differ slightly due to lighting and your digital
device image settings. For exact color needs, please ask for a sample.

Tinted Colors

Curtain Features

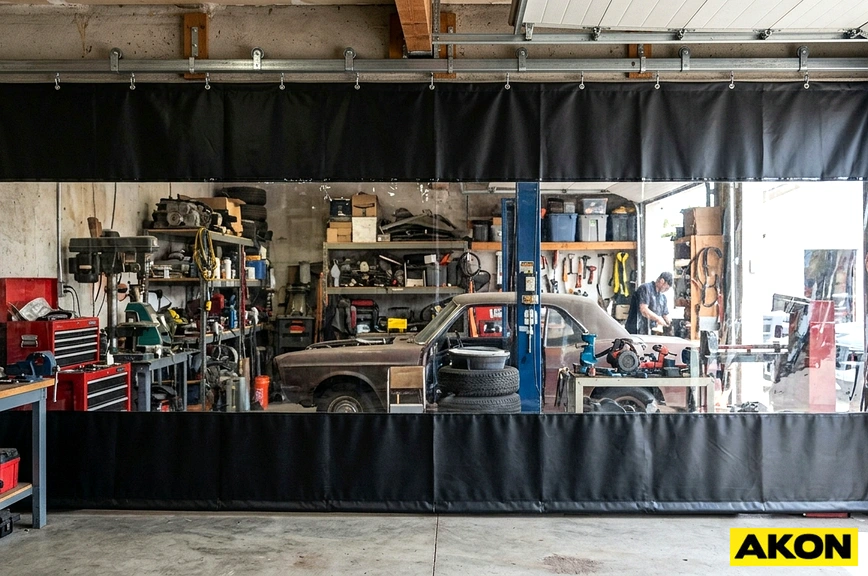

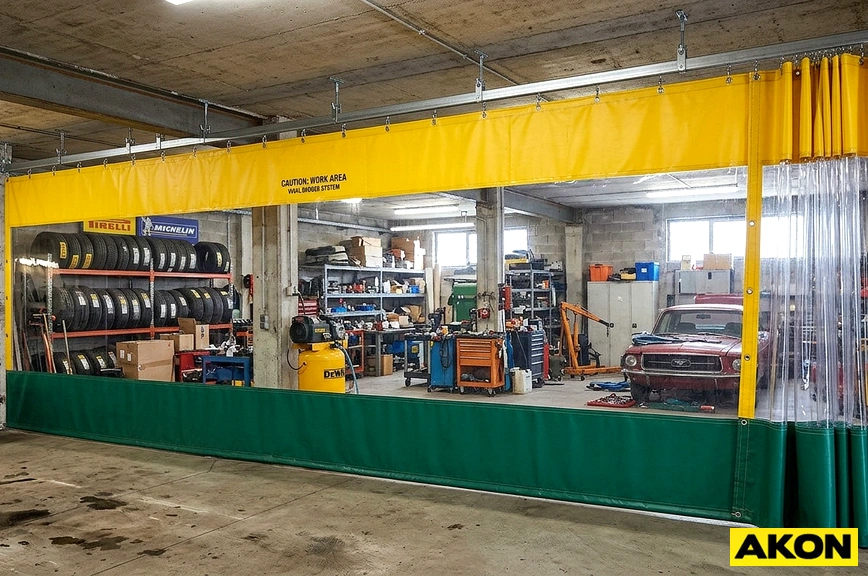

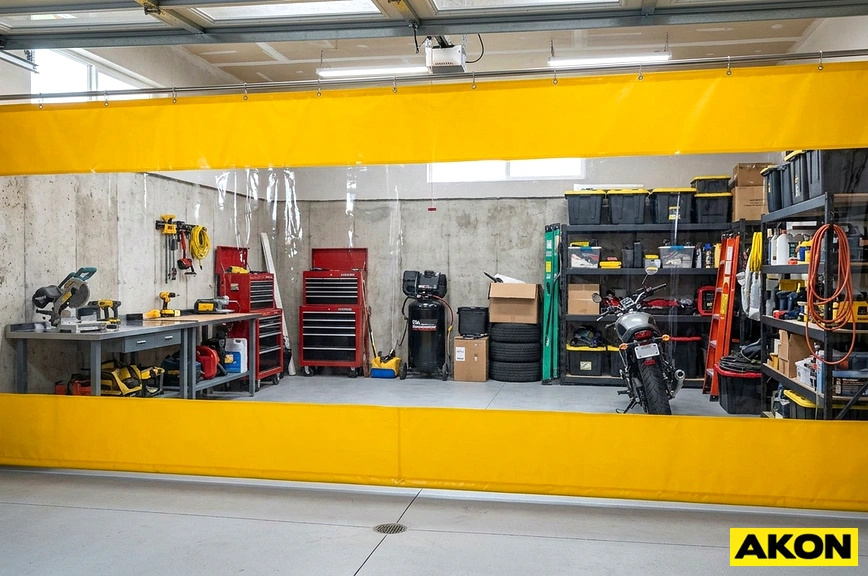

Clear Vision Panels

Vision panels can be added to allow for
a clear line of sight through the curtain.
The panels can be made taller or shorter
per your request.

Curtain Valances

A valance is made from the same material
as the lower curtain. They are used to seal
the opening above the curtain. This is generally
the space from the roof deck to the bottom
of the joist or purlin. They can be rectangular
or follow the roof's slope.

Floor Sweeps

A floor sweep seals the open area
between the curtain and the floor.
It attaches to the main curtain by Velcro.
They are as wide as the entire length
of the curtain. These are ideal for
controlling dust, fumes, odors, and
other undesirable elements. They can
also be replaced in the future should the
friction from the floor wears them out.

Anchor Straps

Velcro straps hold your curtain in
place if a breeze or if a more secure
curtain is needed. These anchors feature
Velcro straps that loop through a D-ring,
which is anchored into the cement floor.
Typically spaced every 1.2 m.

Seal Velcro

Seal Velcro, also known as adhesive Velcro,
sticks onto your curtain and can be installed
in the field. Please note that stick-on velcro
is not ideal for cold-temperature applications
or high-frequencyuse.

Chain Weights

If you have a slight breeze or are power
washing near the curtain, then we can
add a galvanized lightweight chain weight
to the bottom of the curtain.

Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access point for
larger curtains and makes them easier to
install.

Magnets

Seal magnets are an ideal way to attach
curtains to each other or adjacent steel
walls and beams. Best utilized in dusty
areas that would clog up Velcro.

Entry Options

Sewn-In Strip Doors

Strip doors that are sewn into the curtain
are ideal for light foot traffic. This allows
for quick movement of people into and
out of the industrial curtains.

Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.

Swinging Impact Doors

A free-standing industrial swinging door
can also be provided for access. Also
known as impact doors, these heavy-duty
doors can take a lot of abuse from carts,
forklifts, or heavy foot traffic. View Styles

Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements,
and size. View Styles

Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purposed in other areas
• Ability to purchase more curtains and attach them to existing curtains
• Divide work areas quickly
• Industrial curtains improve worker safety
• Quick to roll out of the way when not in use
• Easy to clean with the slick surface of Vinyl
• Contain air migration, odors, dust, and overspray.
• Lifetime warranty on all hardware and a 5-year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single-sided, double-sided, triple-sided, four-sided, or multiple straights to create complete enclosures. You simply inform AKON about your desired design, and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

Width

• Measure the distance that you are trying to cover, and then add 5% to that dimension and enter it into the width box.
• TIP - The reason you want to add 5% is for proper drape of the curtain so that it properly covers the span.

Height

• Measure the distance from the floor to the above mounting point (from where you would attach the curtain track) and subtract 7.6 cm, and then input it into the height box.
• TIP - If you are not using any hardware, then you don't need to subtract the 7.6 cm.
