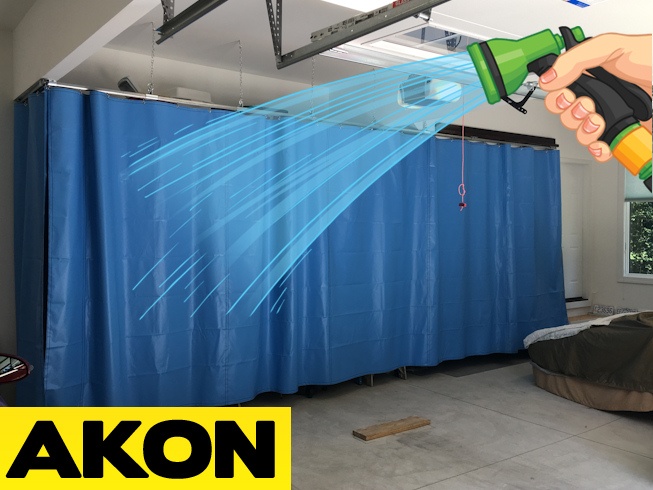

Opaque Curtains - 18oz

• Vinyl-coated polyester reinforced with scrim
• Full range of fire-retardant BS standards
• Indoor and Outdoor rated
• Finished edges for a clean, crisp appearance
• Double or triple hems added where needed for durability
• Temperature range: -32 °C to 71 °C
• All colours are the same price
• 2.0 oz per square foot (most common)

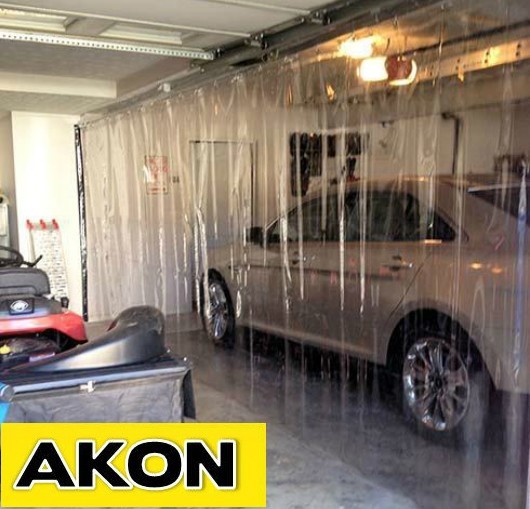

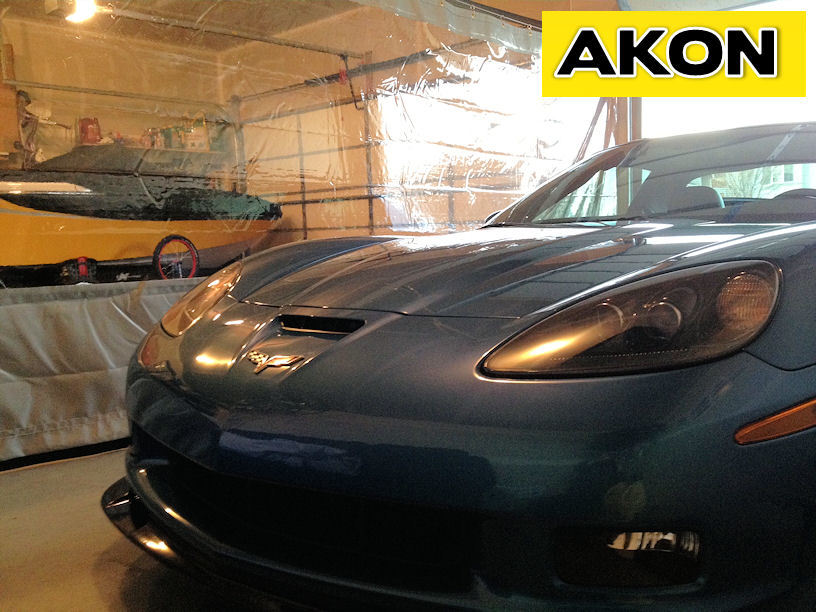

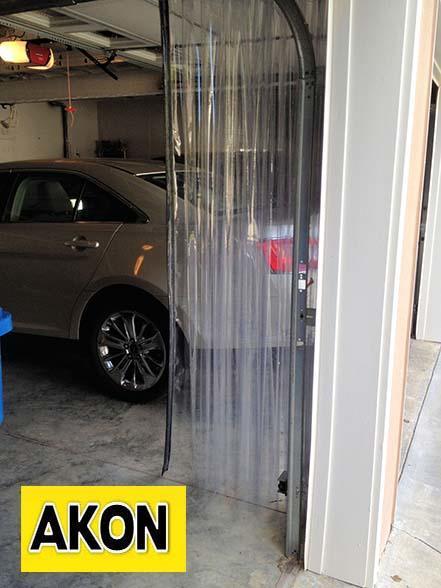

Clear Curtains - 20mil

• Clear, double-polished PVC
• Full range of fire retardant BS standards
• Outdoor rated
• Finished edges for a clean, crisp appearance
• Double or triple hems added where needed for durability
• Ideal for temperatures between -12 °C and 60 °C
• 20 mil = 20 mil thick, 1.98 oz per square foot (most common)

Tinted Curtains - 14mil

• Ideal for welding applications
• Blocks most UV radiation generated during welding
• Full range of fire retardant BS standards
• Finished edges for a clean, crisp appearance
• Double or triple hems added where needed for durability
• Ideal for temperatures between -12 °C and 60 °C
• 14 mil = 0.3mm thick · 439g/m²

18oz Vinyl

Warning: Please note that the colors in the video are only a representation.
On-site colours may differ slightly due to lighting conditions and the image
settings of your digital device. For exact colour needs, please ask for a sample.



14mil Vinyl Tinted

Curtain Features

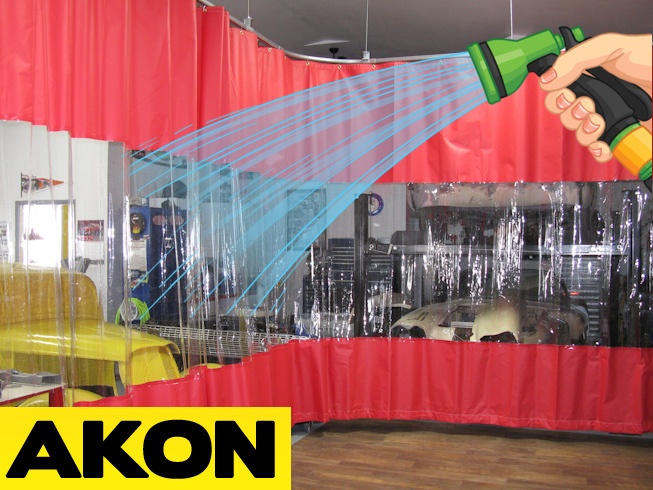

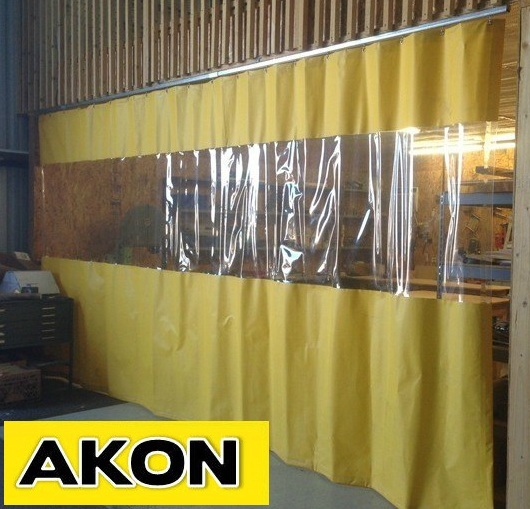

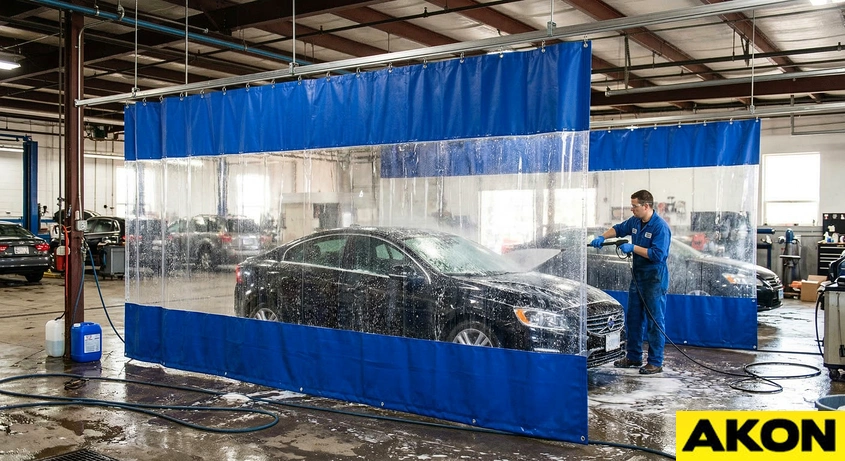

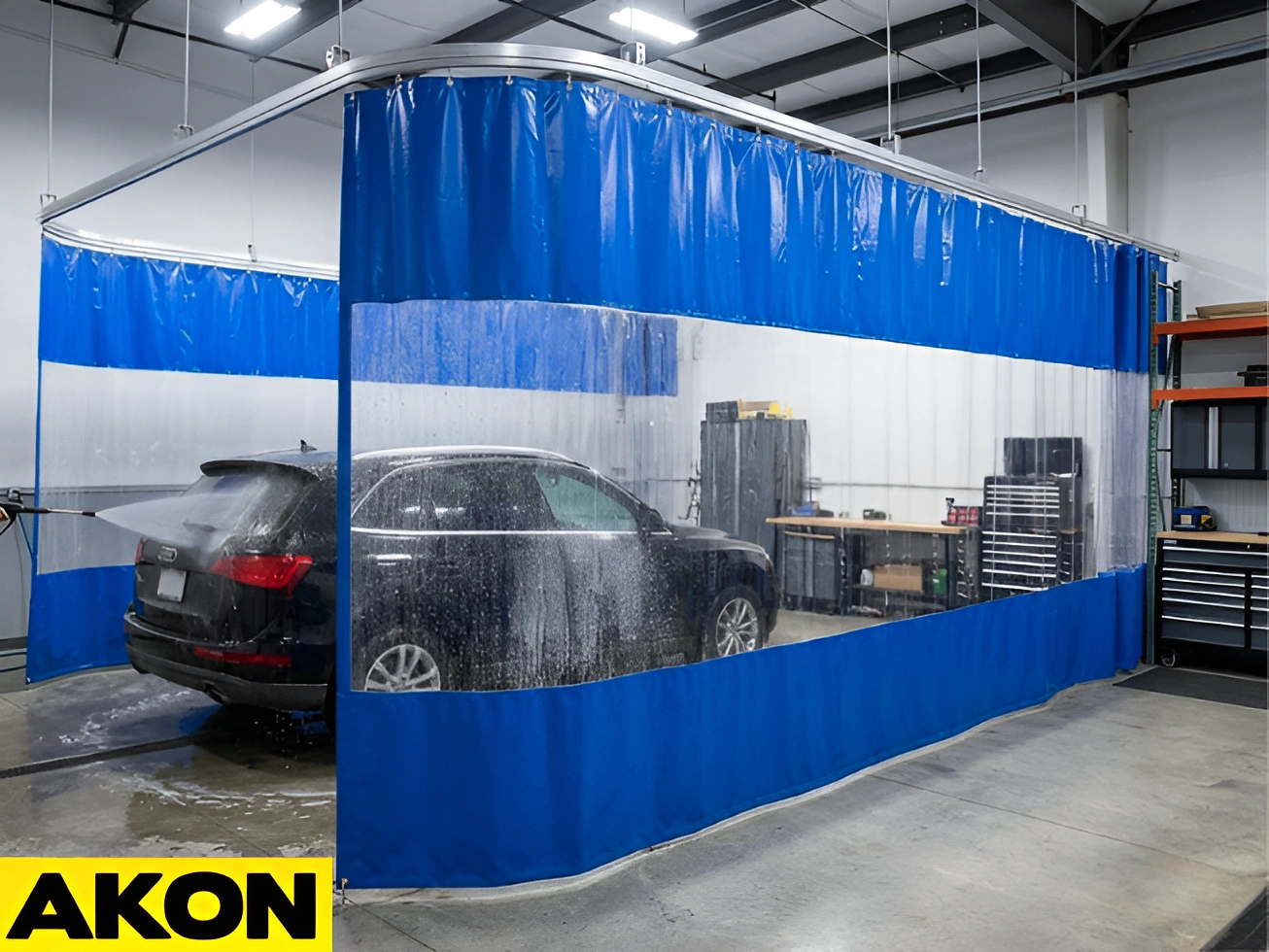

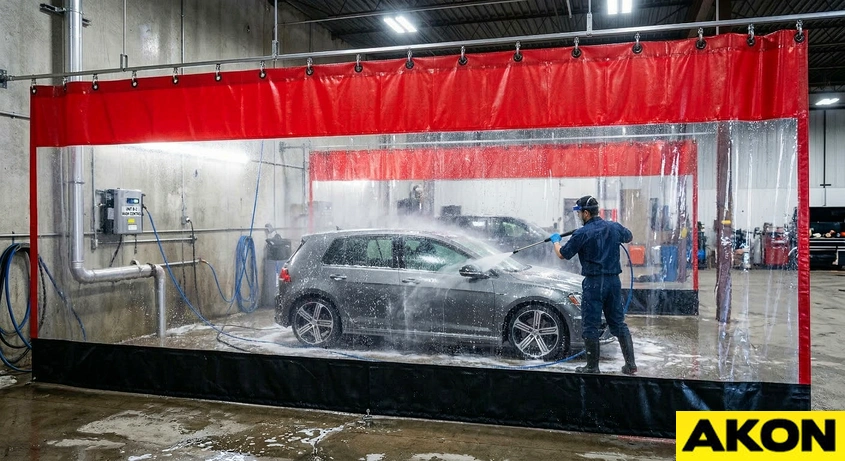

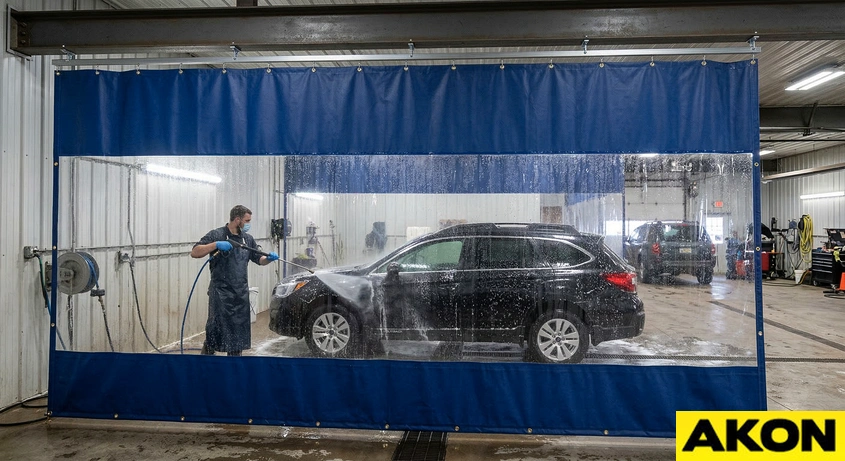

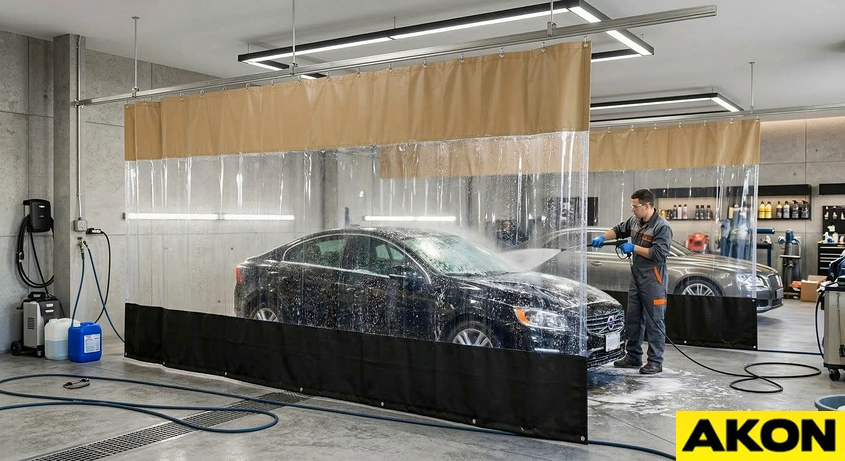

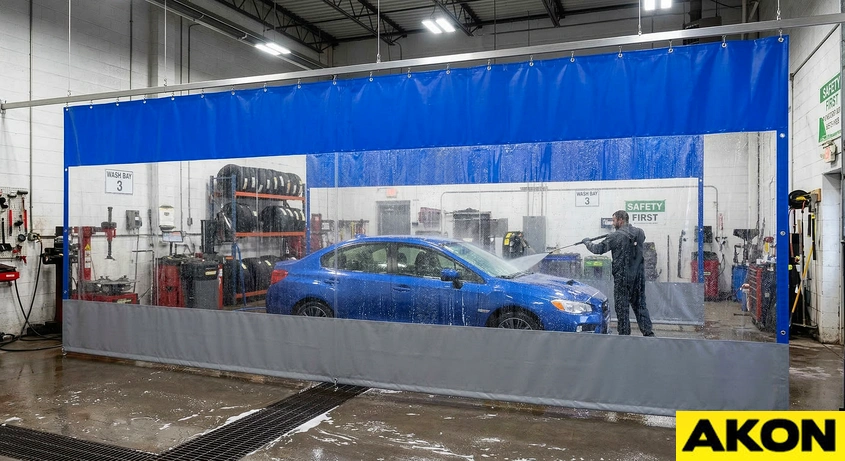

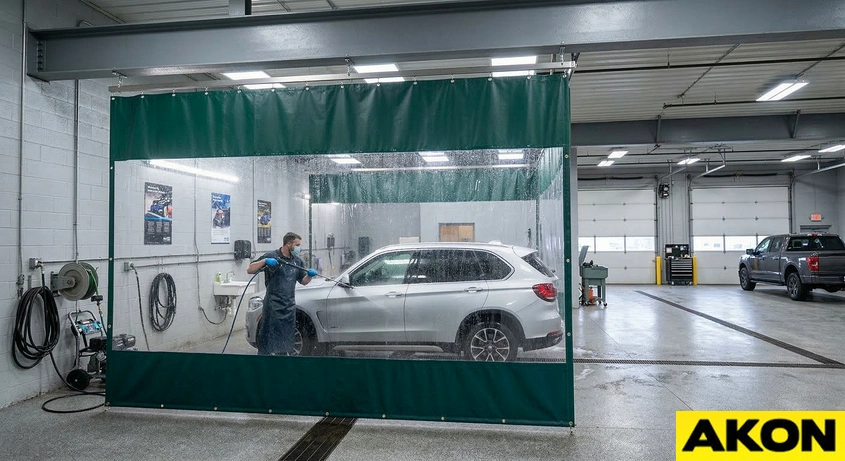

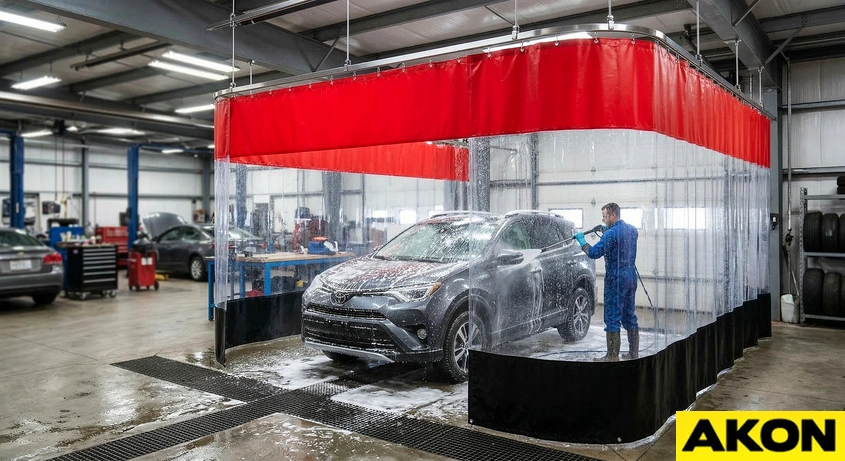

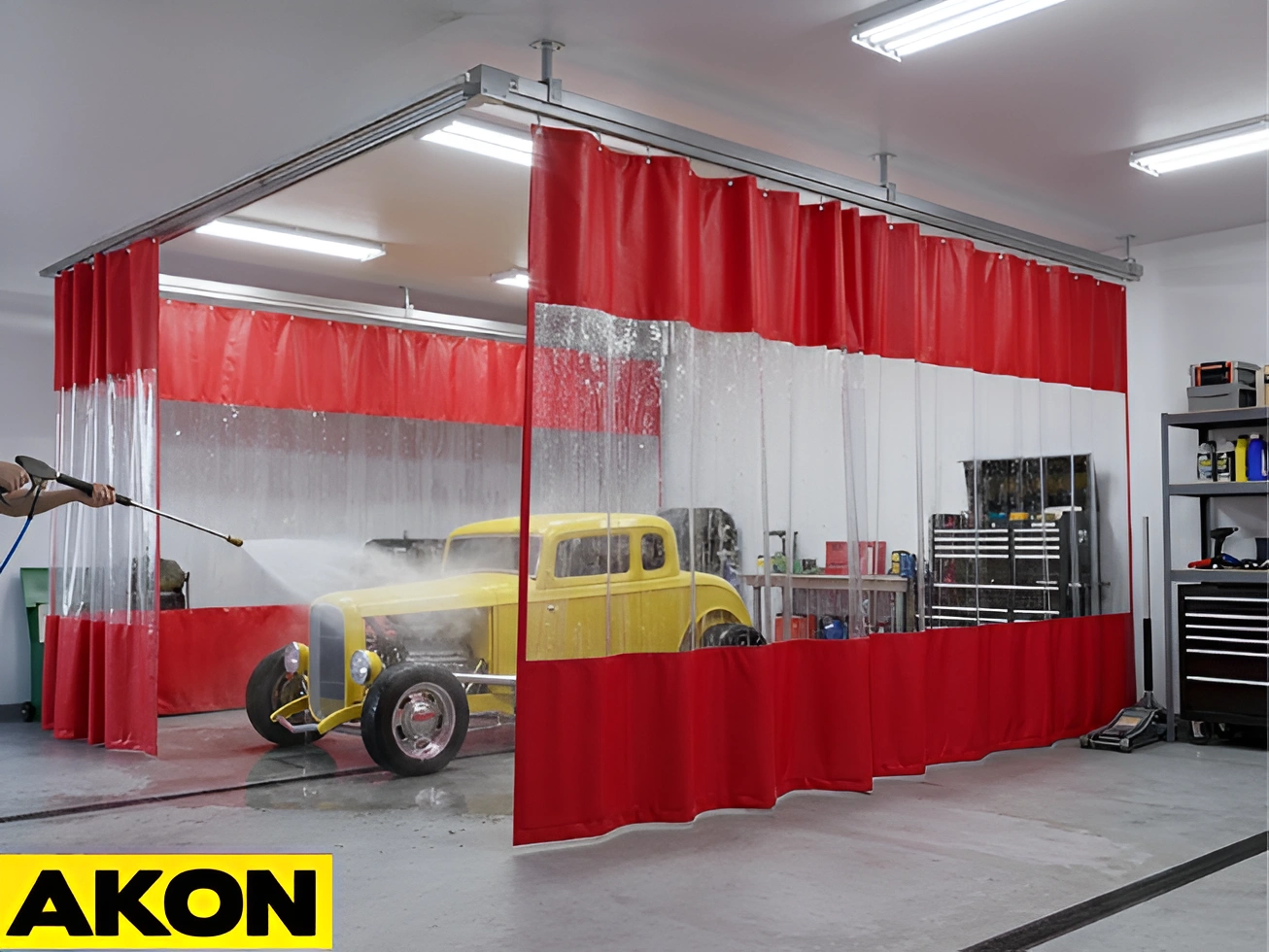

Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. The panels can be made
taller or shorter per your request.



Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the roof's slope.



Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are as wide as the entire
length of the curtain. These are ideal for controlling
dust, fumes, odors and other undesirable elements.
They can also be replaced in the future should the
friction from the floor wear them out.



Anchor Straps

Velcro straps hold your curtain in place if a
breeze or if a more secure curtain is needed.
These anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 1.2m.



Seal Velcro

Seal Velcro, also known as adhesive Velcro, sticks
onto your curtain and can be installed in the field.
Please note that stick-on velcro is not ideal for
cold temperature applications or high-frequency
use.



Chain Weights

If you have a slight breeze or are power washing
near the curtain, then we can add a galvanized
lightweight chain weight to the bottom of the
curtain.



Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access point for
larger curtains and makes them easier to
install.



Magnets

Seal magnets are an ideal way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.



Entry Options

Sewn-In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.



Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.



Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy-duty doors can
take a lot of abuse from carts, forklifts, or
heavy foot traffic.  View Styles





Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements,
and size.  View Styles



Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purposed in other areas
• Ability to purchase additional curtains and connect them to existing ones
• Quickly divide work areas
• Industrial curtains improve worker safety
• Easy to roll out of the way when not in use
• Easy to clean due to the smooth vinyl surface
• Helps contain air movement, odours, dust, and overspray
• Lifetime warranty on all hardware and a 5-year warranty on curtains

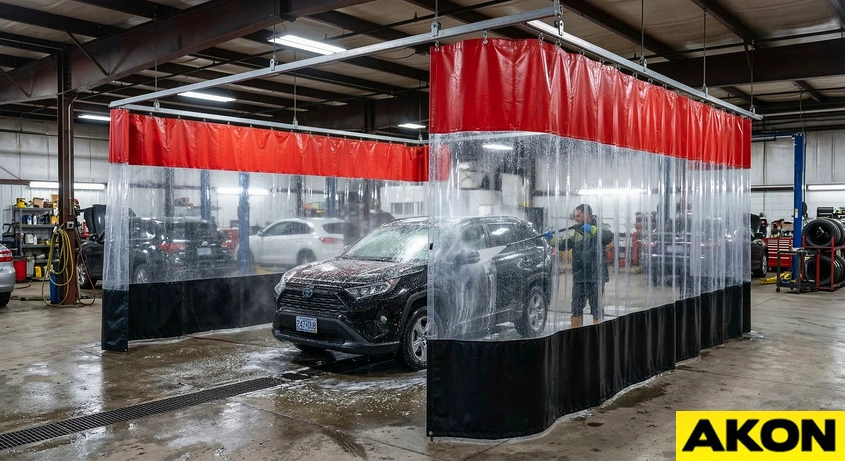

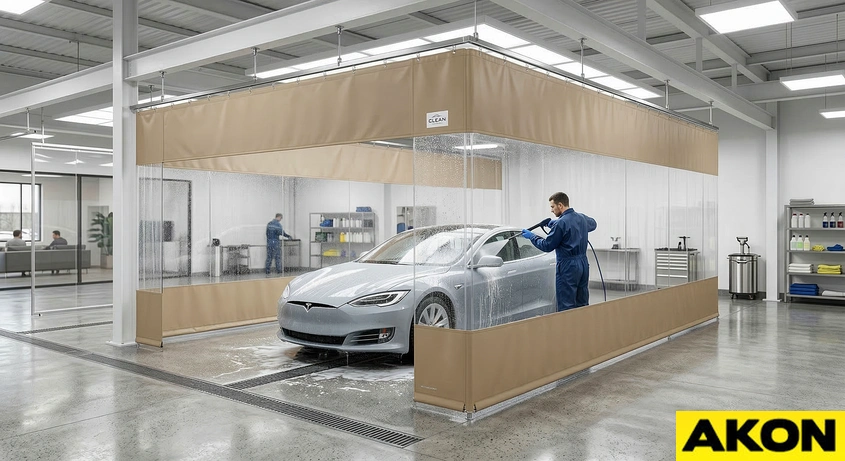

Common Layouts

AKON can supply almost any layout you can imagine. Below are some of the most common styles. They can be single-sided, double-sided, triple-sided, four-sided, or multiple straight runs to create complete enclosures. Simply tell AKON your required design, and we will fabricate it exactly to your specifications. For customised layouts, sketch your design and upload it using our online RFQ form. See the button below.

Width

• Measure the distance that you are trying to cover
  • We will generally add 5% to this dimension to give your curtain a proper drape.
  • When you receive your quote, the hardware width shown will be the actual overall width.

Height

• Measure the distance from the floor to the mounting point
  • We will subtract 7cm to allow for the hardware and keep your curtain just off the ground.
    • If you choose the floor sweep option, we still subtract 7cm. This allows the floor sweep to sit lightly on the floor while the main curtain hangs just above it.
    • If you have a sloped ceiling, please provide the high-point height and the low-point height. We will assume a straight, linear slope. More Info Here On Sloped Ceilings



Need More Help? Watch This

---



Common Questions

---

What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have a gap of approximately 2–2.5 cm between the bottom of the track and the top of the curtain.
