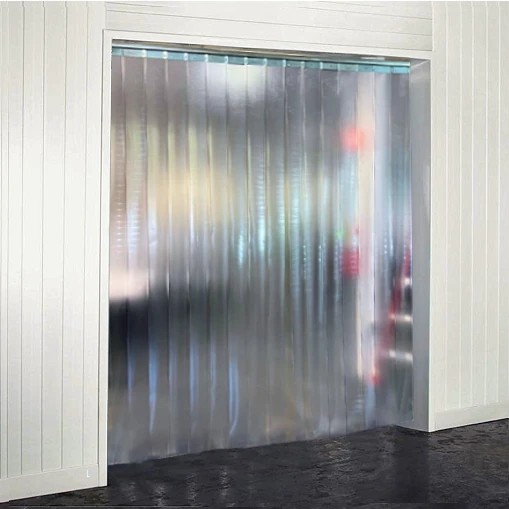

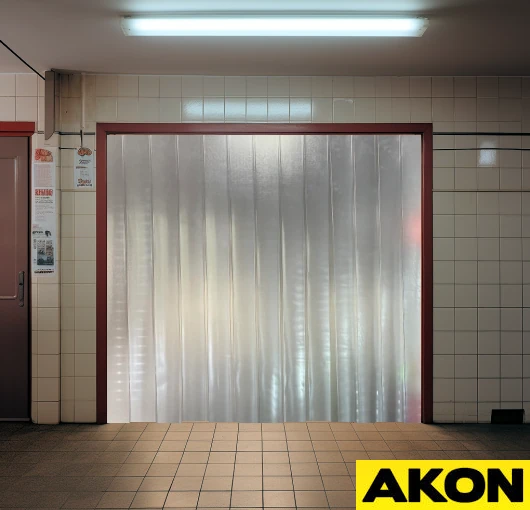

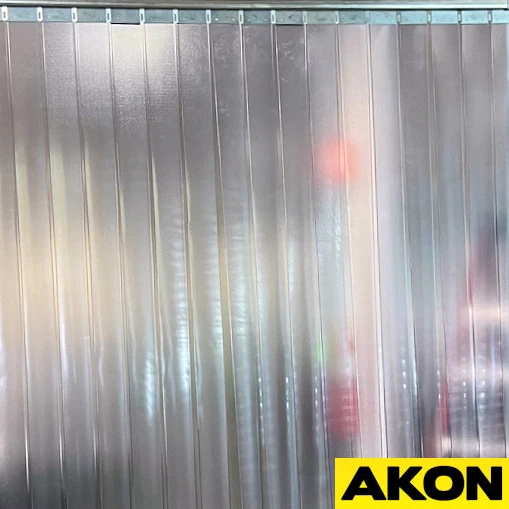

Name: Frosted PVC Strip Curtains
SKU: frostedpvcstripcurtains1x1allclearwallmount

Description

Need a Custom Quote?

Measuring Choosing The Correct Strips Hardware Material FAQ Ordering

Measuring

Step 1 – Width x Height

Measure the width and the height of the door
opening or area where you want to install the
strips.
Add 152 mm more in total height and add 152mm total in width
if you want wall mount hardware

Step 2 – Choose Your Hardware

Decide on the type of mounting that best fits
your application
- Wall mount is preferred on doorways. This gets
  the hardware out of the doorway and allows the
  strips to overlap the door jambs for maximum
  seal and air lock.
- For in-jamb use header mount, simply order the
  exact size you need to span the opening.
- Universal mount can also be used when you are
  not sure.

Choosing The Correct Strips

Hardware

Hook On Rails

Most popular mounting style
Strips have steel mounting plates attached

Quick Mount

Stud Mounts

Free-Standing Mount

Supported from the floor up
Used in open floors when you can support from above
Click here for this style

Rolling Hardware

Allow the strips to roll out of the way
Ideal for complete access when strips are not needed
Note the strips roll like a barn door and do not fold up
Click here for this style

Tube Mount

Fits up to 5cm diameter pipe
Each pipe clamp is 10cm wide and holds 2 strips (overlapped)
Click here for this style

Material

Description

Clear - Stays clear 20% longer
Temperature Range - Between -15 °C to 50 °C
UV Absorber - Strips will not discolor
Full range of fire retardant BS standards
Crystal Clear - Extrusion Clear Processing for maximum line of sight
Eco friendly and its 100% Phthalate Free
High thermal insulation
2 Year warranty on manufacturing defects - Strips
Need other colors, click here?

FAQ

Should I order the strips a little taller than the opening?
Only if you want, the wall mount hardware. With wall mount hardware, order the strips 152mm taller and 152mm wider than the opening you are trying to cover since you are mounting to the face of the opening. Otherwise, order the strips to the exact size of the opening.

Are the heights of the strips measured from the hole or the top of the strip?
The height is measured from the top of the strip to the bottom of the strip. The holes are located 19.05mm down from the top of the strip.

How do you cut the strips in the field?
You use a utility knife and a straight edge to keep the cut straight.

Do I need to cut the strips myself?
No. When you order a kit, we cut the strips to your specific opening height. However, we usually advise ordering a few centimeters longer than your exact opening height to allow for floor variations; you can easily trim the bottom with a Stanley knife after hanging them for a perfect fit.

What is the difference between "Minimum" and "Maximum" overlap?
Minimum Overlap: Uses fewer strips. The strips overlap slightly (usually ~50mm). This is easier for pedestrians to walk through and costs less. Best for internal partitions.

Maximum Overlap: Uses more strips with a deeper overlap (usually ~100mm). This creates a tighter seal against wind, rain, and cold. We recommend this for external doorways or areas where insulation is the top priority.

What are "Marker Strips"?
These are Red Warning Strips that we can include for the edges of your curtain. They act as a visual safety guide for forklift drivers and pedestrians, clearly marking the edges of the doorway to prevent collisions with the door frame. If you want these, just ask for them.
