Track Dimensions
Standard Track

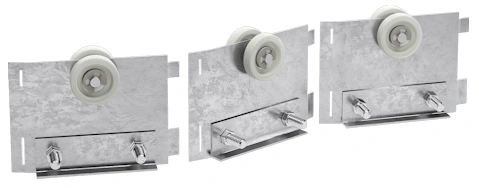

Trolleys
Description

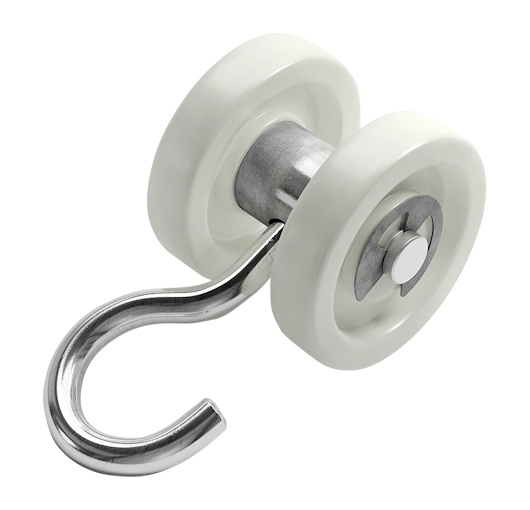

Choose a trolley that best fits the item that you want to hang on the overhead trolley. Nylon wheels are for lighter load weights and steel wheels are for heavier load weights. The steel wheels have ball bearings for easy rolling. All hooks will freely swivel 360 degrees so that you can spin your item.
Load Capacity 40lbs Each
Load Capacity 75lbs Each
Load Capacity 125lbs Each
Trolley Attachment Mounts

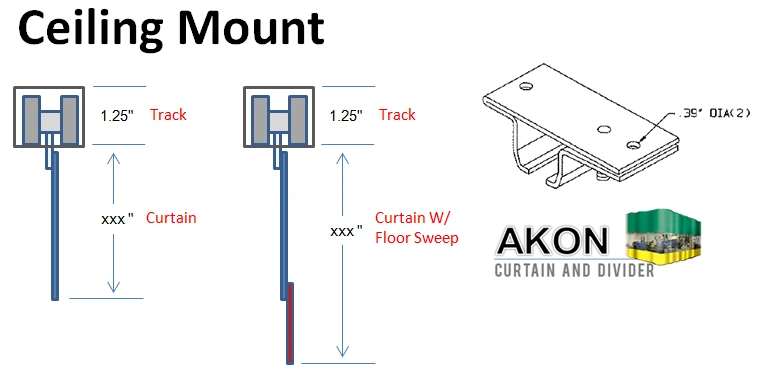

Ceiling Mount Trolley
Choose this mounting style if you want your industrial curtain track to mount to the ceiling with only a 5–10 cm open gap.

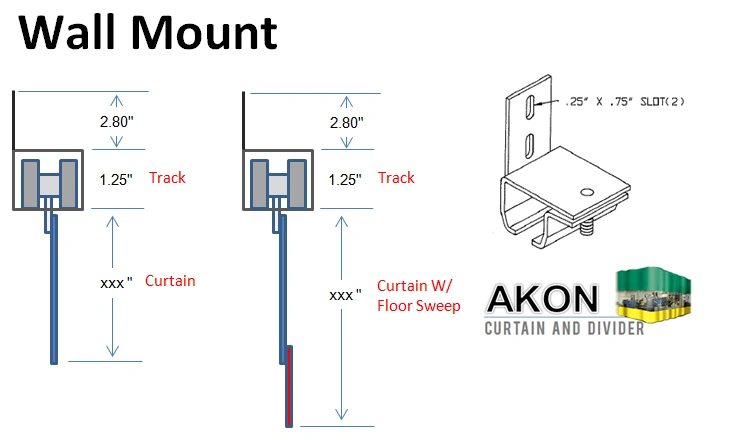

Wall Mount Trolley
This curtain track mount is designed for mounting the track next to a vertical wall or stud. This can be parallel to the wall, or perpendicular.

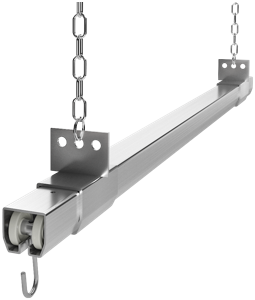

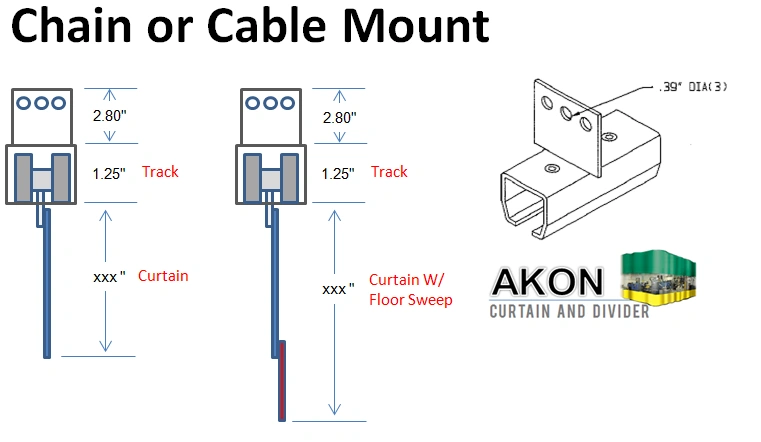

Chain or Cable Mount Trolley
Like the threaded rod, a chain supported curtain track is also good for spanning large distances. Both chain or cable can be used to hold up the track.

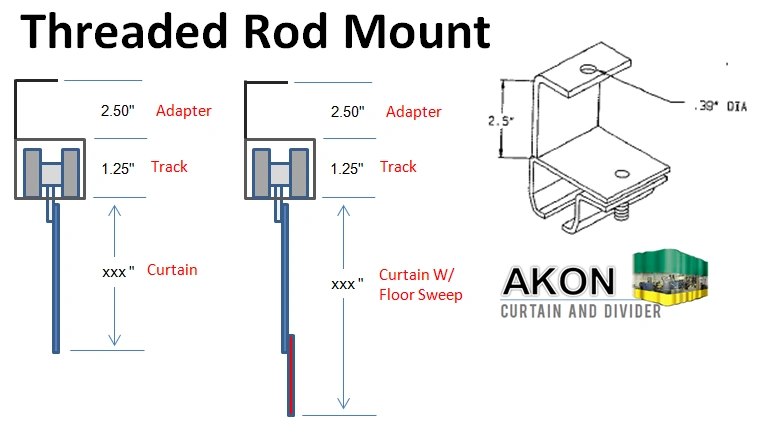

Threaded Rod Mount Trolley
If the distance between the anchor points above is higher than where you want the curtain track, then a threaded rod mount might work well. Steel rods support the track and span the distance between the track and the ceiling.

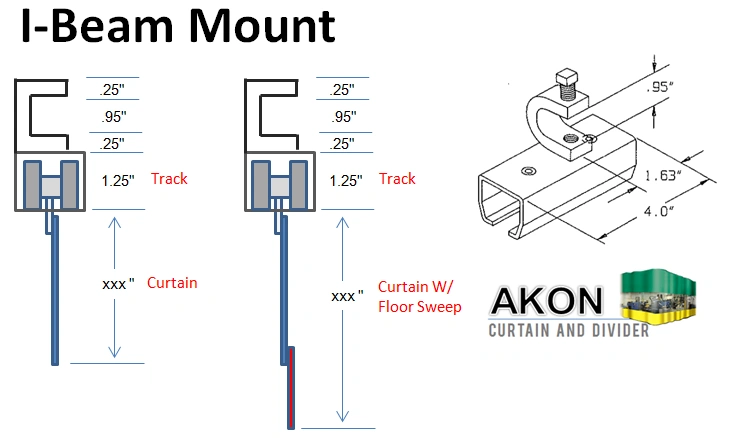

I-Beam Mount Trolley
When connecting to a truss, I-Beam or any other horizontal steel support this style of mount works best. Once connected, you simply tighten down the set screw.
Radius Corners

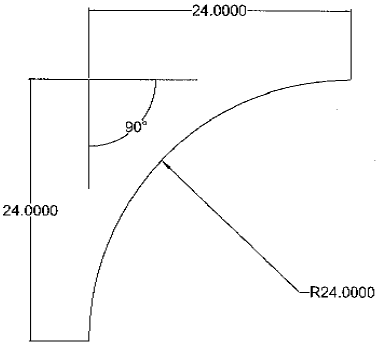

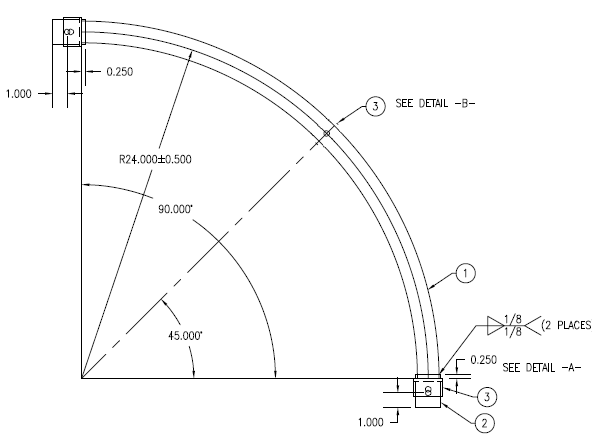

Standard 90 Degree Radius Corner
Components

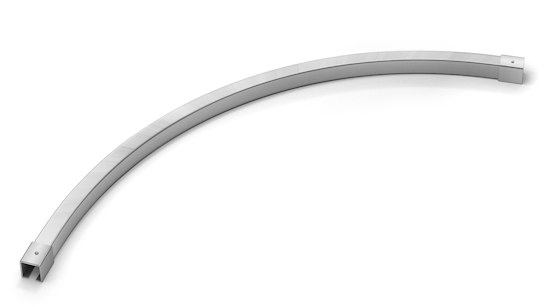

Radius Corner

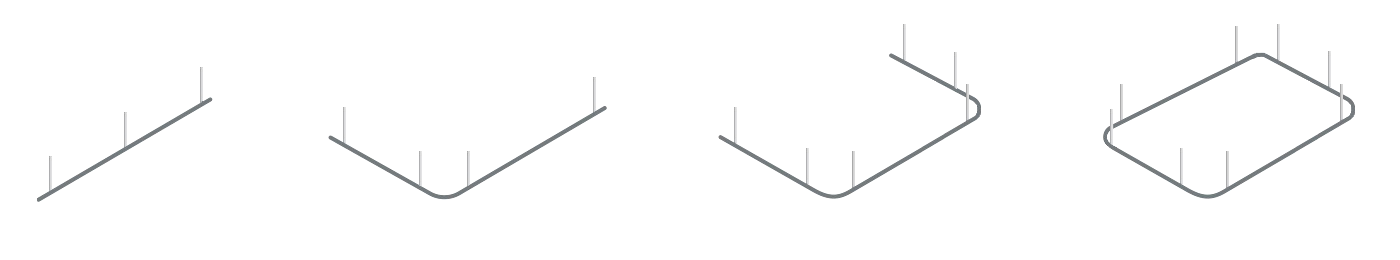

By using a 90 degree radius corner you can go around obstructions or make shapes. Just like the other overhead trolley components, the 60cm radius corner quickly attaches and detaches as needed. Use 1 radius for an L-Shape design, 2 radius corners for a C-Shape and 4 radius corners for a complete enclosure.
Hardware With Curtains
Below you will see several different track supports. You can use these dimensions to properly size your curtain height. As a general rule we subtract 7cm from your opening space to keep the curtain just off the floor.
Common Questions
Do you have 2d Autocad / DWG / CAD drawings of the hardware?
We actually don't release CAD drawings due to proprietary information but we do have PDF dimensional drawings on most components that are readily available. If you can't find them on this page them please inquire with your sales person.
