OVERVIEW

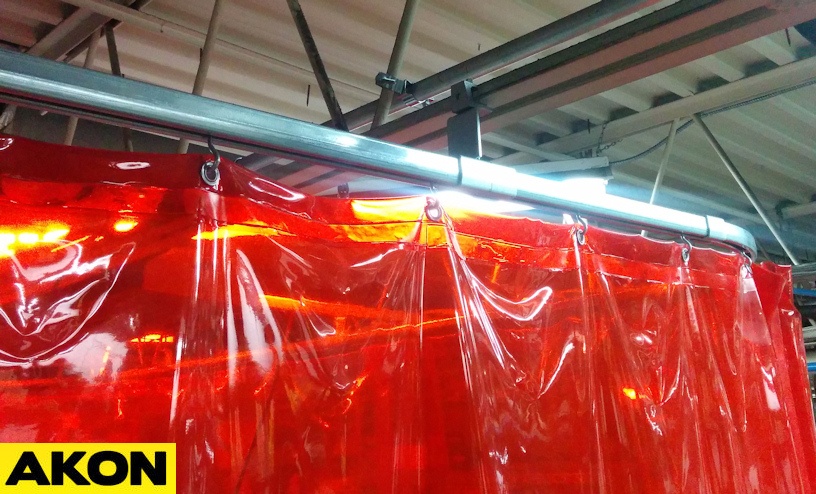

Welding Curtain Track with roller hooks allows you to roll the welding curtains side to side which allows maximum access to both sides of your welding area. The heavy duty curtain track is modular in design in that it comes in 1.8m, 2.4m and 3m lengths that easily bolt together.
Flexibility in Design
Welding Curtain Track
Akon can supply several different types of welding curtain track mounts to hang your welding curtains (See Below). These tracks are made from strong 16 gauge galvanized steel with a lifetime warranty. The heavy duty curtain tracks come in 1.8m, 2.4m and 3m lengths which splice together to form any length. This track utilizes radius corners to form enclosures or floor plates to be free-standing.
Industrial Curtain Hooks
The roller hooks allow the welding curtain to easily roll from side-to-side with minimal friction. These industrial curtain hooks come in two styles which are Nylon or Steel wheels with ball bearings. Nylon Rollers have a 18kg capacity while the steel rollers have a 34kg capacity. The steel wheels are utilized for very heavy curtains. They are spaced every 30cm in the track.
Curtain Track Supports
Depending on your needs, you can choose from many different track supports. The track supports are what holds the curtain track up. These supports clamp/bolt onto the straight track and are spaced about every 5’ to 8’ depending on your welding curtain weight. See the different styles below.
Curtain Track Corners
Almost any configuration is possible with the use of the 90-degree radius corners. These 24” radius corners allow the curtain to roll from one side to the other with ease. Hard 90 degree corners are also available.
Track Support Options
Ceiling Mount
This mounting style works best when you want to mount the welding curtain directly to your ceiling.
Wall Mount
This welding curtain track mount style is ideal when the curtain will attach to a vertical surface, such as a wall or wooden trusses.
Chain or Cable Mount
This mounting style works best when the curtain will hang down from a tall ceiling or when you need to get below obstructions.
Threaded Rod Mount
Like the chain or cable mounts, the threaded rod can be used to hang below obstructions or to drop down from tall ceilings. Note: Anchors for your all thread rods can be found here.
I-Beam Mount
This mounting style works best when attaching to I-Beams or the trusses of the roof. Set screws are used to clamp down the mount.
Free Standing Mount
When hanging your curtain track from above is not possible then you can support it from the floor up so you can have full access above.

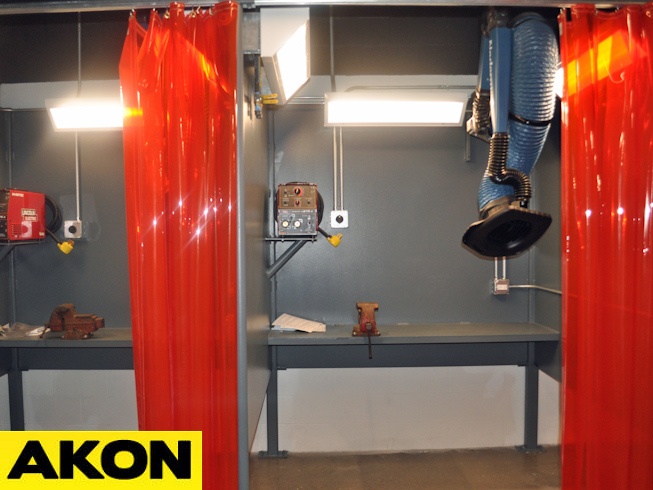

Photo Gallery
What is the curtain track constructed from?
The curtain tracks are constructed from either galvanized steel or stainless steel. They both resist rusting however the stainless steel is better suited for ocean side use, chemical wash down applications and certain food grade application. Stainless steel hardware is about 3 to 4 times the cost of the galvanized hardware and looks almost exactly the same.
How thick is the curtain track?
The standard curtain track is 16-gauge thickness. (Note 16 gauge = 1.61 mm) as shown in the image above. We also offer the same track in 12-gauge thickness (2.75 mm). However, this is often overkill for hanging curtains. The 12-gauge would be ideal for heavier loads where the track is being used to hold products, plates, tools, etc. If you want a quote on the heavier 12-gauge, simply ask your salesperson to update your quote.
