OVERVIEW

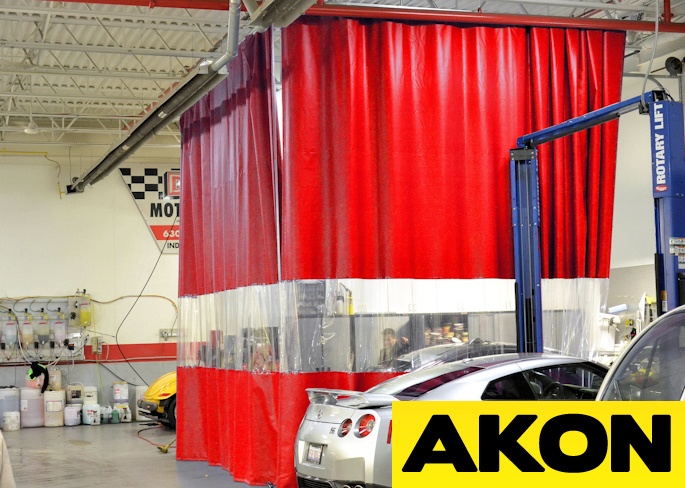

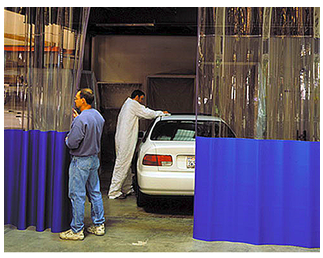

Maximize your floor space and contain paint and water spray with AKON paint spray booth curtains. The auto body curtains are the ideal solution for prep stations and industrial customers all around the country. Once installed, the curtains create work stations or work stalls that will contain sparks, paint, water over-spray, aluminum dust, steel dust and most chemical sprays.

Build Online Now

Create Work Zones In Your Shop

Quick To Deploy And Store

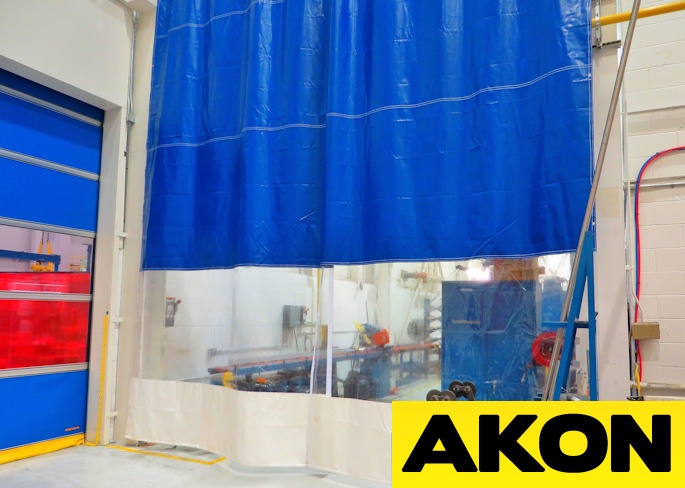

Power Washing Containment

The Leader In Spray Booth Curtains

Made to Order Painting Curtains

Ideal Applications

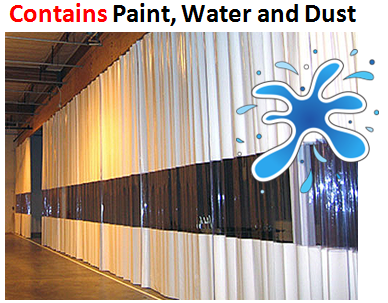

Paint prep station curtains
Prep booth curtains
Retractable paint booths

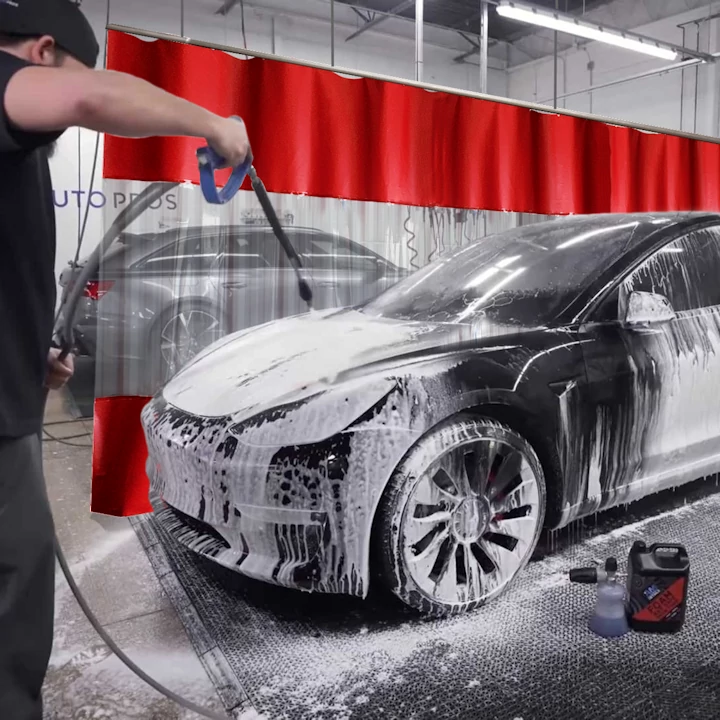

Detailing Wash Bays
Under Coat Bays
Grinding and Sanding Bays
Under Coating Curtains

Benefits

Less expensive than rigid walls like drywall and panels
Allow different work processes alongside each other with work cells
Improve air quality and worker conditions
Easily roll the curtains out of the way when not in use
The spray paint curtains meet all fire codes and regulations
Quick to install and take down and move if necessary
Five year warranty on the curtains
And a lifetime warranty on track hardware

Key Features

18 oz coated vinyl material is standard
16 gauge galvanized steel hardware which resists rusting
Rolling curtain hooks allow for Easy Roll movement
Reinforcement on edges for additional strength
Vinyl is reinforced with polyester scrim for longevity

Designed For Speed and Flexibility

Common Layouts

Curtains for paint booths or for any of the other applications mentioned above, can be laid out in several different configurations. They can be single sided, double sided, triple sided or four sided to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it.

Optional Components

Floor anchors to secure the painting divider curtain to the floor
Many custom colors to choose from to match your facility
Clear vision panels allow line of sight through curtains
Chain weight pocket ensures curtain will not blow around

Installation

Installing the paint booth curtain tracks is quick and very easy. Once the curtains arrive, simply unbox them and follow our simple directions. You will find that the track hardware bolts together in a modular fashion and then the roller hooks are inserted. Once the track is assembled and hung, you can now easily attach the spray painting curtains via the grommets located at the top of the curtain. Quick and Easy!

Maintaining The Curtains

The paint spray curtains are made from a slick material much like your shower curtains. The material can be easily wiped off when it becomes dusty and washed down when it becomes dirty. If the paint shop curtains become really dirty you can wash them down further with a cleaning agent. The paint curtain walls material is also mildew-proof and resistant to most chemicals. In addition, if they become torn from a sharp object we offer clear patch tape to repair the rip.

Aluminum Dust

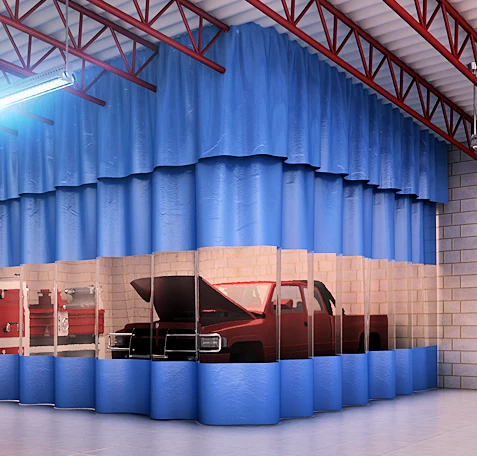

Aluminum dust is now part of new car frames and dealing with that dust is now a critical consideration for auto-body shops. The processing of these aluminum body cars and trucks requires a completely sealed off area. Our aluminum repair enclosure curtains will divide these work areas where grinding is taking place from the rest of the shop.

Filter Panels

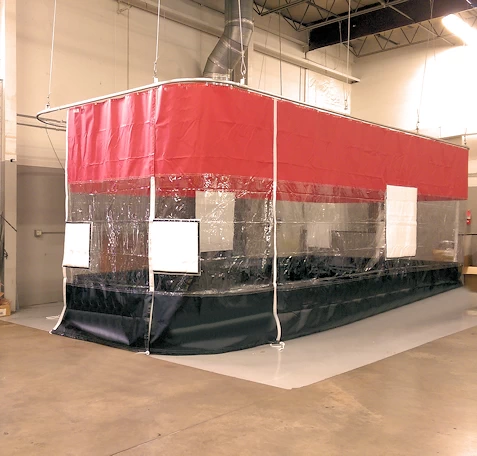

The AKON body shop curtains can also feature filter panels in sizes of 4′ x 4′ or 4′ x 2′ to allow for negative pressure generated inside of the curtain enclosure due to ventilation systems. These replaceable paint filters Velcro onto the curtain and can be replaced if they become too clogged to function.

Photo Gallery

Hardware Curtains Colors Accessories Benefits How to Measure

Hardware

Curtain Track

16 gauge galvanized steel tracks
Nylon roller hooks for easy opening
6 mounting styles to connect to various structures
Free standing hardware for up to 20' in height

Static Mount Hardware

Industrial Curtain Hanging Options

Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
Grommets Only - You can then use many DIY methods to hang the curtains.
Beam Clamps - Clamps onto the flange of beams, joists and purlins.

Curtains

Opaque Curtains - 13oz, 18oz, 22oz

Vinyl coated polyester reinforced with scrim
NFPA fire retardant, CFM fire retardant
18oz and 22oz are outdoor rated
Finished edges for clean, crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as -25° F to 160° F
All colors are the same price
13oz = .016″ thick, 1.44 oz. per square foot
18oz = .020″ thick, 2.0 oz. per square foot (Most Common)
22oz = .024″ thick, 2.44 oz. per square foot

Clear Curtains - 20mil and 40mil

Clear double polished PVC
NFPA fire retardant, CFM fire retardant
Outdoor rated
Finished edges for clean crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as 10° F to 140° F
20 mil = 20mil thick, 1.98 oz. per square foot (Most Common)
40 mil = 40mil thick, 3.95 oz. per square foot

Tinted Curtains - 14mil and 40mil

Ideal for welding applications
Blocks most UV radiation for welding
NFPA fire retardant, CFM fire retardant
40mil is outdoor rated
Finished edges for clean crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as 10° F to to 140° F
14 mil = 14mil thick, 1.44 oz. per square foot (Most Common)
40 mil = 40mil thick, 3.95 oz. per square foot

Colors

Accessories

Curtain Features

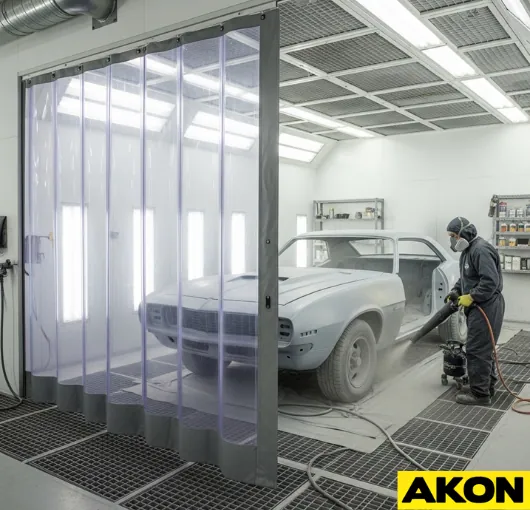

Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. Standard vision panels
are 54" in height but can be made to any size.

Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the roof's slope.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors, and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.

bottom curtain anchor

Anchor Straps

Velcro straps hold your curtain in place for
a light breeze or power washing. These
anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 4'.

Seal Velcro

Seal Velcro, also known as adhesive Velcro, sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.

Chain Weights

If you have a slight breeze or are power washing
near the curtain, then we can add a galvanized
3/16" chain weight to the bottom of the curtain.

Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.

Magnets

Seal magnets are an ideal way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.

Entry Options

Sewn-In Strip Doors

Strip doors that are sewn into the curtain are
Ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.

Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.

Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy-duty doors can
take a lot of abuse from carts, forklifts, or
heavy foot traffic. View Styles

Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements
and size. View Styles

Benefits

Key Benefits

Less expensive than rigid walls
Can be taken down quickly when not needed
Can be re-purposed in other areas
Ability to purchase more curtains and attach to existing curtains
Divide work areas quickly
Industrial curtains improve worker safety
Quick to roll out of way when not in use
Easy to clean with slick surface of Vinyl
Contain air migration, odors, dust, over-spray
Lifetime warranty on all hardware and 5 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

Measure the distance that you are trying to cover
- We will generally add 5% to this dimension to give your curtain proper drape.
- When you receive your quote, the hardware width will be the actual width.

Height

Measure the distance from the floor to the mounting point
- We will subtract 3" to account for the hardware to keep your curtain just off of the ground.
  - If you want the floor sweep option, we also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.
  - If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope. More Info On Here On Slope Ceilings

Need More Help? Watch This

Common Questions

What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

Can the track be cut to size on site?
Yes, the track is made to be field cut on site using a hack saw or Sawzall.

How much width does the radius corner add to the length?

The radius corner is 24” diameter. The radius corner will add 2 feet to each dimension.
For example, if you have 120” of curtain track then a radius corner will be make the overall length of side “A” 120”+24”=144”

How does the track go together?
The track is modular in design and will arrive in pieces that have a simple bolt together design.

How close together do I need the track supports?
The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.

Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.

How hard is it to install the industrial curtain track?
It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.

Will the track rust? Can it be used in wet environments?
The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
