Industrial Wash Bay Curtains

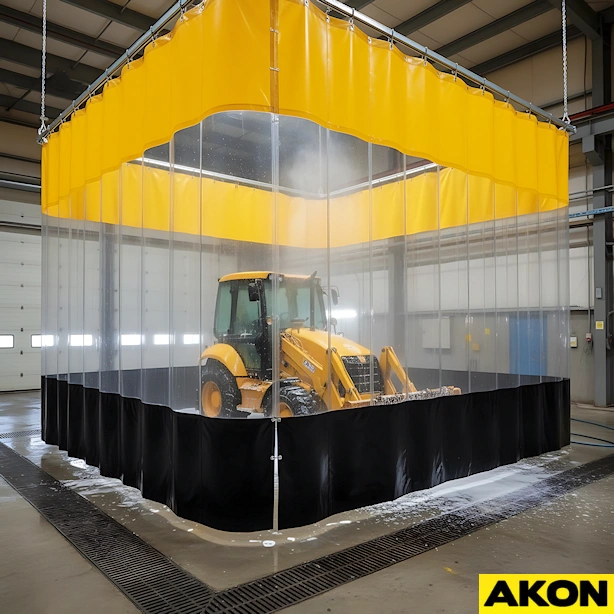

industrial wash bay curtain enclosures

Industrial wash bay curtains are designed to contain overspray, water, and debris in vehicle and equipment wash areas. Built from heavy-duty vinyl with optional clear vision panels, they provide a cost-effective alternative to fixed walls while maintaining durability and compliance with safety standards.

  • Contain overspray, water & debris
  • Save up to 60% vs permanent walls
  • Heavy-duty, fire-retardant vinyl
  • Custom sizes with easy slide access
Build Now

Designed For Speed and Flexibility

industrial-wash-bay-curtains-vs-fixed-walls (1)

Key Benefits

  • Contain water, overspray, and debris during power washing

  • Save up to 60% compared to permanent walls

  • Available in 18 oz vinyl and 20 mil clear vision panels

  • Fire retardant (meets NFPA 701 standards)

  • Easy to install, slide open when not in use

  • Backed by 5-year curtain warranty and lifetime hardware warranty

  • Price starting at $450
Build Online Now

Keep The Spray At Bay

Easy Install

Industrial wash bay curtains come with grommets at the top making hanging the curtains quick and easy with or without the curtain track.

 Inexpensive

Industrial wash down curtains are about 1/3rd of the cost of other separation methods such as rigid walls systems and are easy to store.

Separate Workers

Industrial was down curtain walls are ideal for separating workers for welding, washing, packaging and many other operations.

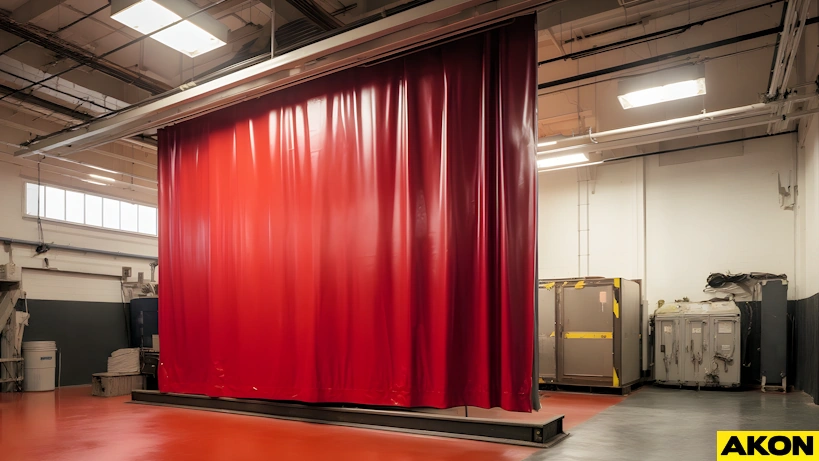

Guard From Spray

Industrial wash curtains are quick to deploy which will keep your non-wash down areas clean and dry and away from bystanders.

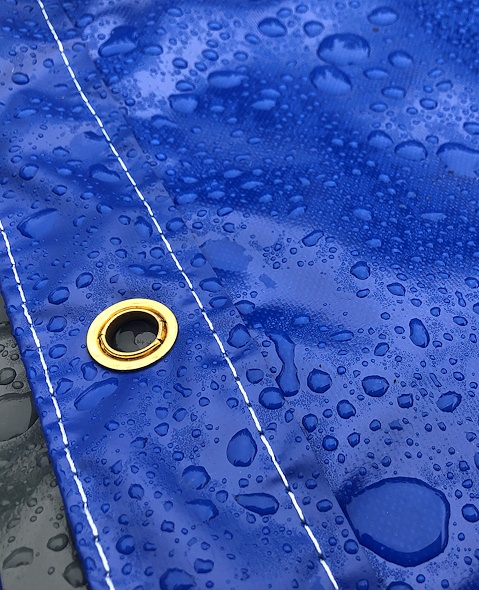

Waterproof Material

18oz vinyl

18 oz Reinforced Vinyl (standard)

20mil vinyl

20 mil Clear PVC For Clarity

18oz color options

Available in Multiple Colours

strong 18oz material

Strong Material That Lasts

Easy Rolling Curtain Track

sound panel curtain track hardware
  • Smooth Glide – Curtains roll open and close with ease.
  • Durable Track – Heavy-duty steel for long-lasting use.
  • Flexible Mounting – Ceiling, wall, or chain-hung options.
  • Quick Setup – Fast installation, minimal tools needed.
  • Low Maintenance – Reliable performance with little upkeep.
Build Online Now

Multiple Track Support Options

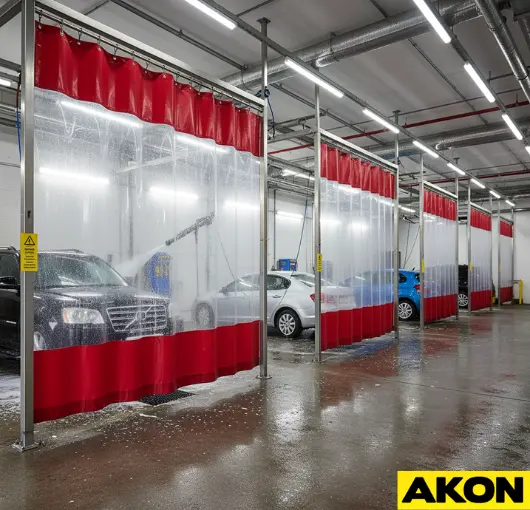

industrial-wash-curtain-system

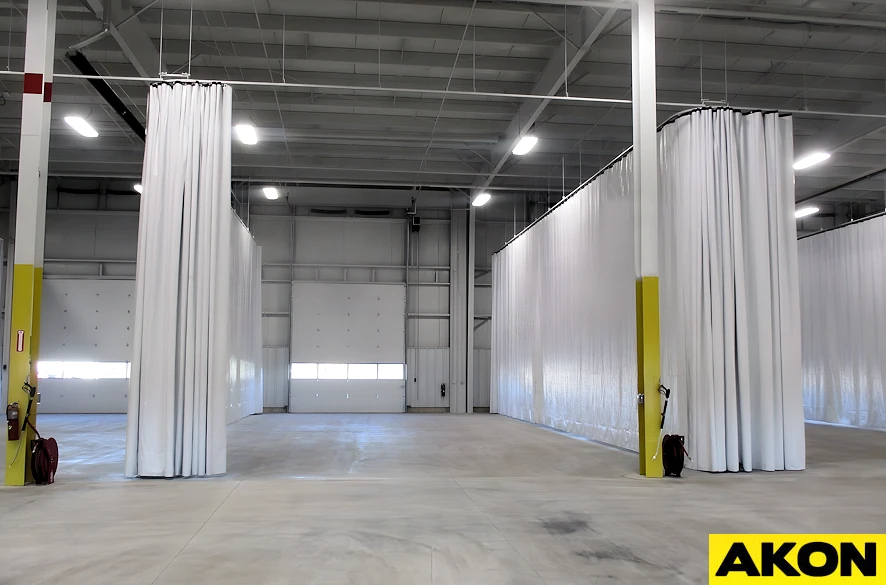

Multiple curtains can connect to cover larger bays

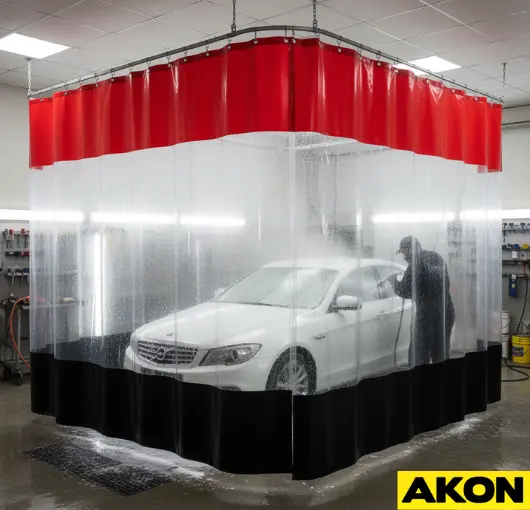

overspray-containment-wash-bay-curtains

Custom heights and widths available

Applications of Industrial Wash Bay Curtains

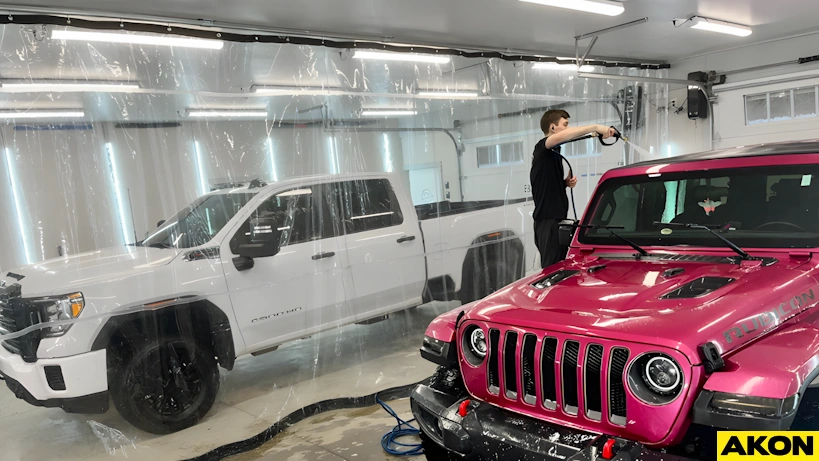

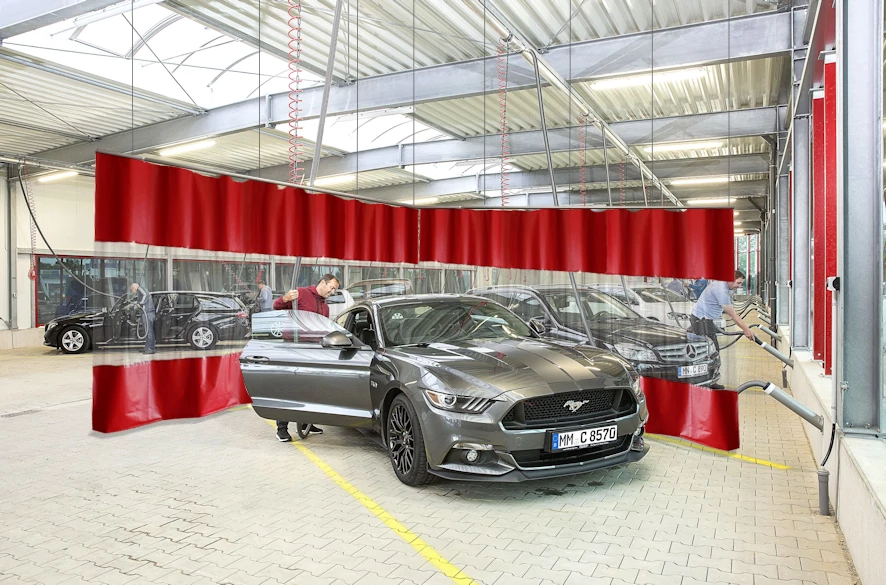

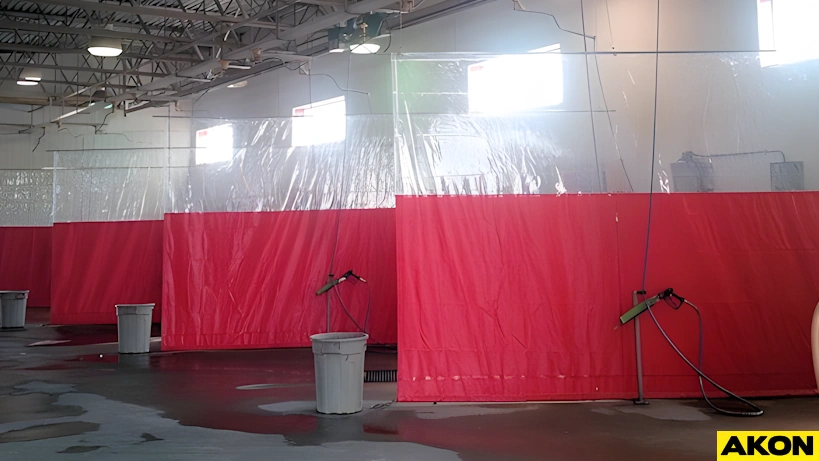

Car & Truck Wash Bays

Ideal for car dealerships, truck fleets, and service centers where water overspray must be contained.

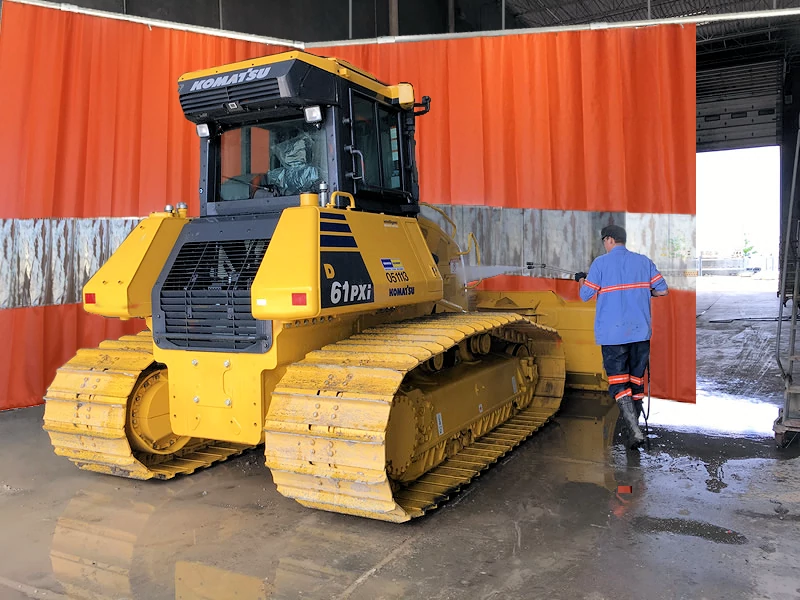

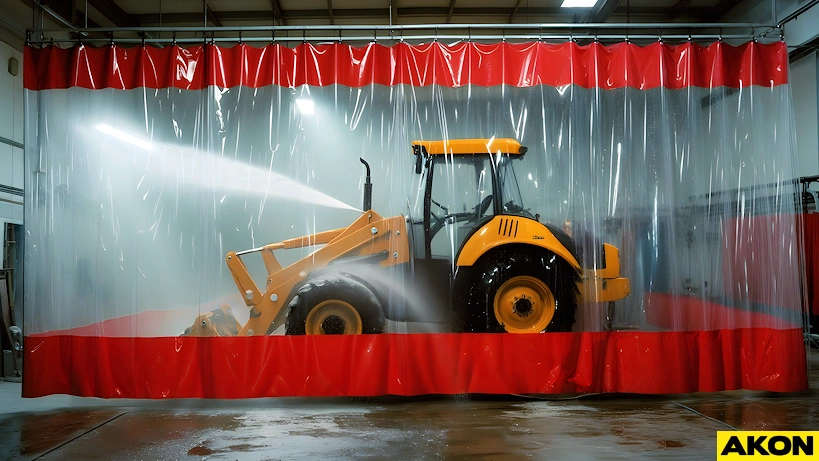

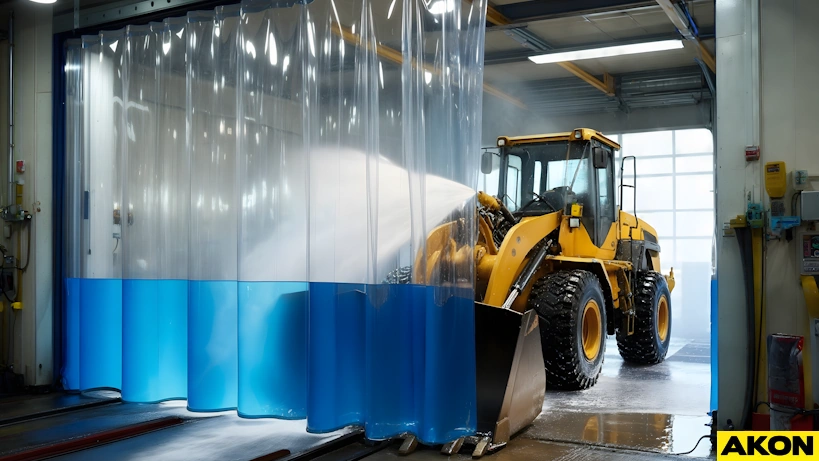

Heavy Equipment Washdown Areas

Contain water and debris when cleaning construction machinery, minimizing mess and downtime.

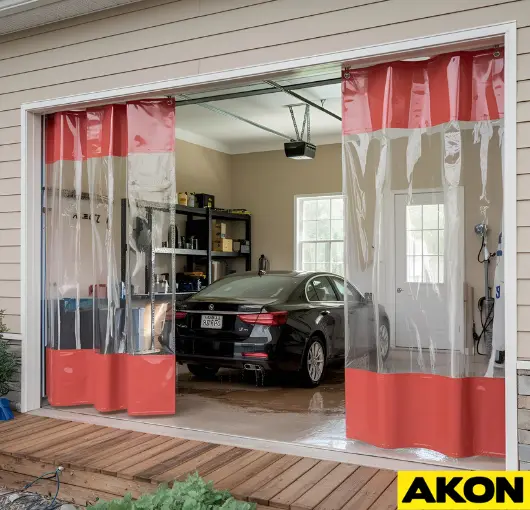

auto-repair-wash-down-curtains

Maintenance Garages

Flexible vinyl partitions separate service bays to reduce overspray and improve safety and organization.

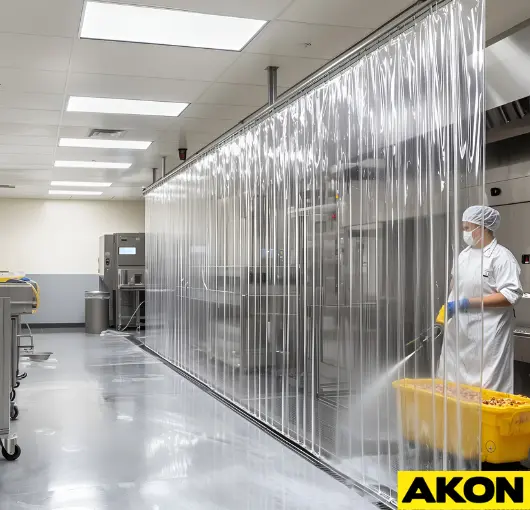

usda-approved-wash-bay-curtains

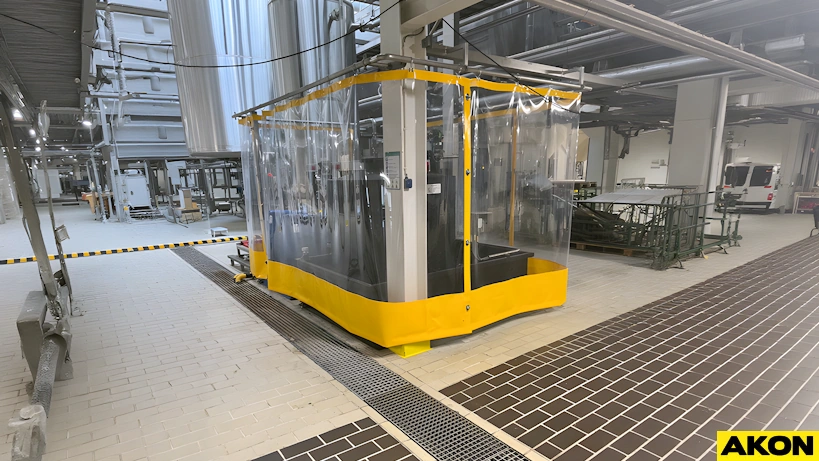

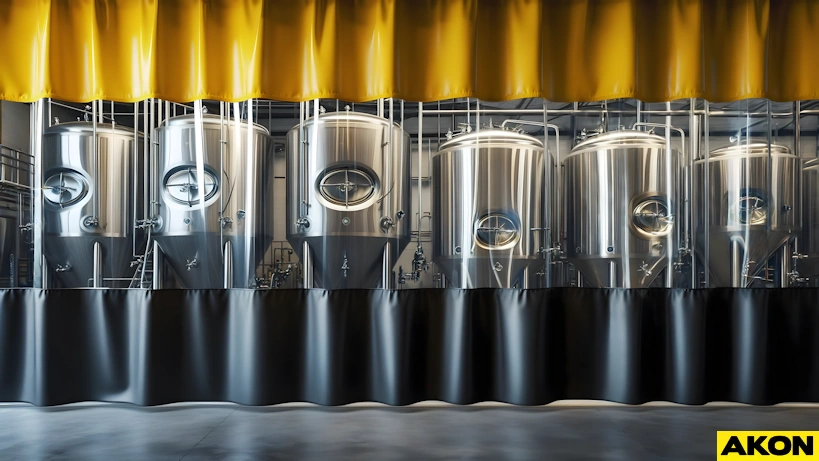

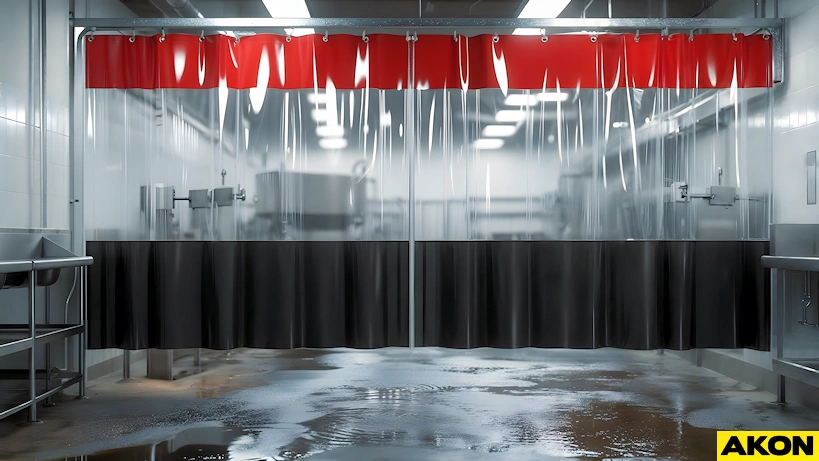

Manufacturing & Food Processing

For food processing facilities, see our USDA Grade Wash Down Curtains for fully compliant sanitary solutions.

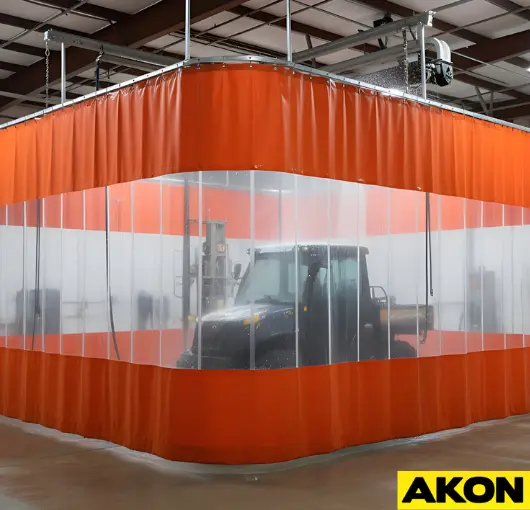

maintenance-garage-wash-bay-curtains

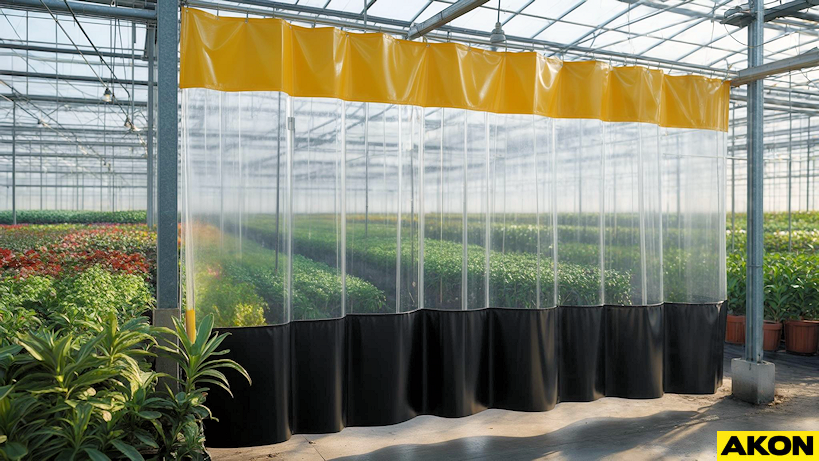

Agricultural Vehicle Cleaning

Protect surrounding equipment and reduce cleanup in farm wash zones.

Build Online Now

How to Order

wash-bay-curtain-layouts
  • Use our Build Online Tool to customise size, colour, and options.
  • Request a free quote with guaranteed response within 24 hours.
  • Fast lead times and worldwide shipping available
Get a Free Quote

Frequently Asked Questions About Industrial Wash Bay Curtains

What are industrial wash bay curtains?

They’re heavy-duty vinyl partitions that contain overspray, water, and debris in vehicle or equipment wash areas. Compared to fixed walls, they install quickly, cost less, and slide open when not in use. Options include 18 oz vinyl panels and 20 mil clear PVC vision panels for visibility.

How do they compare to permanent walls?

They’re a flexible, cost-effective alternative. Curtains install faster, can be reconfigured or expanded later, and require less disruption. While walls are rigid and slow to modify, curtain systems use a track and roller for easy opening and closing and can grow with your facility’s needs.

What materials are available?

The standard panel is 18 oz reinforced vinyl for durability, abrasion resistance, and easy cleaning. For visibility, add 20 mil clear PVC vision panels. Both options are available in multiple colors and are designed for washdown environments where frequent cleaning and moisture containment are essential.

Are the curtains fire retardant?

Yes. Our vinyl materials are fire-retardant and suitable for industrial settings that require safety compliance. They’re engineered for washdown use and can be paired with accessories like floor sweeps and strip entrances to improve containment, safety, and day-to-day workflow in busy facilities.

How do the curtains open and close?

They slide on a heavy-duty aluminum track with smooth rollers, so one person can open or close a bay quickly. This makes it easy to contain cleaning activities during use and free up floor space when the wash area isn’t needed, improving overall operational flexibility.

Can I customize sizes for my bay?

Yes. Heights and widths are fully customizable, and multiple curtain sections can connect to cover larger wash bays. Provide your opening dimensions and any obstructions, and we’ll size the panels and track layout so the enclosure fits cleanly and performs reliably in daily use.

What mounting options do you offer?

Choose ceiling-mounted track for maximum clearance, wall-mounted track where overhead structure is limited, or a free-standing frame for locations without suitable supports. We’ll recommend hardware based on your building conditions and desired traffic flow through the wash area.

How do I improve containment at floor level?

Add a flexible floor sweep seal along the curtain bottom to reduce water escape and overspray. You can also include strip curtain entrances for walk-through access and use Velcro or magnetic joins to connect panels tightly where longer runs or corners are required.

Are the curtains easy to clean and maintain?

Yes. Rinse with water or use mild soap as needed; avoid abrasive cleaners on clear PVC to preserve clarity. Track and rollers require minimal maintenance—keep the path free of debris and inspect periodically to ensure smooth sliding and long-term reliability.

How do I order or get a quote?

You can use our online builder to select size, material, and options, or submit an RFQ for a tailored quote. Provide measurements, mounting preference, and any accessories you want included. We’ll respond quickly with pricing, lead time, and next-step guidance.

Photo Gallery

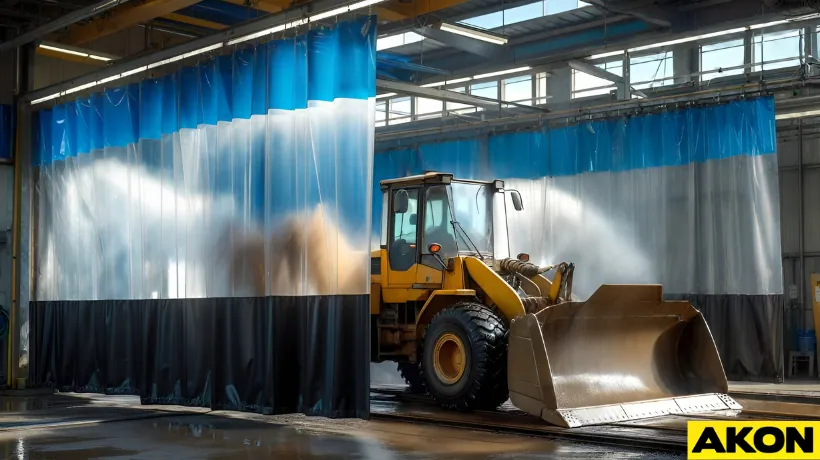

wash-bay-overspray-containment

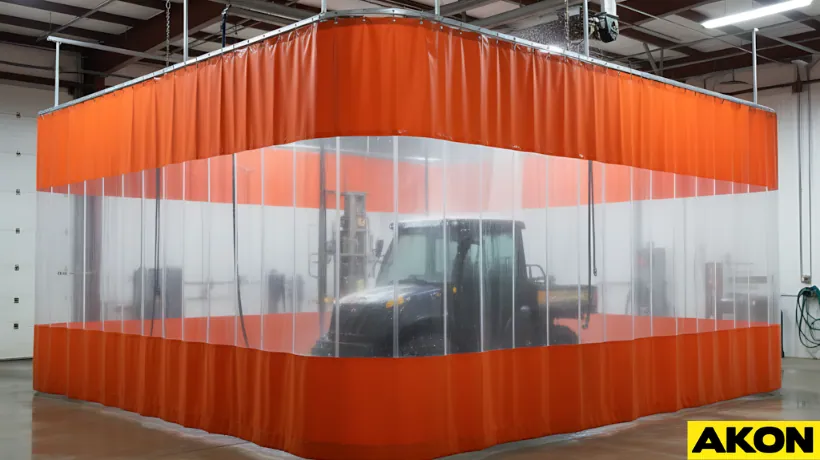

vehicle-and-truck-wash-bay-curtains

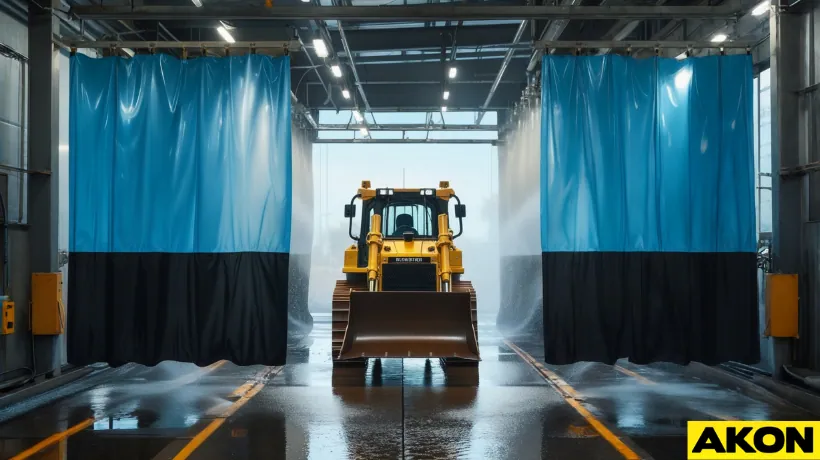

easy-install-grommet-wash-down-curtains

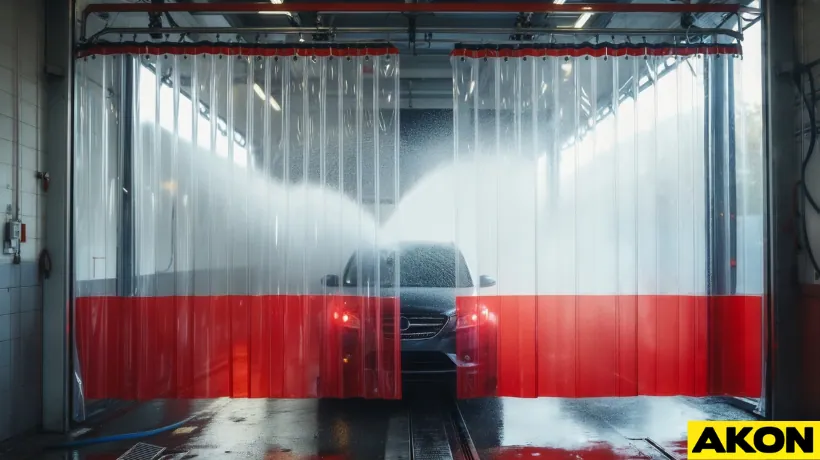

wash-bay-curtain-track-hardware

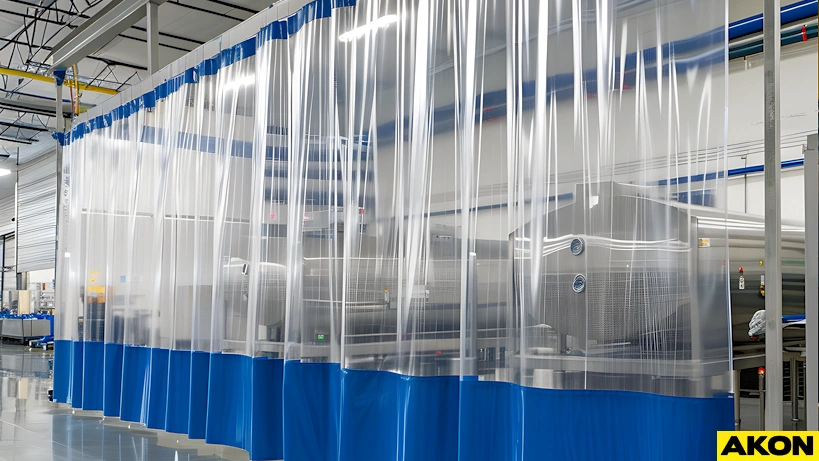

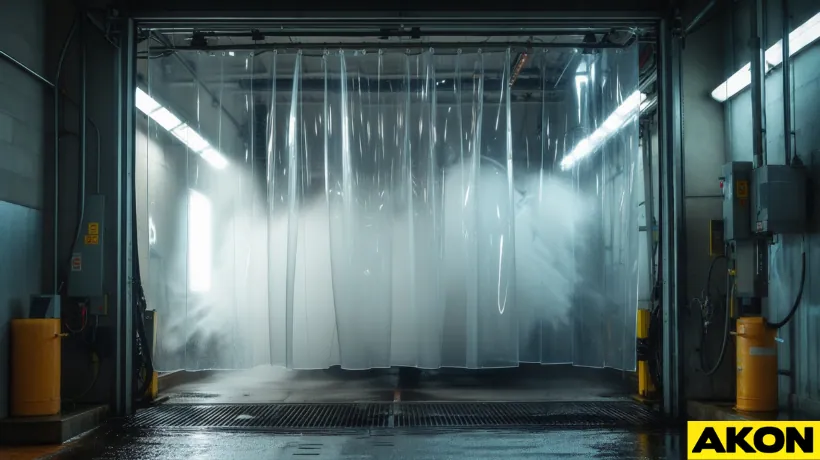

industrial-wash-bay-curtains

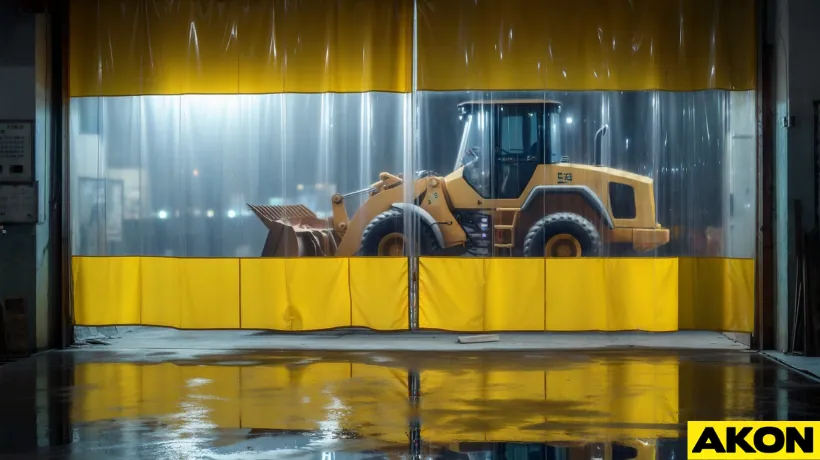

vehicle-wash-bay-curtains

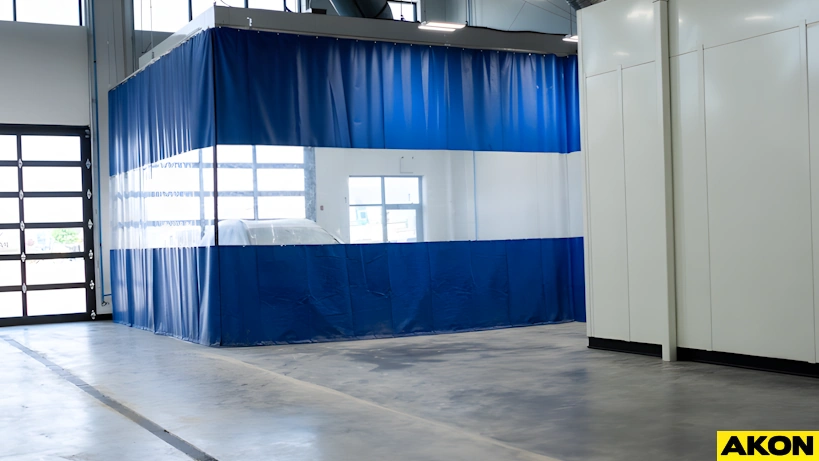

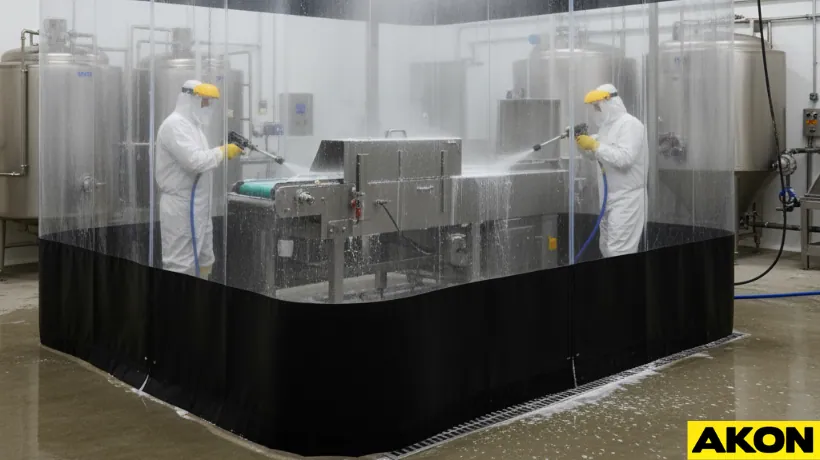

industrial-wash-bay-enclosure

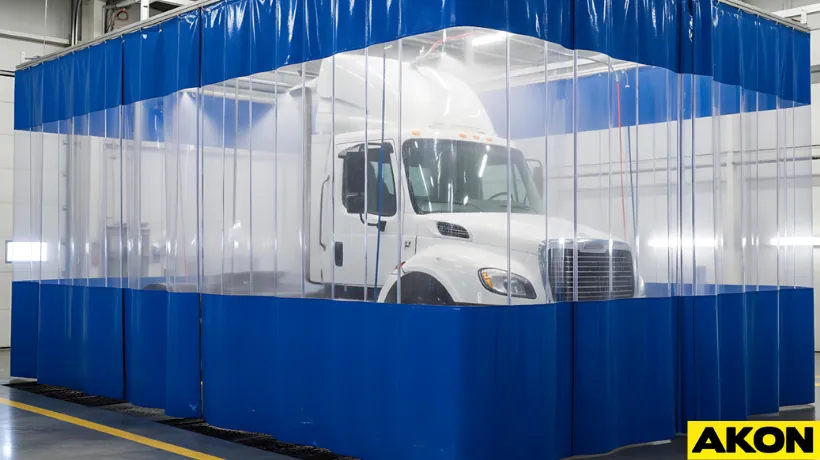

vehicle-wash-bay-curtains (2)

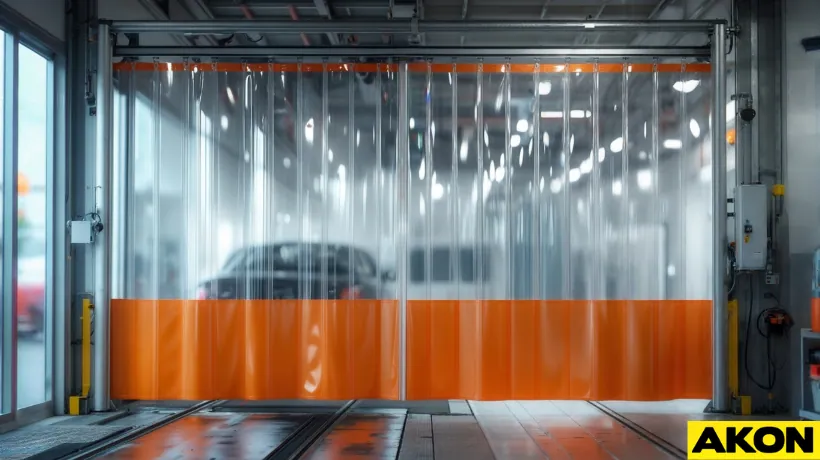

vehicle-wash-bay-curtains (3)

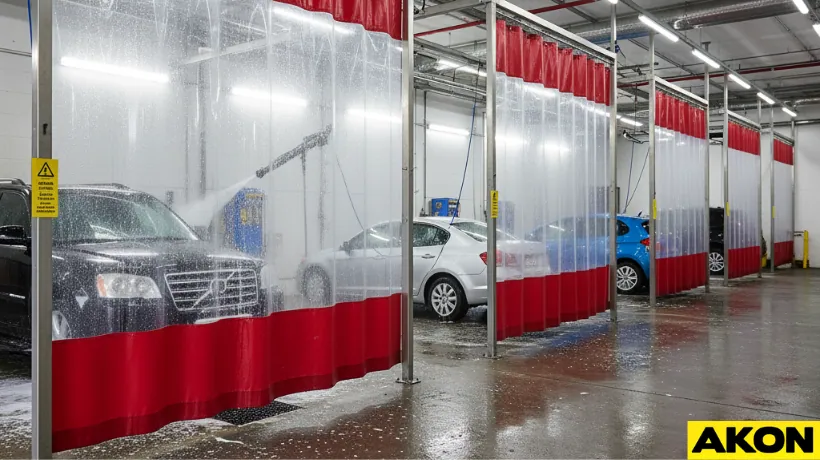

18oz-vinyl-industrial-curtains

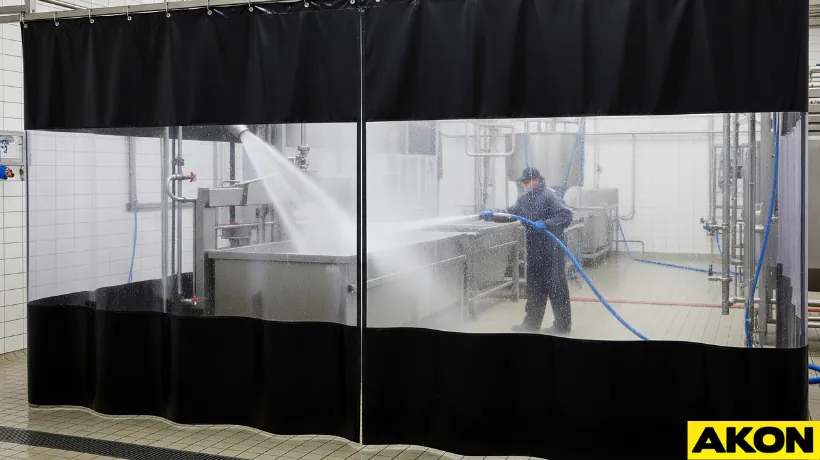

overspray-containment-wash-bay

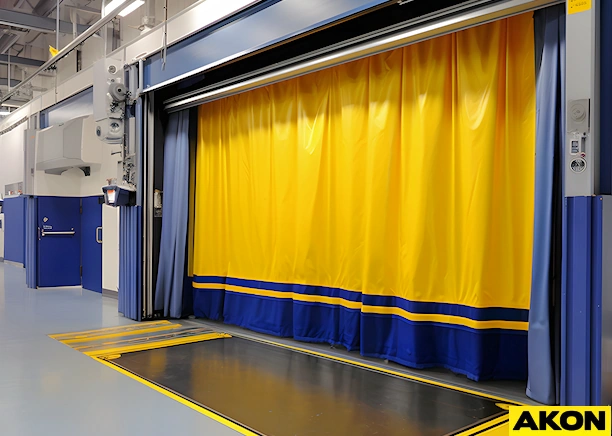

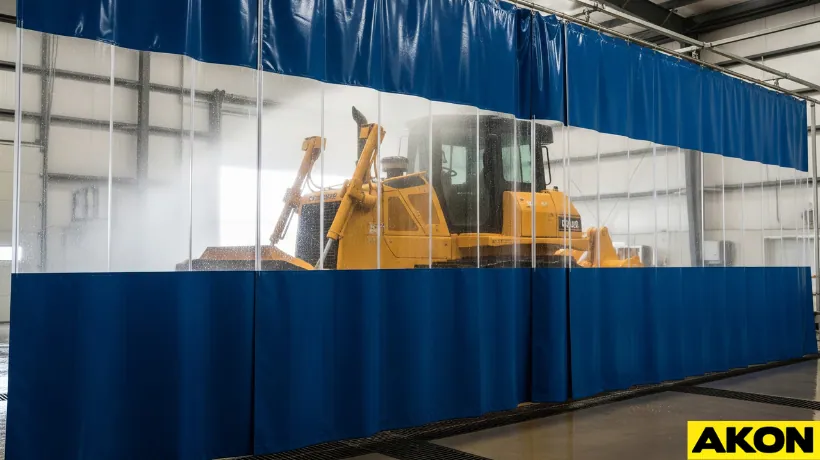

heavy-duty-wash-bay-divider

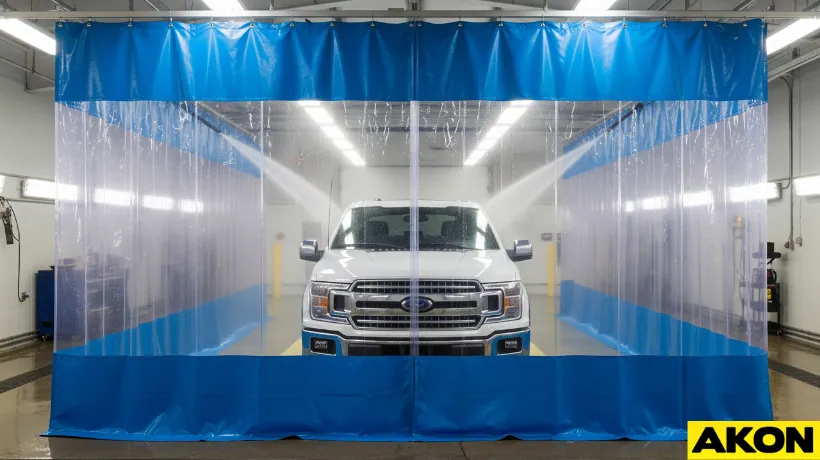

easy-install-wash-down-curtains
easy-install-wash-down-curtains (2) (2)
Hardware Curtains Colors Accessories Benefits How to Measure
Hardware

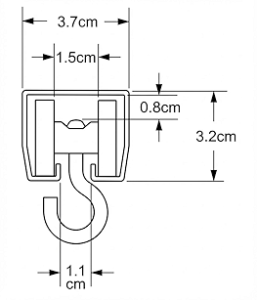

Curtain Track

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

Static Mount Hardware

Industrial Curtain Hanging Options

  • Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
  • Grommets Only - You can then use many DIY methods to hang the curtains.
  • Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Curtains

Opaque Curtains - 13oz, 18oz, 22oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant
  • 18oz and 22oz are outdoor rated
  • Finished edges for clean, crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as -25° F to 160° F
  • All colors are the same price
  • 13oz = .016″ thick, 1.44 oz. per square foot
  • 18oz = .020″ thick, 2.0 oz. per square foot (Most Common)
  • 22oz = .024″ thick, 2.44 oz. per square foot

Clear Curtains - 20mil and 40mil

  • Clear double polished PVC
  • NFPA fire retardant, CFM fire retardant
  • Outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to 140° F
  • 20 mil = 20mil thick, 1.98 oz. per square foot (Most Common)
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Tinted Curtains - 14mil and 40mil

  • Ideal for welding applications
  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant
  • 40mil is outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to to 140° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot (Most Common)
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Colors

18oz Vinyl

color-options-18oz

Warning: Please note that the colors in the video are only a representation.
On-site colors may differ slightly due to lighting conditions and the image
settings of your digital device. For exact color needs, please ask for a sample.



14mil Vinyl Tinted

tinted welding curtain colors

Accessories

Curtain Features



Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. Standard vision panels
are 54" in height but can be made to any size.



Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the roof's slope.



Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors, and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.



bottom curtain anchor

Anchor Straps

Velcro straps hold your curtain in place for
a light breeze or power washing. These
anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 4'.



Seal Velcro

Seal Velcro, also known as adhesive Velcro, sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.



Chain Weights

If you have a slight breeze or are power washing
near the curtain, then we can add a galvanized
3/16" chain weight to the bottom of the curtain.



Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.



Magnets

Seal magnets are an ideal way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.



Entry Options

Sewn-In Strip Doors

Strip doors that are sewn into the curtain are
Ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.



Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.



Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy-duty doors can
take a lot of abuse from carts, forklifts, or
heavy foot traffic. View Styles



Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements
and size. View Styles

Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purposed in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, over-spray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

  • Measure the distance that you are trying to cover
    • We will generally add 5% to this dimension to give your curtain proper drape.
    • When you receive your quote, the hardware width will be the actual width.

Height

  • Measure the distance from the floor to the mounting point
    • We will subtract 3" to account for the hardware to keep your curtain just off of the ground.
      • If you want the floor sweep option, we also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.
      • If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope. More Info On Here On Slope Ceilings



Need More Help? Watch This




Common Questions


What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

Spacing from Track



What are the dimensions of the track?



Can the track be cut to size on site?
Yes, the track is made to be field cut on site using a hack saw or Sawzall.



How much width does the radius corner add to the length?
The radius corner is 24” diameter. The radius corner will add 2 feet to each dimension.
For example, if you have 120” of curtain track then a radius corner will be make the overall length of side “A” 120”+24”=144”



How does the track go together?
The track is modular in design and will arrive in pieces that have a simple bolt together design.



How close together do I need the track supports?
The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.



Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.



How hard is it to install the industrial curtain track?
It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.



Will the track rust? Can it be used in wet environments?
The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

Build Yours Online

Build Now

Related Products

wash bay curtains

Wash Bay Curtains

prep station curtains

Prep Station Curtains

usda food processing curtains

USDA Curtains

portable wash down screens

Portable Wash Down Screens

chemical splash curtains

Chemical Splash Curtains

painting and sanding curtain enclosure

Paint and Sanding Station

decontamination curtains

Decontamination Curtains

View All Wash Down Curtains

Get In Touch!

+353 21 203 2051

Email Support

Ireland Headquarters
Cork, Ireland

Corporate Headquarters
Fernandina Beach, FL

Testimonials

People all over the world trust AKON Curtains to provide industrial curtain solutions. Our custom-made barriers improve safety, productivity, and cleanliness in places like factories and warehouses. With experienced help and quick turnaround times, AKON is the best company to work with for long-lasting, affordable solutions that will work in the UK and beyond.

When you see the name AKON Curtains, you know they are high quality. Our industrial curtains are made with high-quality materials and excellent craftsmanship so they can handle the roughest conditions. AKON gives you long-lasting performance you can rely, whether you need to enclose, separate, or protect something. We make sure your workspace stays efficient, safe, and professional by making things to exact specifications for UK industries.

We don't think that one size fits all at AKON Curtains. We don't use generic, off-the-shelf curtains; every one is handcrafted just for you. We make sure that each solution fits precisely, whether it's in terms of size, substance, or use. Get the performance, fit, and function your workspace needs, with the high-quality craftsmanship that sets us distinct.

About Us

AKON Curtains is a global supplier of industrial curtains and warehouse separation dividers. Our staff is trained to provide custom solutions, ensuring your cover or curtain project is a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Product Links

Outdoor Curtains

Outdoor Curtains

Resources

Tracking & Ordering

Rapid Quote
Order Your Quote
Track Your Order

Company

Home

Contact Us
About Us
Terms
Warranty
Privacy Statement
Mission Statement
