OVERVIEW

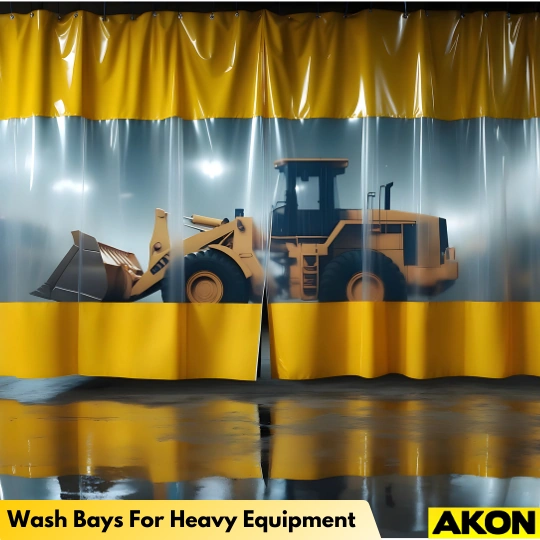

AKON's wash bays for heavy equipment are designed for heavier use in warehouses or garages. They will contain flying mud, water, and debris from wash down operations. The materials we use are durable and resistant to many chemicals. These curtain boots will prevent contamination and hazardous from escaping the area. Depending on your needs, you can customize them with specific sizes, colors, track mounts, and helpful features. Create your own heavy equipment wash bay design.

Heavy-Duty Wash Bay Applications

Pressure washing stores
Vehicle wash bays
Garage wash bays
Mining and construction
Ships, boats, and floating structures
Marinas and industrial ports
Sidewalks or parking lots
Commercial and military airports
Equipment washing in plants and industries
And for other industrial purposes

Build Online Now

Commercial Wash Bay

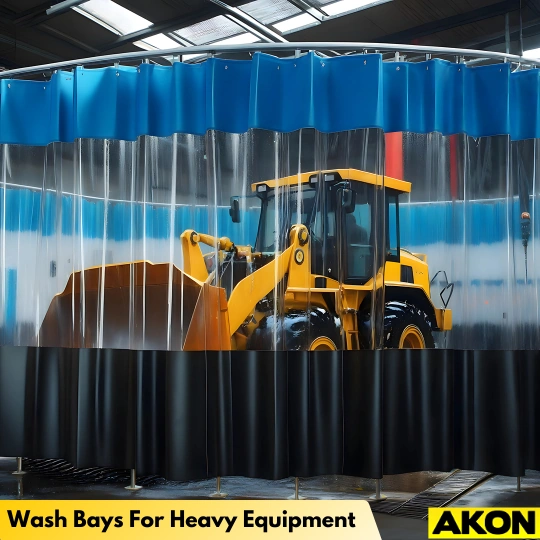

portable-wash-bay-curtain-for-large-equipment

Portable And Strong

Constructing a permanent wash bay is costly and pays off far into the future. There is no need for that when a portable curtain booth can do everything just as good while being cheaper and reusable elsewhere. The vinyl we use is think and made for heavy, non-stop industrial-use.

We design and produce custom wash bays for heavy equipment. They are great solutions for customers who need to set up an in-depth waste-processing system. The best part is we custom design these bays specifically for your facility. We will provide you with the necessary equipment to handle heavy-duty tasks.

Customizable Options

A straight of multi-sided layout
Heights and widths
Curtain tracks (static or with side-to-side movements)
Replaceable floor sweep at the bottom of the wash bay
Clear vision panels for better visibility along with custom curtain colors
Anchor straps, chain weights, and Velcro strips to keep the wash bay stable. They will prevent any wastewater or chemicals to spill below the wash bay; even in drafty areas

Custom Wash Bays For Heavy Equipment

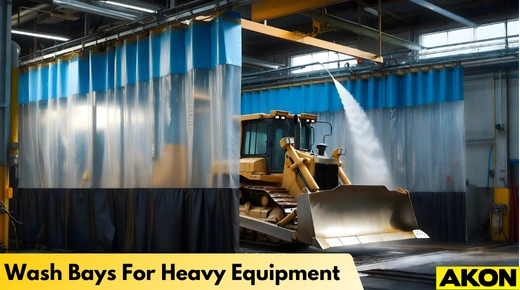

large-curtain-wash-bay-for-large-equipment

Save Money And Protect The Environment

The heavy-duty wash bays help clean equipment while disposing all the wastewater safely. Such water is often contaminated with deadly chemicals and posed a significant danger for the environment. By using a portable wash bay, you will prevent contamination from spilling into the outside environment. You will also save a lot of money because cleaning will be less costly. The waste water will be contained and easily discharged. These wash bays also help you meet regulations and preventing sanctions.

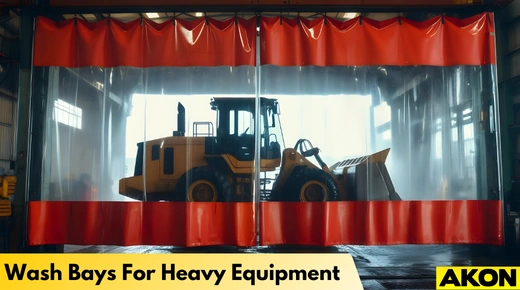

affordable-curtain-wash-bay-for-large-equipment

Large Enough For All Your Equipment

Quickly and efficiently clean any heavy equipment on-site. If you have to move, the portable wash bays are easy to take down and store. The bays can be designed large and have enough space for wash pads, pressure washers, recycling machines, the disposal system, and the equipment you want to clean. The curtain track is corrosion-resistant and will hold strong for years of use. No contaminants will ever escape the wash bay area as the vinyl is durable and resistant to commonly-used chemicals.

Heavy Equipment Wash Bay Design

Security

Contaminated water spills are a thing of the past. The wash bays are strong enough to prevent spills in power washing. Their unique layout allows you to separate your facility into rooms for specific tasks. By doing this, different areas will remain unaffected by whatever activities occur on the other side of the curtain. You will more easily organize and manage your floor space as well.

Features

18oz Vinyl reinforced with a polyester mesh scrim
Clear 20mil Vinyl vision panel for better vision
NFPA 701 & California Fire Marshall Standard
16 gauge galvanized steel track with strong resistance to almost every wash down chemical
Hemmed edges for a clean, finished look
Design a perfectly-fitting curtain layout
We provide a 5-year warranty on all curtains and a lifetime warranty on all hardware!

Benefits

Improved heating and sound control capabilities
Contain over-spray and paint spray
Control dust, dirt, debris, and dangerous chemicals while power washing
Greatly improve security and provide comfortable working conditions
Vinyl is slick and won’t stain
Easy to clean, move, or replace
They are inexpensive unlike fixed and hard walls

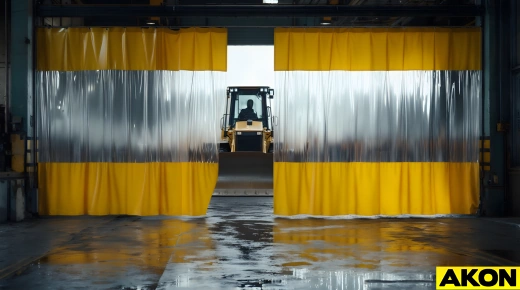

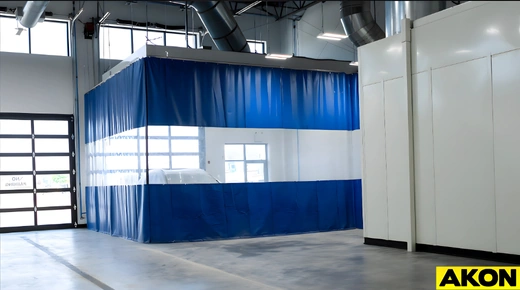

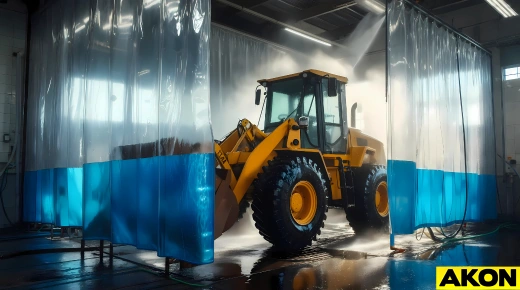

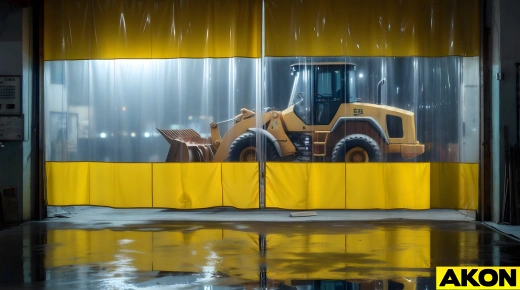

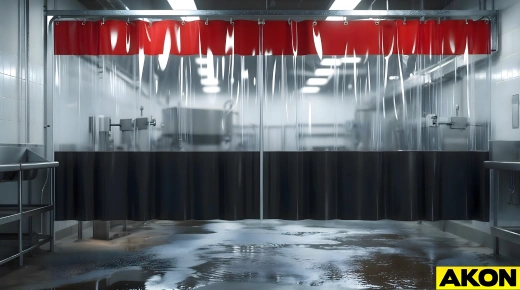

Photo Gallery

The Industry Leader In Heavy-Duty Wash Bays

Hardware Curtains Colors Accessories Benefits How to Measure

Hardware

Curtain Track

16 gauge galvanized steel tracks
Nylon roller hooks for easy opening
6 mounting styles to connect to various structures
Free standing hardware for up to 20' in height

Static Mount Hardware

Industrial Curtain Hanging Options

Aluminum Angle - Use with self tapping Tek screws to pinch the curtain to the angle.
Grommets Only - You can then use many DIY methods to hang the curtains.
Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Need more ideas? Check out our outdoor curtain anchoring guide.

Attention CA Residents: Prop 65 Warning

Curtains

Opaque Curtains - 18oz, 22oz

Vinyl coated polyester reinforced with scrim
NFPA fire retardant, CFM fire retardant
Finished edges for clean crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as -15° F to 160° F
All colors are the same price
18 oz = .020″ thick, 2.0 oz. per square foot
22 oz = .024″ thick, 2.44 oz. per square foot

Clear Curtains - 20mil and 40mil

Clear double polished PVC
NFPA fire retardant, CFM fire retardant
Finished edges for clean crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as 10° F to 140° F
20 mil = 20mil thick, 1.98 oz. per square foot
40 mil = 40mil thick, 3.95 oz. per square foot

Colors

Accessories

Curtain Features

Clear Vision Panels

Vision panels can be added to allow for a clear line
of site through the curtain. Standard vision panels
are 54" in height but can be made to any size.

Custom Shapes

Need to fill an area that has a peak or an odd shape.
We can do that for you. Just provide a hand sketch
of the design and we can make it.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain.

Bottom Pipe Pockets

Add a pocket at the bottom for a pipe to weight
down the outdoor curtain. Pipes are not supplied
but the pocket is no additional charge.

Chain Weights

For curtains that need to open but also have
some weight at the bottom we can add a chain
pocket at no additional cost. We can also supply
the galvanized 3/16" chain if needed.

Anchor Straps

Velcro straps hold your curtain in place if a
breeze is present. These anchors feature Velcro
straps that loop through a D-ring, which is
anchored into a hard surface floor. Typically
spaced every 4'. More anchoring ideas here.

Connecting Curtains / Entry

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.

Zipper Splits

A zipper can be added for quick entering and
exiting. Just like Velcro splits they are great
for rapid access into the curtained area.

Sewn In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
curtains without opening them.

Benefits

Key Benefits

Less expensive than rigid walls
Can be taken down quickly when not needed
Easy to store or pull back in the off season
Quick to roll out of way when not in use
Easy to clean with slick surface of Vinyl
Lifetime warranty on all hardware and 1 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of for your outdoor curtains. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete outdoor curtain enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

Measure the distance that you are trying to cover and then add 5% to that dimension and enter it into the width box.
TIP - The reason you want to add 5% is for proper drape of the curtain so it properly covers the span.

Height

Measure the distance from the floor to the above mounting point (from where you would attach the curtain track) and subtract 3 inches, and then input it into the height box.
TIP - If you are not using any hardware, then you don't need to subtract the 3"
TIP - If you want to engage the floor, then select the floor sweep option on this form.

Need More Help? Watch This

Common Questions

What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

Can the track be cut to size on site?
Yes, the track is made to be field cut on site using a hack saw or Sawzall.

How much width does the radius corner add to the length?

The radius corner is 24” diameter. The radius corner will add 2 feet to each dimension.
For example, if you have 120” of curtain track then a radius corner will be make the overall length of side “A” 120”+24”=144”

How does the track go together?
The track is modular in design and will arrive in pieces that have a simple bolt together design.

How close together do I need the track supports?
The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.

Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.

How hard is it to install the industrial curtain track?
It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.

Will the track rust? Can it be used in wet environments?
The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.
