Used For Welding and Ovens

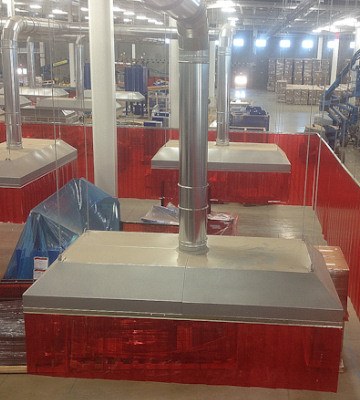

Exhaust Hood Welding Strips

Exhaust hoods in welding areas help keep harmful fumes from welding operations contained and funneled to the top and away from workers.

Build Now

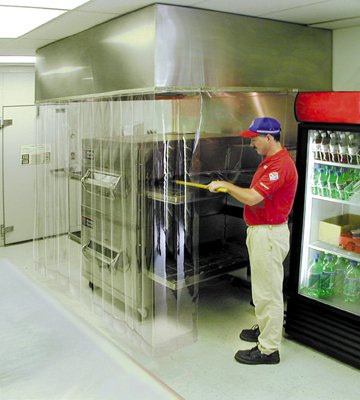

Oven Exhaust Hood Curtains

Most commonly used in restaurants for pizza ovens and but also in a variety of other baking ovens. The strips direct the heat away from the workers.

Build Now

Contain Fumes and Odors

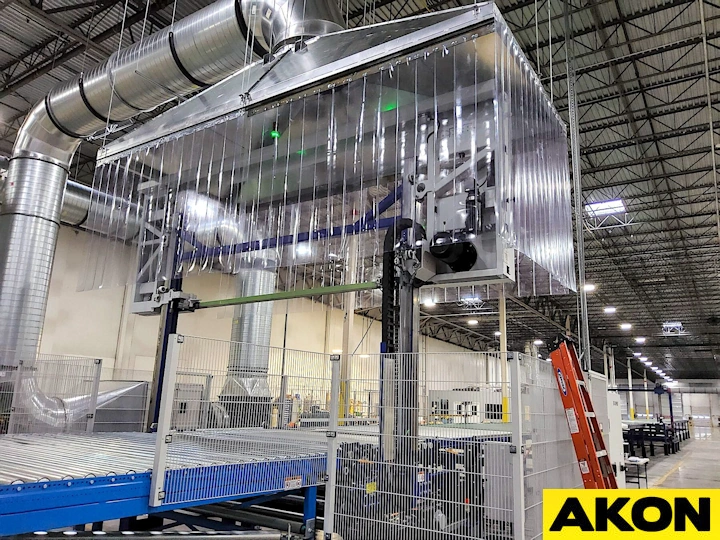

exhaust hood curtain for fumes industrial

Made To Order For All Hoods

Strips Come In Different Colors and Widths

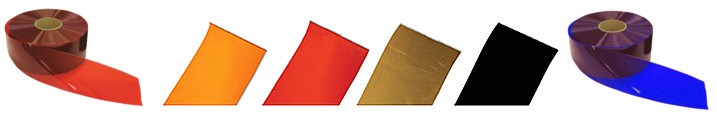

Weld Strip Colors

Welding strip colors vary based on customer preference. The amount of UV light blocked varies slightly from one color to another but all help reduce harmful UV rays. The darker the shade, the more UV light that it will block. Please remember, welding pvc strip curtains are not a substitute for welding helmets. They are made for indirect viewing of welding operations.

Tinted Bronze Weld
Tinted Aztec Red Weld
Tinted Blue Weld
Tinted Orange Weld
Tinted Bronze
Opaque Black
Opaque Blue
Opaque Green

PVC Strip Widths

Strips come in several different widths and thicknesses depending on the height of your opening and the type of traffic that will pass through it. The strip thickness is an important part of picking a strip for your PVC strip door so that entry and exit is quick and easy. The two most common sizes are below.

8" width x .080" thick (Most Common)
12" width x .120" thick

Material Overlap Hardware FAQ Ordering

Material

Description

AKON welding strip curtains for welding applications can shield onlookers and staff members from the hot debris and hazardous light produced during welding. With AKON welding strip curtains, you can safely be protected from incidental glances at welding operations without being exposed to harmful light wavelengths or UV rays.

Colors

Tinted Light Bronze | Medium Transparency
Tinted Light Green | Low Transparency
Tinted Red | Medium Transparency

Benefits

ISO 25980
Anti-UV
Temperature Range - Between -15 °C to 50 °C
UV Absorber - Strips will not discolor
Fire retardant to BS standards
Complies with EN1598, AWS F2.3 and ISO 25992
Eco friendly and its 100% Phthalate Free
2 Year warranty on manufacturing defects - Strips

High Temperature Ranges

All strips have a temperature max of 50 °C
If higher temperatures are needed, then use our line of Heat Rated Strip Curtains

Overlap

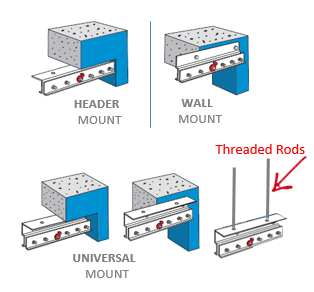

Hardware

Hook On Rails

Most popular mounting style
Strips have steel mounting plates attached

Quick Mount

Stud Mounts

Free-Standing Mount

Supported from the floor up
Used in open floors when you can support from above
Click here for this style

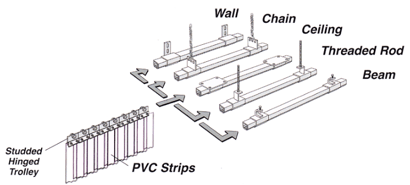

Rolling Hardware

Allow the strips to roll out of the way
Ideal for complete access when strips are not needed
Note the strips roll like a barn door and do not fold up
Click here for this style

Tube Mount

Fits up to 2" diameter pipe
Each pipe clamp is 4” wide and holds 2 strips (overlapped)
Click here for this style

FAQ

Should I order the strips a little taller than the opening?
Only if you want, the wall mount hardware. With wall mount hardware, order the strips 152mm taller and 152mm wider than the opening you are trying to cover since you are mounting to the face of the opening. Otherwise, order the strips to the exact size of the opening.

Are the heights of the strips measured from the hole or the top of the strip?
The height is measured from the top of the strip to the bottom of the strip. The holes are located 19.05mm down from the top of the strip.

How do you cut the strips in the field?
You use a utility knife and a straight edge to keep the cut straight.

Do I need to cut the strips myself?
No. When you order a kit, we cut the strips to your specific opening height. However, we usually advise ordering a few centimeters longer than your exact opening height to allow for floor variations; you can easily trim the bottom with a Stanley knife after hanging them for a perfect fit.

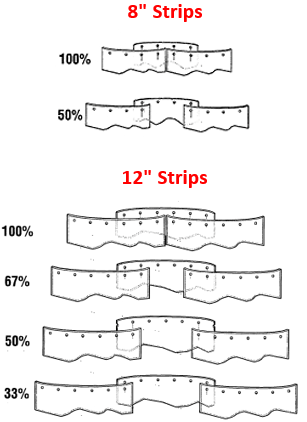

What is the difference between "Minimum" and "Maximum" overlap?
Minimum Overlap: Uses fewer strips. The strips overlap slightly (usually ~50mm). This is easier for pedestrians to walk through and costs less. Best for internal partitions.
Maximum Overlap: Uses more strips with a deeper overlap (usually ~100mm). This creates a tighter seal against wind, rain, and cold. We recommend this for external doorways or areas where insulation is the top priority.

Ordering
