OVERVIEW
Accordion strip doors are the ideal solution for door openings that require curtains which need to be periodically moved out of the way. For instance in the summer or winter months during extreme conditions you can close the industrial accordion strip doors to conserve energy. Another use is for wash bays such as car washes where automobiles need to pass through. Driving through strips which are dirty can scratch the paint.
Designed For Speed and Flexibility
Folding Options

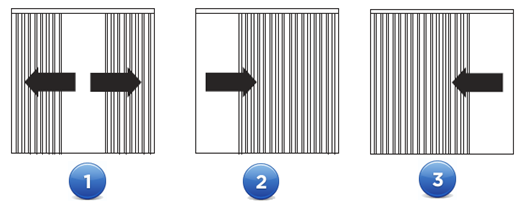

The strip doors can be opened and closed in one of three ways. Simply choose the version that works best for your application.
- Bi-Parting - The PVC strips move to the left and right
- Single To Right - The PVC strips move to the right
- Single To Left - The PVC strips move to the right
Mounting Options

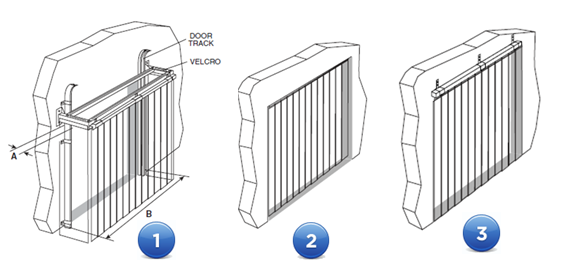

The strip doors can be mounted in one of three ways based on your wall configuration.
- Stand Off - Mounted away from the wall
- Header - Mounted inside of the door jamb
- Wall Face - Mounted to face of wall

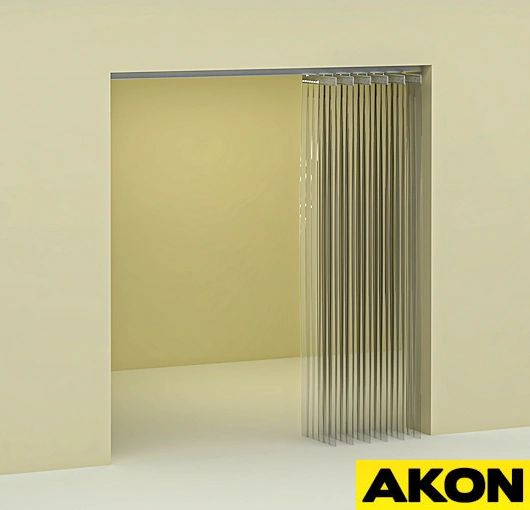

Strips Move Out of The Way
Limitations
- Single-sided and bi-parting doors, maximum size: 5 m wide × 6 m high
- Single-sided and bi-parting doors, minimum size: 2.5 m wide × 2.5 m high
- Strips must be 300 mm Wide
- Strip overlap must be 67% overlap
Additional Measurements
- Retracted width may take up to 20% of the total width of the opening.
- If bi-parting, each side would have 10%.
- Arm / Projection would measure 500 mm
PVC Strips and Hardware
Each PVC strip is approximately 300 mm wide with around 67% overlap, creating an effective barrier while maintaining excellent visibility for two-way traffic in busy food processing and cold-store areas. The clear, flame-retardant PVC helps meet typical EU and UK fire safety expectations. Individual strips can be quickly replaced if damaged, and each custom accordion-style strip door is built for years of reliable use. All mounting hardware is manufactured from galvanised steel for long-lasting corrosion resistance.
Quick to Deploy and Retract
Manual Operation
Simply pull lightly on the cord to open and close the plastic accordion strip doors. The cord is located on the far right or far left of the door. Choosing manual operation is ideal for infrequent opening and closing. There is no need to spend additional money for a motorized strip door when traffic is anticipated to be very light.
