Home / Outdoor / Mosquito / Retractable Mosquito Curtains

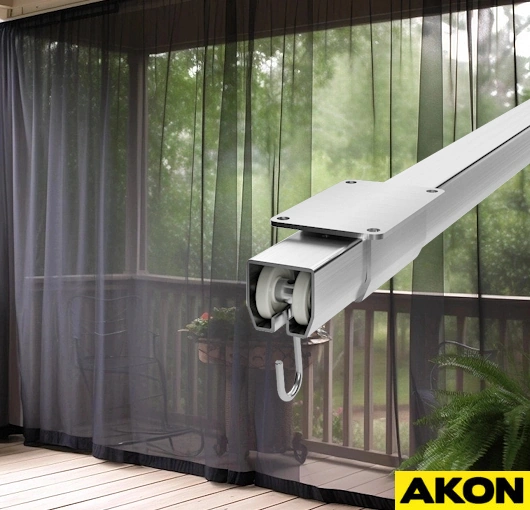

patio mosquito screen on curtain track
sound panel curtain track hardware
retractable patio bug mesh netting on track (2)

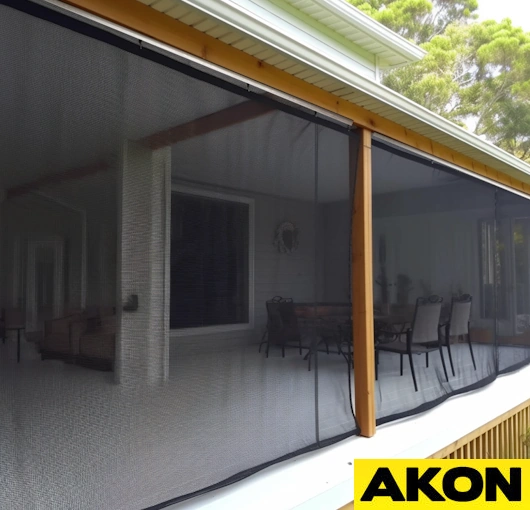

retractable custom mosquito netting
white mesh mosquito curains for patio on curtain track
mosquito mesh netting to enclose dock patio
Mosquito Curtains Panel Enclosures (9)
barn mesh curtains
Mosquito Curtains Panel Enclosures (6)
retractable patio bug mesh netting on track (1)

Retractable Mosquito Curtains

Elevate your outdoor living experience with our state-of-the-art Retractable Mosquito and Bug Curtains. Engineered for both functionality and aesthetics, these curtains provide an impenetrable barrier against pests, allowing you to savor the beauty of the outdoors in complete comfort. The secret to their retractability lies in the robust galvanized steel curtain track, which ensures smooth operation and unmatched durability against the elements. Designed to blend seamlessly with any decor, these curtains not only protect but also enhance your space, offering a stylish solution to bug prevention. Perfect for patios, porches, or any outdoor area, our Retractable Mosquito and Bug Curtains promise an unobstructed view and peace of mind, making every moment outdoors enjoyable. Experience the outdoors as it was meant to be—bug-free and beautiful.

Build Your Curtain Below

SKU: retractablebugscreen Categories: Mosquito, Retractable, Outdoor Tag: Outdoor
  • Step 1 - Choose Your Layout

  • Step 2 - Enter Curtain Dimensions

  • Side A
  • Width
  • Height
  • Please enter a number greater than or equal to 150.
  • cm
  • This field is hidden when viewing the form
  • Please enter a number greater than or equal to 150.
  • cm
  • Minimum: 150cm
  • Minimum: 150cm
  • This field is hidden when viewing the form
  • Side B
  • Width
  • Height
  • Please enter a number greater than or equal to 150.
  • Please enter a number greater than or equal to 150.
  • cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Please enter a number greater than or equal to 150.
    for 2-sided
  • Please enter a number greater than or equal to 150.
    for 2-sided
  • cm
  • Minimum: 150cm
  • Minimum: 150cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Side C
  • Width
  • Height
  • Please enter a number greater than or equal to 150.
    for 3-sided
  • Please enter a number greater than or equal to 150.
    for 3-sided
  • cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Please enter a number greater than or equal to 150.
    for 3-sided
  • Please enter a number greater than or equal to 150.
    for 3-sided
  • cm
  • Minimum: 150cm
  • Minimum: 150cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Side D
  • Width
  • Height
  • Please enter a number greater than or equal to 150.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 150.
    for 4-sided and multiple straights
  • cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Please enter a number greater than or equal to 150.
    for 4-sided and multiple straights
  • Please enter a number greater than or equal to 150.
    for 4-sided and multiple straights
  • cm
  • Minimum: 150cm
  • Minimum: 150cm
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • HOW TO MEASURE

  • Step 3 - Choose Your Curtain Material

  • Step 4 - Choose Your Hardware (Optional)

  • this is for hardware for side to side movement
  • this is for hardware for side to side movement and 2-sided
  • this is for hardware for side to side movement and 3-sided
  • this is for hardware for side to side movement and 4-sided
  • Step 5 - Vertical Edges

  • Step 7 - Curtain Features (Optional)

  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • This field is hidden when viewing the form
  • Price: $0.00
  • Price: $0.00
  • Price: $1.82
  • Price: $1.82
    MS
  • MS
  • Price: $0.00
  • Price: $0.00
  • Special Request

  • Total

  • Description

Description

free-shipping
Ceiling Corner Connector 90°
2 year warranty
Ceiling Corner Connector 90°
Details How to Measure Benefits
Details

Ordering


  • Ships in 7-10 workdays
  • Free Shipping!
  • 2-year warranty on manufacturing defects - Curtains
  • lifetime warranty on manufacturing defects - Track



Benefits


  • MADE TO YOUR EXACT DIMENSIONS: Unlike one size fits all retractable mosquito mesh curtains, you give us the exact dimensions of what you need. This makes for a more professional looking installation. AKON custom mosquito mesh curtains are used in thousands of outdoor applications around the USA.
  • HIGH QUALITY MATERIAL: All of our custom retractable mosquito mesh curtains are UV rated and made from a very strong bug mesh that is made for heavy use.
  • MULTIPLE USES AND SIZES: Use your retractable mosquito mesh custom curtains to protect people and products. This versatile mosquito and no-see-um mesh curtain delivers plenty of protection for outdoor projects. Typical uses include patios, decks, awnings, garage doors, entry doors, windows, boats, dock enclosures, gazebos and balconies...
  • REINFORCED EDGES: The retractable bug mesh material has reinforced webbing edges for extra duty strength. These are highly recommended on bug barrier curtains so that the fasteners do not pop out under wind stress.
  • SHIPS IN 7–10 WORKING DAYS: Quality takes a little longer, but the result will make you happy for the few extra days of wait time. A perfect fit of custom-sized mosquito bug curtains will look much nicer than the one-size-fits-all suppliers. The bug barrier curtains are made just for you and come with a 2 year defect warranty. Please note that the curtains are non-refundable if simply not needed as they are custom made.



Details


SPECIFICATIONS
✔ Size: You Input The Size You Need!
✔ Variation of only +/- 1"

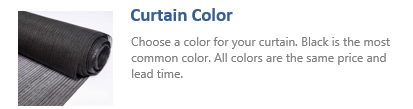

✔ Color: Black or White
✔ Double Thick Edges: Yes
✔ Wind Webbing Edge: Yes
✔ Webbing Color: Same color as mesh
✔ Rated For: -40° F to 160° F
✔ Winter Rated: Yes
✔ Usage: Indoor and Outdoor
✔ Tear resistant & Abrasion resistant
✔ UV rated for sunlight
✔ Two-Year Defect Warranty



Material


mosquito mesh
mosquito mesh - away

Mosquito Mesh

Our Premium Mosquito Netting is a top-seller, renowned for its exceptional quality and value. It's designed to provide excellent air circulation. Far more robust than the typical, lower-quality meshes found elsewhere, this netting features a sturdy rectangular grid capable of blocking even the smallest gnats and black flies.

noseeum mesh
noseeum mesh - away

No-See-Um Mesh

Our No-see-um netting is crafted with extremely small openings and features a denser weave. This design specifically prevents the tiny, bothersome no-see-um flies, often found near water sources, from getting through.



Curtain Track


Rolling Hardware

  • 16-gauge galvanized steel tracks
  • Nylon roller hooks for easy opening

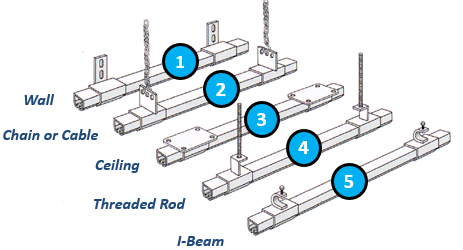

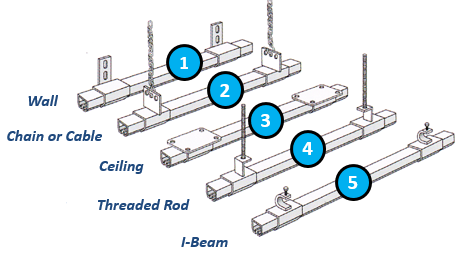

  • 5 mounting styles to connect to various structures



Shapes

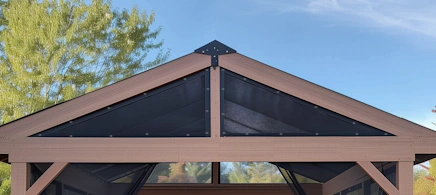

Triangles and sloped mosquito curtains are sometimes necessary to enclose your space. You can use this page to add shapes to your shopping cart order.

Anchoring


Mosquito and no-see-um netting is very strong yet lightweight, which means it may blow around in the wind if not anchored at the bottom. We provide grommets in the bottom corners and at every 61 cm interval to facilitate secure anchoring.There are many ways to anchor the curtains, and this page offers some ideas. Most curtains only need to be anchored using the grommets on the left and right corners, but larger curtains should be anchored every 61 cm to ensure optimal longevity and performance.

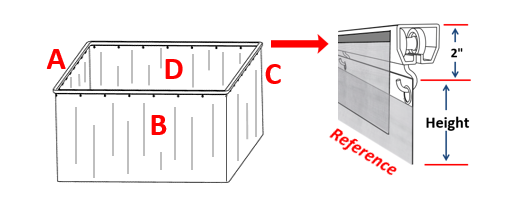

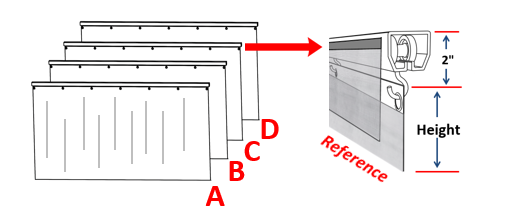

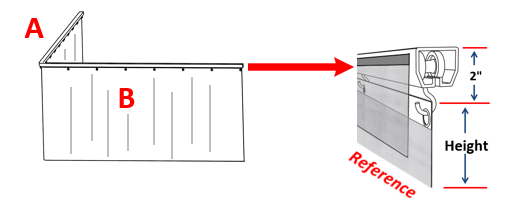

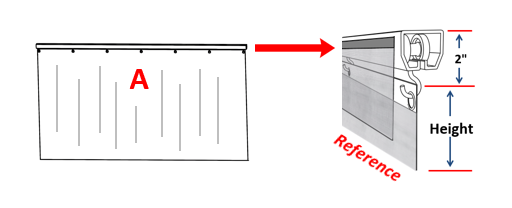

How to Measure

Width

  • Measure the distance that you are trying to cover.
    • Add 10% to that dimension and input it into the width field of this form.
    • The extra 10% gives you a proper drape for your curtain.

Height

  • Measure the distance from the floor to the mounting point.
    • Take that dimension, subtract 1 inch, and input it into the height field of this form.
      • Subtracting that 1" to accounts for the hardware so that the curtain just touches the floor
      • If you are not using hardware, then there is no need to subtract the 1"
      • If you want the floor sweep option, subtract 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of it.



Common Questions


Can the track be cut to size as required on-site?
  • Yes, the track is made to be field cut on-site using a hacksaw or sawzall for an exact fit.
How much width does the radius corner add to the length?
  • A radius corner has a 2' radius. So if you input 10' for curtain length, you will end up with 12' when you attach the radius corner. If that is too long, then simply cut the track on-site, and the radius will still work.
How does the track go together?
  • The track is modular and will arrive in sections with a simple bolt-together design.
How close together do I need the track supports?
  • The track should be supported approximately every 5-7' with a track support.
Can I simply drill straight through the track and into the ceiling / structure?
  • Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and insert a small wood screw, bolt, Tek screw... etc., into your structure. Space the screws/bolts about every 3-5'.
How hard is it to install the industrial curtain track?
  • It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty, simply call or email us, and we will walk you through the process.
Will the track rust? Can it be used in wet environments?
  • The track is Hot-dip galvanizing (HDG), which is often used to protect steel from corrosion in some of the harshest environments imaginable. Yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

Track Spacing


Track-SpacingSpacing from Track

  • Track Thickness: 16 gauge
  • Material: Galvanized Steel
  • Dimensions: 1.45″w x 1.25″h
  • Capacity: 125lbs per linear foot
  • Warranty: Lifetime



Dimensions


Beam Flange



Ceiling Mount



Threaded Rod Mount



Wall Mount





Chain/Cable Mount

Radius Corners

Roller Hook

  • Roller Hook - 2 Wheel - SR-16-1
  • Roller Hook - 4 Wheel - 16STHD



Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purposed in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Allows full access and better views when not needed
  • Quick to roll out of way when not in use
  • Curtain track is low profile and has a sleek design
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Many Layout Options

AKON can supply virtually any retractable bug mesh curtain layout imaginable. Below are some common configurations: single-sided, double-sided, triple-sided, four-sided, or multiple straight segments to create complete enclosures. Simply inform AKON of your desired design, and we will fabricate it precisely to your specifications. For customized layouts, sketch your design and upload it using our online Request For Quote (RFQ) form. See the button below.

RFQ-Button

You may also like…

  • custom shape mosquito screen curtains

    Custom Shape Mosquito Screens

    Select options

Get In Touch!

+353 21 203 2051

Email Support

Ireland Headquarters
Cork, Ireland

Corporate Headquarters
Fernandina Beach, FL

Testimonials

People all over the world trust AKON Curtains to provide industrial curtain solutions. Our custom-made barriers improve safety, productivity, and cleanliness in places like factories and warehouses. With experienced help and quick turnaround times, AKON is the best company to work with for long-lasting, affordable solutions that will work in the UK and beyond.

When you see the name AKON Curtains, you know they are high quality. Our industrial curtains are made with high-quality materials and excellent craftsmanship so they can handle the roughest conditions. AKON gives you long-lasting performance you can rely, whether you need to enclose, separate, or protect something. We make sure your workspace stays efficient, safe, and professional by making things to exact specifications for UK industries.

We don't think that one size fits all at AKON Curtains. We don't use generic, off-the-shelf curtains; every one is handcrafted just for you. We make sure that each solution fits precisely, whether it's in terms of size, substance, or use. Get the performance, fit, and function your workspace needs, with the high-quality craftsmanship that sets us distinct.

About Us

AKON Curtains is a global supplier of industrial curtains and warehouse separation dividers. Our staff is trained to provide custom solutions, ensuring your cover or curtain project is a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Product Links

Outdoor Curtains

Outdoor Curtains

Resources

Tracking & Ordering

Rapid Quote
Order Your Quote
Track Your Order

Company

Home

Contact Us
About Us
Terms
Warranty
Privacy Statement
Mission Statement
