Choosing a Strip and Overlap

Use this simple matrix to choose the ideal strip width and overlap for your application.

Overlaps

Here is a visual representation of the strip overlaps.

Hook On Rails

• Most popular mounting style
• Strips have steel mounting plates attached

Quick Mount

Stud Mounts

Free-Standing Mount

• Supported from the floor up
• Used in open floors when you can support from above
• Click here for this style

Rolling Hardware

• Allow the strips to roll out of the way
• Ideal for complete access when strips are not needed
• Note the strips roll like a barn door and do not fold up
• Click here for this style

Tube Mount

• Fits up to 5cm diameter pipe
• Each pipe clamp is 10cm wide and holds 2 strips (overlapped)
• Click here for this style

Description

• Clear - Stays clear 20% longer
• Temperature Range - Between -15 °C to 50 °C
• UV Absorber - Strips will not discolor
• Full range of fire retardant BS standards

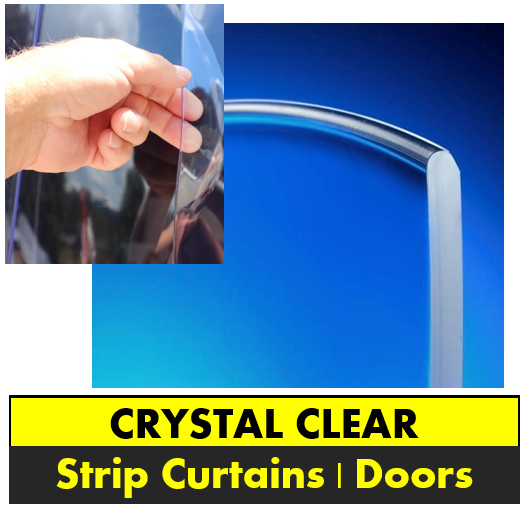

• Crystal Clear - Extrusion Clear Processing for maximum line of sight
• Eco friendly and its 100% Phthalate Free
• High thermal insulation
• 2 Year warranty on manufacturing defects - Strips
• Need other colors, click here?

Should I order the strips a little taller than the opening?
Only if you want, the wall mount hardware. With wall mount hardware, order the strips 152mm taller and 152mm wider than the opening you are trying to cover since you are mounting to the face of the opening. Otherwise, order the strips to the exact size of the opening.

Are the heights of the strips measured from the hole or the top of the strip?
The height is measured from the top of the strip to the bottom of the strip. The holes are located 19.05mm down from the top of the strip.

How do you cut the strips in the field?
You use a utility knife and a straight edge to keep the cut straight.

Do I need to cut the strips myself?
No. When you order a kit, we cut the strips to your specific opening height. However, we usually advise ordering a few centimeters longer than your exact opening height to allow for floor variations; you can easily trim the bottom with a Stanley knife after hanging them for a perfect fit.

What is the difference between "Minimum" and "Maximum" overlap?
Minimum Overlap: Uses fewer strips. The strips overlap slightly (usually ~50mm). This is easier for pedestrians to walk through and costs less. Best for internal partitions.

Maximum Overlap: Uses more strips with a deeper overlap (usually ~100mm). This creates a tighter seal against wind, rain, and cold. We recommend this for external doorways or areas where insulation is the top priority.

What are "Marker Strips"?
These are Red Warning Strips that we can include for the edges of your curtain. They act as a visual safety guide for forklift drivers and pedestrians, clearly marking the edges of the doorway to prevent collisions with the door frame. If you want these, just ask for them.

Lead Time

• Ships in 2-3 work days
• Ships UPS or FedEx. You can also specify your shipping account

Warranty

• Strips - 5 year warranty on manufacturing defects
• Hardware - Lifetime warranty on manufacturing defects
