Width

• Measure the distance that you are trying to cover.
  • Add 5% to that dimension and input it into the width field of this form.
  • The extra 5% gives you proper drape for your curtain.

Height

• Measure the distance from the floor to the mounting point.
  • Take that dimension and and input it into the height field of this form.
    • Note with blackout curtains you want the curtain resting on the floor

Common Questions

• Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

• Yes, the track is made to be field cut on site using a hack saw or sawzall.

• The track is modular in design and will arrive in pieces that have a simple bolt together design.

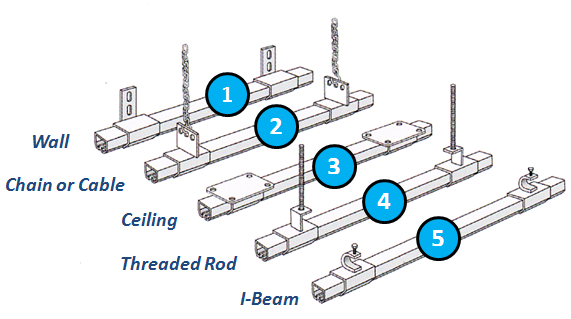

• The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively light weight curtain then you could space the supports out to about 8' apart. You will receive enough track supports with your order to achieve this 5' spacing.

• Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.

• It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.

Premium Velour - Fabric

• 100% Blackout
• 100% Polyester Fabric with a plush feel
• Lightweight and washable
• Inherently Flame Resistant (I.F.R.)
• Passes NFPA 701 Small Scale, CA Title 19, Section 1237 Small Scale, CAN/ULC-S109-14 Small and Large Scale
• Non-reflective
• Finished edges for clean crisp appearance
• All colors are the same price

16oz - Vinyl

• 100% Blackout
• Vinyl coated polyester reinforced with scrim
• NFPA fire retardant, CFM fire retardant
• Outdoor rated
• Lightweight
• Finished edges for clean crisp appearance
• Double hems used where needed for longevity
• All colors are the same price
• Slightly shinny
• Color Options: White or Black

Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purposed in other areas
• Ability to purchase more curtains and attach to existing curtains
• Divide work areas quickly

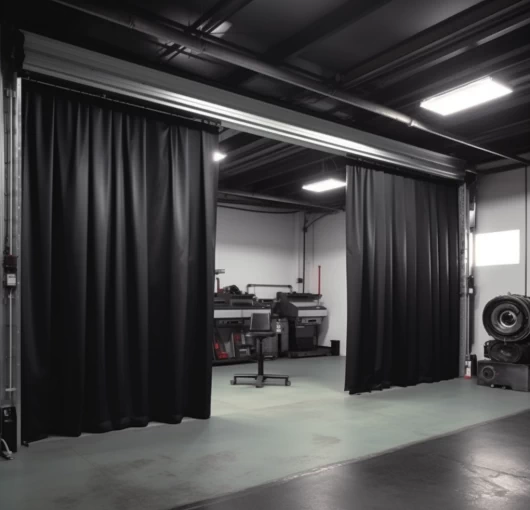

• Industrial blackout curtains improve worker safety
• Quick to roll out of way when not in use
• Easy to clean with slick surface of the vinyl style
• Lifetime warranty on all hardware and 5 year warranty on curtains

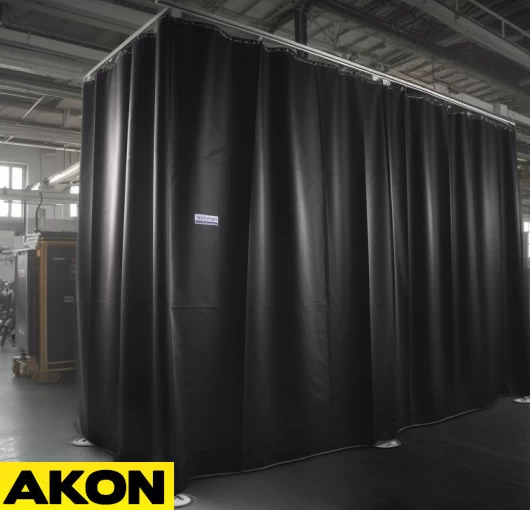

Many Layout Options

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See link below.

Lead Time

• Ships in 7-10 work days
• Ships UPS or FedEx. You can also specify your shipping account

Warranty

• Curtains - 5 year warranty on manufacturing defects
• Hardware - Lifetime warranty on manufacturing defects
