What are the benefits of outdoor tarp curtain walls?

Outdoor tarp curtain walls offer a cost-effective way to enclose large openings. They provide excellent weather protection, reduce energy costs by containing heat, and are far more flexible than permanent walls, allowing for full width access when retracted.

Are the outdoor tarp curtain walls fire-retardant?

Yes, our industrial tarp materials meet NFPA-701 or equivalent fire-retardant standards, making them safe for use in commercial and industrial facilities.

How do tarp walls handle high winds?

We offer several wind-retention options, including floor-mounted bolts, weighted chain hems, and wind-load bars that slide into built-in pockets to keep the tarp wall stable during inclement weather.

outdoor-tarp-curtain-walls-sample_upscayl

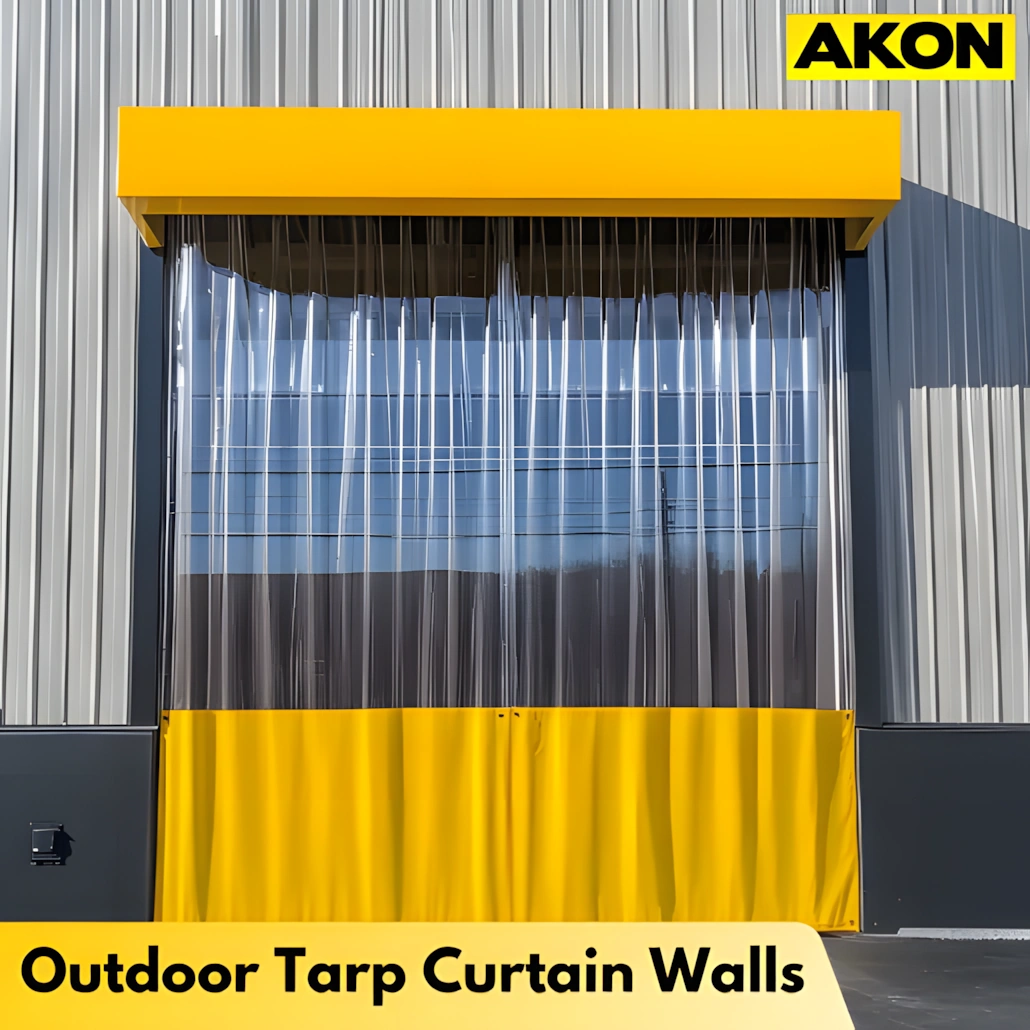

OVERVIEW

AKON's outdoor tarp curtain walls can separate your products, workers, and environment from the outdoor elements. These large curtains are an inexpensive alternative to solid doors / walls and are a fraction of the cost. Installation is quick and side to side movement is available with the use of the industrial curtain tracks.

Our outdoor tarp walls can be customized to your liking. You can use them for warehouses, residential garages, auto repair shops, restaurants, and other applications.

Build Online Now

Key Benefits

Q: How hard is it to install the industrial curtain track?

Installation is straightforward. All track components fit together and are secured with set screws or mounting brackets. The process is intuitive and typically can be done by facility maintenance staff using basic hand tools.

Q: What is the spacing from the bottom of the track to the top of the curtain?

Standard outdoor tarp walls maintain a gap of approximately 2–2.5 cm between the bottom of the track and the top of the curtain to ensure the roller trolleys glide smoothly, even in windy conditions.

Q: Can the track be cut to size on site?

Yes. The galvanized steel track system is designed to be cut on site using a standard hacksaw or Sawzall for a precision fit in your specific outdoor opening.

Easy Install

Outdoor tarp curtains come with grommets at the top making hanging the curtains quick and easy with or without the curtain track.

Inexpensive

Outdoor tarp walls are about 1/3rd of the cost of other separation methods such as rigid walls or panel systems and are easy to store.

Temperature Control

Keep consistent temperatures inside more consistent for a more comfortable work environment and pull open when not needed.

Wind Blocking

Keep the wind and rain out when the weather turns nasty but still have the ability to pull open the curtain when its nice or you need access.

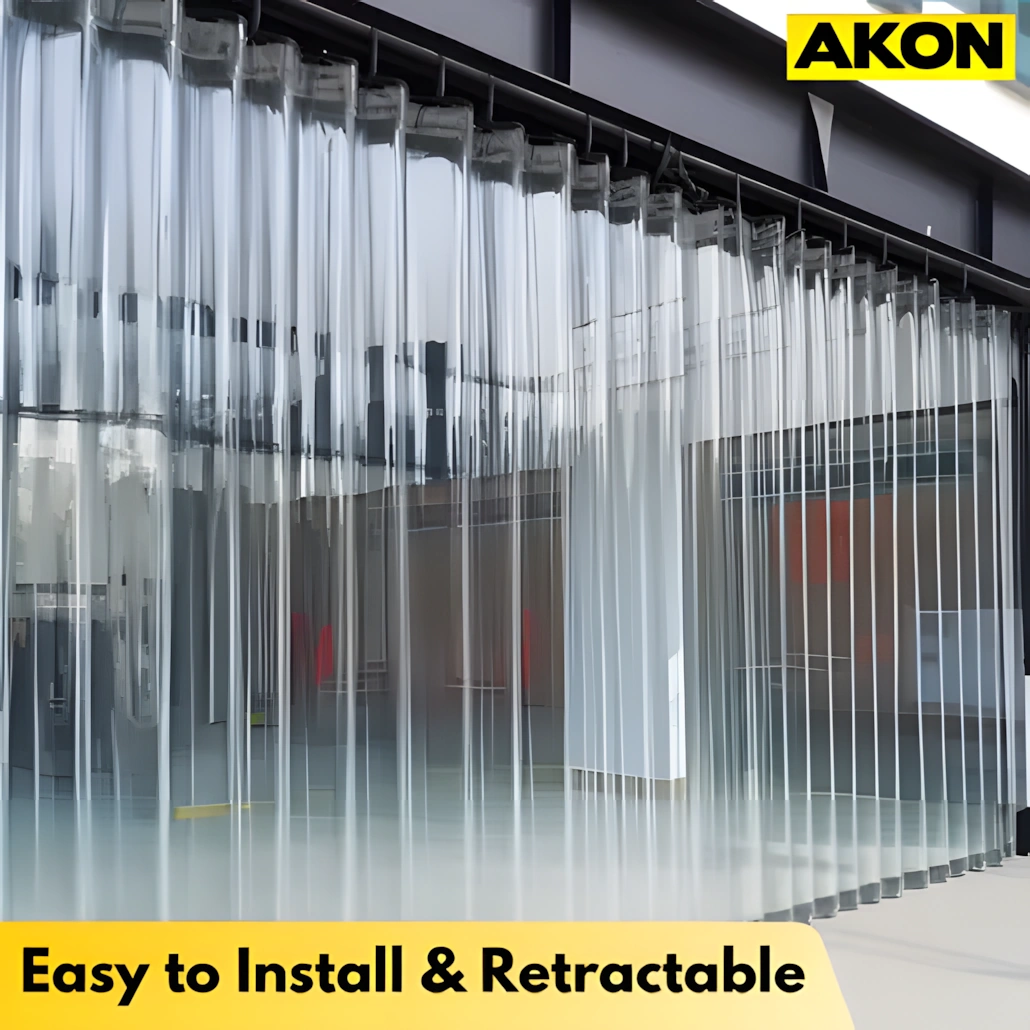

Outdoor Tarp Curtain Walls Are Quick To Deploy And Retract

outdoor-tarp-curtain-walls-easy-to-install_upscayl

uWhat Makes Them Special?

Reduce heating and cooling bills
18 or 22oz Vinyl can withstand the rigors of the weather
Track allows the heavy duty outdoor tarps to move
Inexpensive compared to fixed walls or solid doors
Does not bend and damage like metal walls and doors
Can be taken down and stored when not in use
Vision panels can be added for line of sight
Can be re-pursued for other applications
Ability to purchase more curtains and attach to existing curtains
Divide work areas quickly, and improve warehouse efficiency
Industrial curtains improve worker safety
Easy to clean with slick surface of Vinyl
Contain air migration, odors, dust, over spray
Lifetime warranty on all hardware and 5 year warranty on curtains

Custom Made Outdoor Tarp Walls

You can have a specific layout with one or many sides
Choose the height and length you need
Choose what type of curtain track to use
Optional colors or see-through tarps
And a lot of accessories such as floor sweeps, clear vision panels, Velcro seals, chain weights, anchor straps, strip door entrances, and more

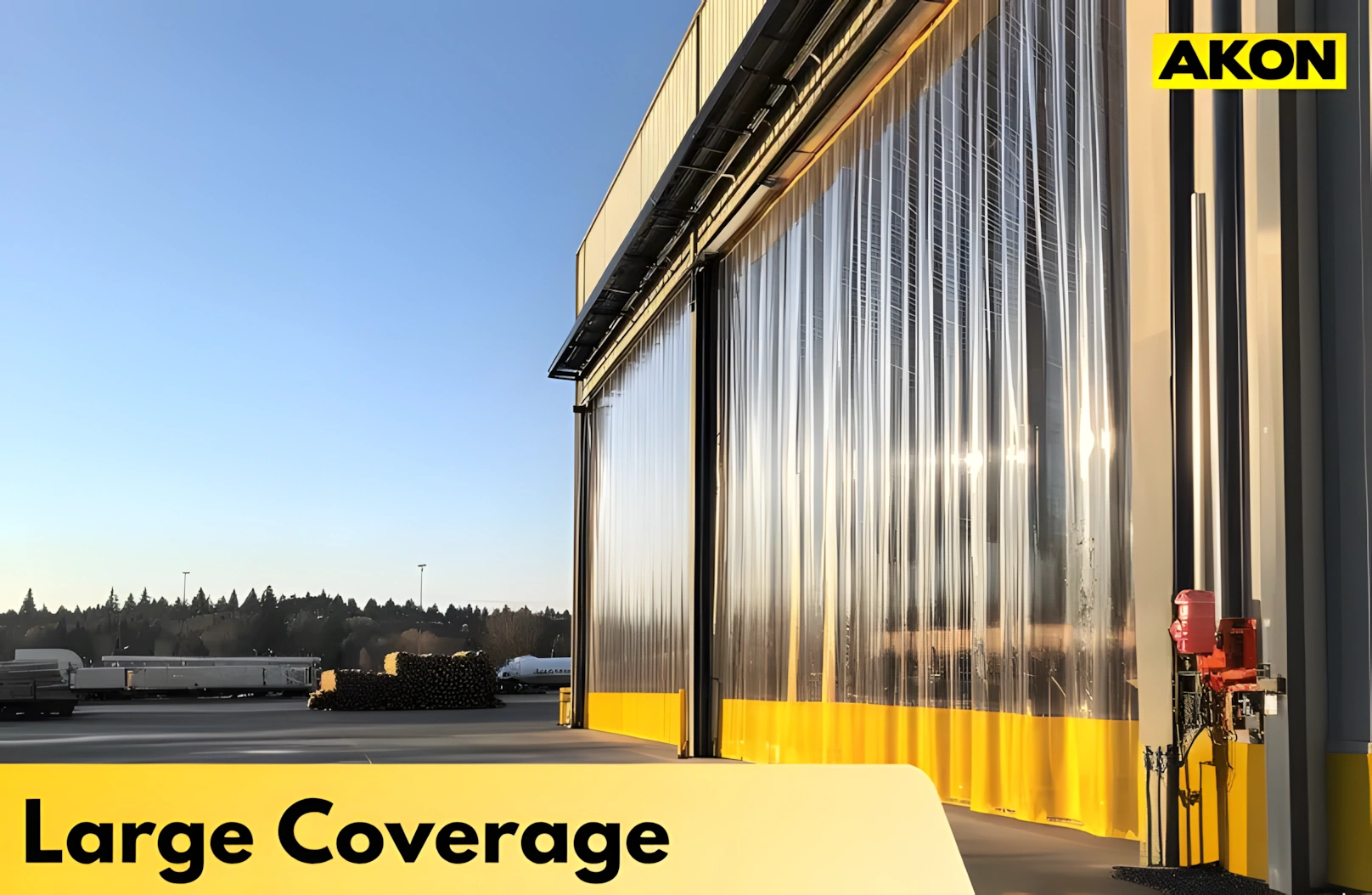

Cover Large Outdoor Openings

outdoor-tarp-curtain-walls-ideal-for-large-coverage_upscayl

Large Outdoor Tarp Curtains

Perfect for applications where large coverage is required. AKON can supply you with large outdoor tarp curtains which can cover the sides of entire buildings. We will choose a material which is ideal for your application, can withstand the elements, and ensures you and your internal environments are well-protected throughout the year. These industrial outdoor tarp walls are constructed of the same vinyl we use in heavy-duty warehouse operations.

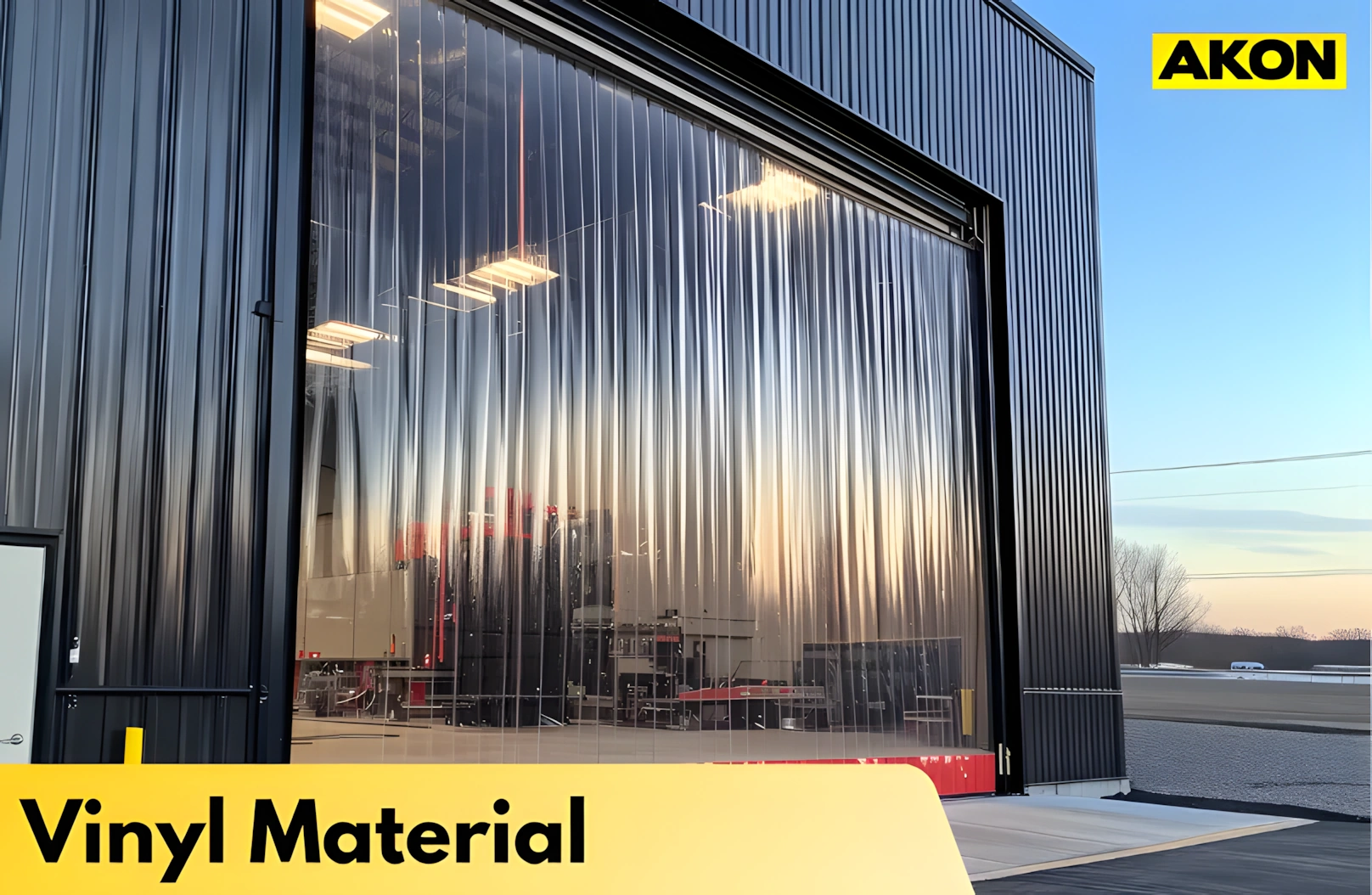

Vinyl Material

Unlike indoor industrial curtain walls, outdoor industrial tarp curtain walls are exposed to wind, cold, rain, and UV light from the sun. This requires the material to be at least an 18oz or 22oz coated vinyl. It is important that the material is a coated Vinyl as laminates when exposed to the cold can experience cold crack. The tarps can remain up for months to no end and still look in pristine condition; not to mention they are really quick and easy to clean. We can also provide insulated outdoor curtains for maintaining temperatures inside of your facility.

Photo Gallery

Red insulated industrial curtain wall covering the side of an agricultural building, offering large-scale weather protection and temperature control.

Grey insulated industrial curtain enclosure surrounding outdoor equipment, providing weather resistance, thermal insulation, and environmental containment.

Blue insulated outdoor industrial curtain wall mounted under a canopy, creating a sheltered loading area with thermal and weather protection

Large industrial warehouse curtains covering a wide exterior opening, transparent PVC strip curtains used for weather control and visibility

Insulated outdoor industrial curtains installed across a warehouse entrance, allowing vehicle access while maintaining weather and temperature protection.

outdoor vinyl curtains on curtain track retractable

super duty outdoor curtain tarps to cover fabric building

industrial outdoor curtain wall for side of building

static mounted outdoor wind breaks clear panels

outdoor pavillion with side tarps panel to block wind and sunlight

Hardware Curtains Colors Accessories Benefits How to Measure

Hardware

Curtain Track

16 gauge galvanized steel tracks
Nylon roller hooks for easy opening
6 mounting styles to connect to various structures
Free standing hardware for up to 6 m in height

Static Mount Hardware

Industrial Curtain Hanging Options

Aluminum Angle - Use with self-tapping Tek screws to pinch the curtain to the angle.
Grommets Only - You can then use many DIY methods to hang the curtains.
Beam Clamps - Clamps onto the flange of beams, joists, and purlins.
Need more ideas? Check out our outdoor curtain anchoring guide.

Curtains

Opaque Curtains - 18oz, 22oz

Vinyl coated polyester reinforced with scrim
Full range of fire-retardant BS standards
Finished edges for a clean, crisp appearance
Double or triple hems are used where needed for longevity
Ideal for temperatures going as low as -26° C to 71° C
All colors are the same price
18 oz = 0.51 mm thick, 0.61 kg/m²
22 oz = 0.61 mm thick, 0.75 kg/m²

Clear Curtains - 20mil and 40mil

Clear double polished PVC
Full range of fire-retardant BS standards
Finished edges for a clean, crisp appearance
Double or triple hems are used where needed for longevity
Ideal for temperatures going as low as -12° C to 60° C
20 mil = 0.51 mm thick, 0.60 kg/m²
40 mil = 1.02 mm thick, 1.20 kg/m²

Colors

Accessories

Curtain Features

Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. The vision panels
can be made to almost any size per request.

Custom Shapes

Need to fill an area that has a peak or an odd shape.
We can do that for you. Just provide a hand sketch
of the design, and we can make it.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are as wide as the entire
length of the curtain.

Bottom Pipe Pockets

Add a pocket at the bottom for a pipe to weigh
down the outdoor curtain. Pipes are not supplied,
but the pocket is at no additional charge.

Chain Weights

For curtains that need to open but also have
some weight at the bottom, we can add a chain
pocket at no additional cost. We can also supply
the galvanized chain, if needed.

Anchor Straps

Velcro straps hold your curtain in place if a
breeze or if a more secure curtain is needed.
These anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 1.2 m.
More anchoring ideas here.

Connecting Curtains / Entry

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.

Zipper Splits

A zipper can be added for a quick entry and
exit. Just like Velcro splits, they are great
for rapid access into the curtained area.

Benefits

Key Benefits

Less expensive than rigid walls
Can be taken down quickly when not needed
Easy to store or pull back in the off-season
Quick to roll out of way when not in use
Easy to clean with slick surface of Vinyl
Lifetime warranty on all hardware and 1 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of for your outdoor curtains. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete outdoor curtain enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

Measure the distance that you are trying to cover and then add 5% to that dimension and enter it into the width box.
TIP - The reason you want to add 5% is for proper drape of the curtain so it properly covers the span.

Height

Measure the distance from the floor to the above mounting point (from where you would attach the curtain track) and subtract 7.6 cm, and then input it into the height box.
TIP - If you are not using any hardware, then you don't need to subtract the 7.6 cm
TIP - If you want to engage the floor, then select the floor sweep option on this form.

Need More Help? Watch This

Common Questions

What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have approximately 9.5 cm to 2.5 cm of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

Can the track be cut to size on site?
Yes, the track is made to be field cut on site using a hacksaw or Sawzall.

How much width does the radius corner add to the length?

The radius corner is 61 cm in diameter. The radius corner will add 61 cm to each dimension.
For example, if you have 305 cm of curtain track then a radius corner will make the overall length of side “A” 305 cm + 61 cm = 366 cm.

How does the track go together?
The track is modular in design and will arrive in pieces that have a simple bolt-together design.

How close together do I need the track supports?
The track should be supported approximately every 1.5 metres with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short curtain, you can space the supports out a little farther. You will receive enough track supports with your order to achieve this 1.5 metre spacing.

Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush-mount installation and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw…etc into your structure. Space the holes about every 1–1.5 metres.

How hard is it to install the industrial curtain track?
It is very easy. All of the components simply fit together and connect with set screws. The installation is very intuitive. If you have any difficulty, simply call or email us, and we will walk you through the process.

Will the track rust? Can it be used in wet environments?
The track is hot-dip galvanized (HDG), which protects steel from corrosion in harsh environments, providing decades of maintenance-free longevity. Its corrosion rate is typically 1/30 of bare steel in the same conditions.
