OVERVIEW

With the use of the AKON line of outdoor industrial curtains, you can separate your products, workers, and environment from the elements of the outdoors. These waterproof outdoor curtains are a better alternative to fixed walls and are a fraction of the cost. Installation is quick and easy with no special tools needed. There are two options for mounting. The first option is a static mounted curtain that is anchored around the perimeter. The second options is a rolling curtain with the use of the industrial curtain tracks.

Build Online Now

Keep the Weather Out

Easy Install

Outdoor curtains come with grommets at the top, making hanging the curtains quick and easy with or without the curtain track.

Inexpensive

Outdoor curtains are about 1/3 of the cost of other separation methods, such as rigid walls or panel systems, and are easy to store.

Temperature Control

Keep consistent temperatures inside more consistent for a more comfortable work environment and pull open when not needed.

Wind Blocking

Keep the wind and rain out when the weather turns nasty but still have the ability to pull open the curtain when its nice or you need access.

Quick to Deploy And Retract

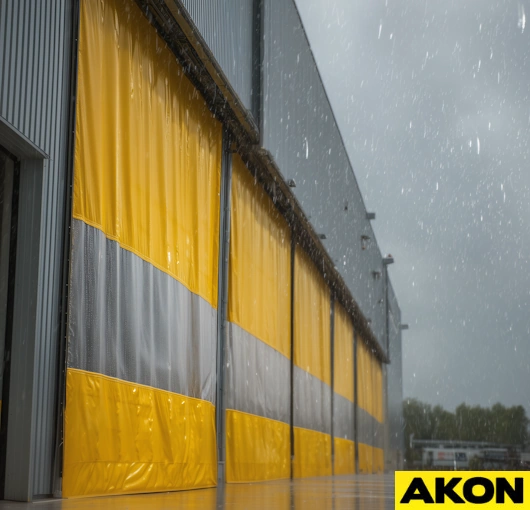

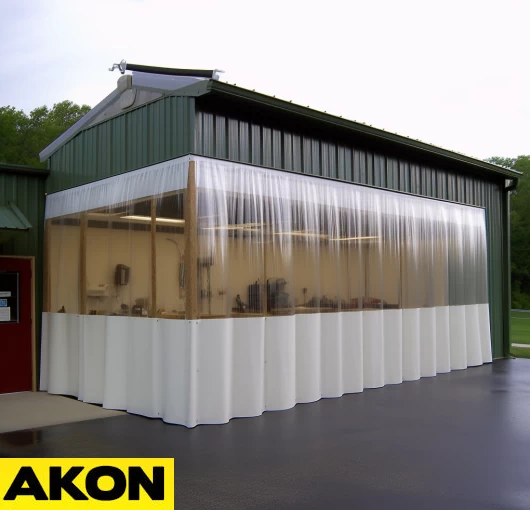

industrial outdoor curtain sidewall tarp

Outdoor Curtain Benefits

Reduce heating and cooling bills
18 or 22oz vinyl can withstand the rigors of the weather
Track allows the heavy duty outdoor curtains to move quickly
Inexpensive compared to fixed outdoor walls
Does not bend and damage like metal walls and doors
Can be taken down and stored when not in use
Vision panels can be added for a line of sight

"Large" Outdoor Curtain Walls

Large Size Projects

Made in almost any size to suite industrial and commerical projects
Material is a fraction of the cost of steel and glass enclosures
Provides rapid access for material and product storage
Custom colors can be used to suite your business image
Clear vision windows allow for safer and brighter work conditions

"Medium" Outdoor Curtain Walls

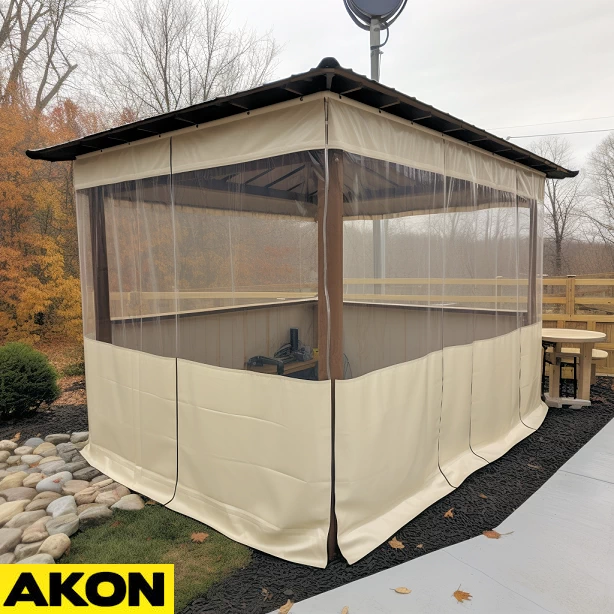

medium sized outdoor weather proof industrial curtains

Medium Size Projects

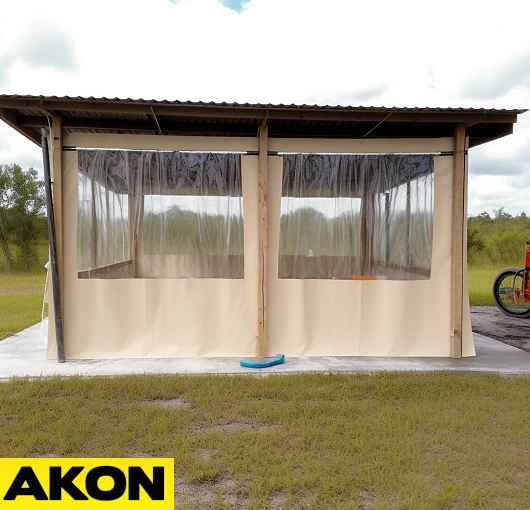

Many used for Outdoor Bars, Outdoor Decks, Outdoor Restaurants, Outdoor Cafes, Outdoor Pubs, Banquet Areas, Outdoor Wedding Venues, Gazebos, Pavilions, and Solariums
Made in custom sizes with or without curtain track hardware
Choose any color and size to fit your opening area
For static mounts, choose grommets on all edges, so that you can tie it down
Keeps the weather out, so that you and your visitors can enjoy indoor comfort

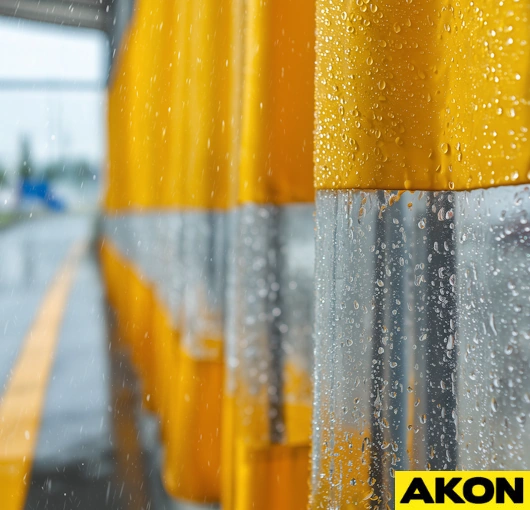

Waterproof Outdoor Curtains

wareproof outdoor platic curtains industrial

Outdoor Curtain Benefits

Manufactured from vinyl, these waterproof curtains are very strong, long-lasting and waterproof.
The vinyl is slick, unlike fabric curtains, so it has an added benefit of being easy to wipe clean.
The slick surface is less likely to harbor mold, like outdoor fabric canvas curtains.
The waterproof outdoor curtains can be made completely opaque or with clear PVC.

Material Options

Opaque Vinyl

Industrial grade 18oz opaque vinyl ideal for moderate temperature control. The shade can be all opaque or feature a clear vision panel. $$

Clear Vinyl

Industrial grade 30mil clear vinyl is ideal for moderate temperature control and for allowing a line of sight into the warehouse. $$

Insulated Vinyl

Industrial R3 1/2" thick material with 18oz vinyl skins ideal for heavy temperature control and blocking line of sight into the warehouse. $$

Mesh Vinyl

Industrial grade mesh vinyl allows the breeze to come into the warehouse while keeping the insects outside and away. $

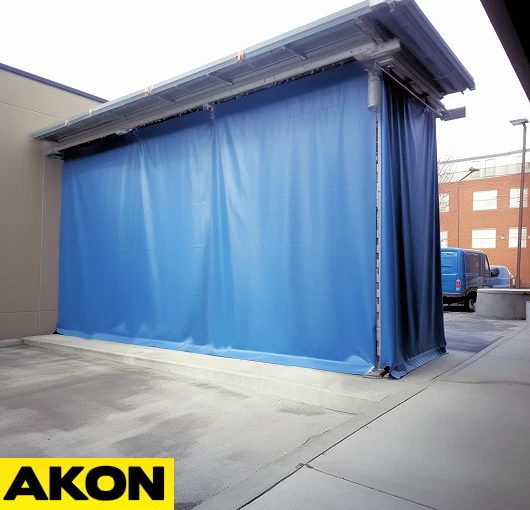

Cover Large Outdoor Openings

Large Outdoor Curtains

For applications where large coverage is required. Akon can supply you with large outdoor curtains, which can cover the sides of entire buildings or racking. We will choose a material that is ideal for your application and that will ensure that you and your internal environments are protected from the elements. These industrial outdoor curtains are constructed of the same heavy-duty vinyl.

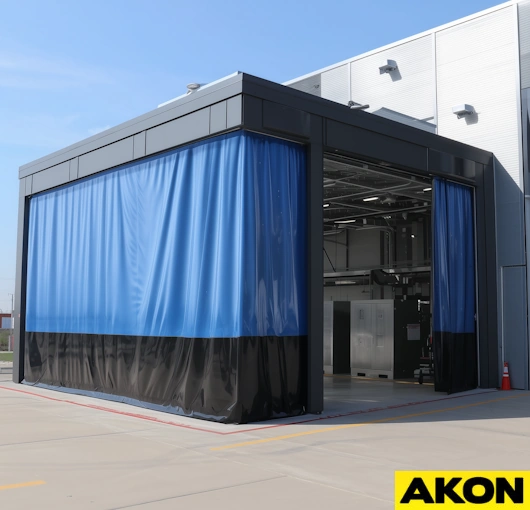

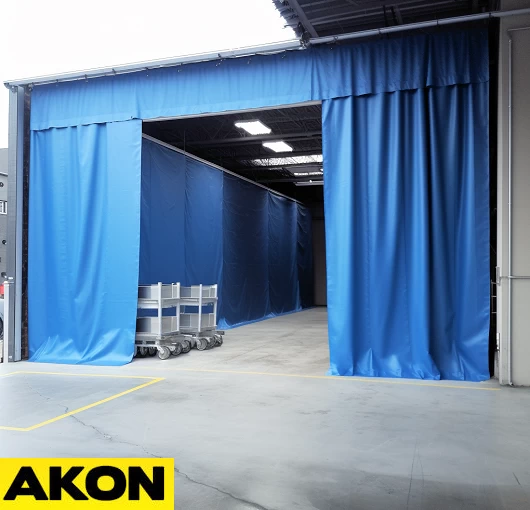

outdoor curtain enclosure industrial use

Vinyl Material

Unlike indoor industrial curtain walls, outdoor industrial curtain walls are exposed to wind, cold, rain, and UV light from the sun. This requires the vinyl material to be at least an 18oz or 22oz coated vinyl. It is important that the material is a coated vinyl because laminates, when exposed to the cold, can experience cold crack. We can also provide insulated outdoor curtains for maintaining temperatures inside of your facility.

Photo Gallery

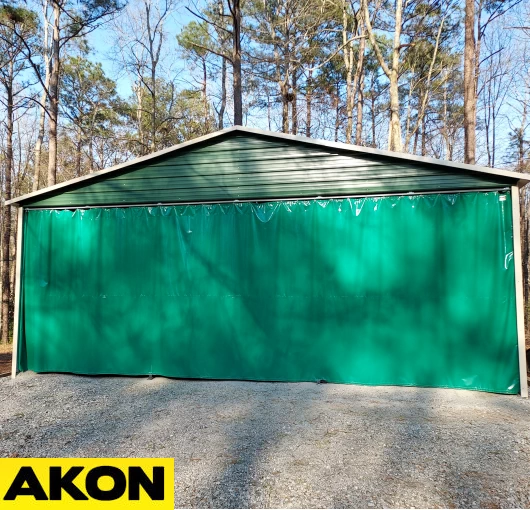

industrial outdoor curtains for garage door opening

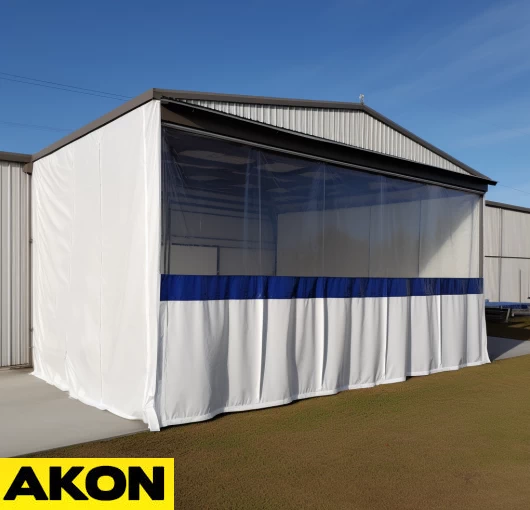

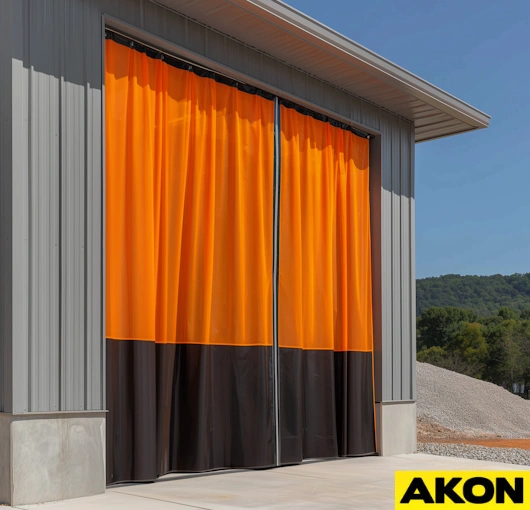

outdoor industrial curtains to cover opening

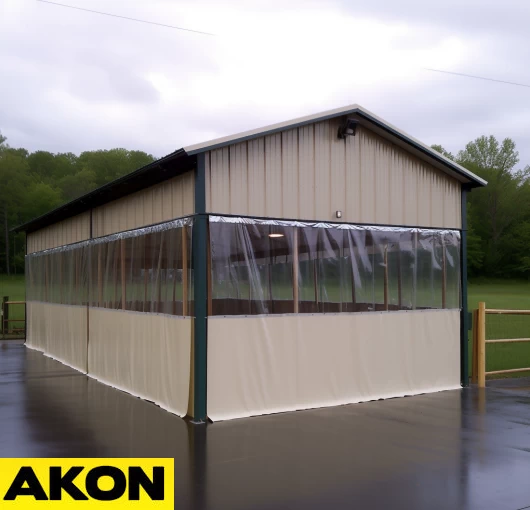

curtains for outdoor structure windproof

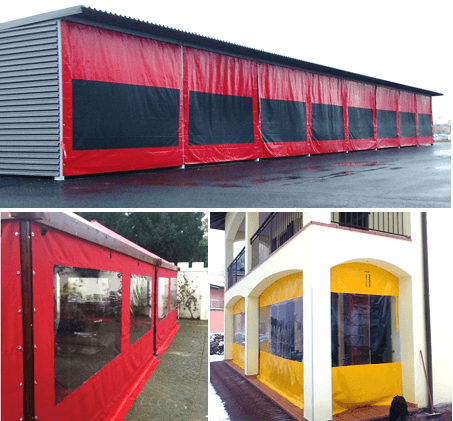

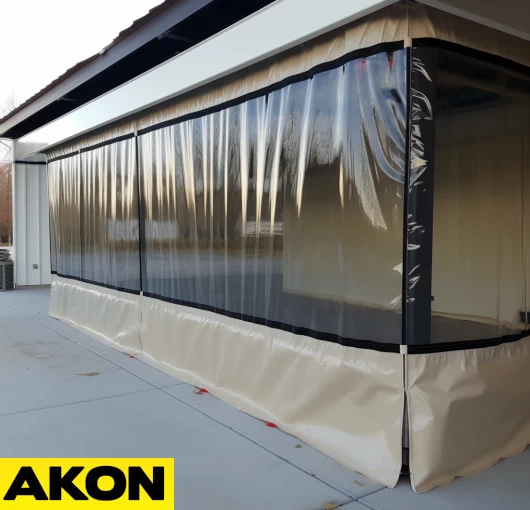

patio industrial commercial clear curtains

Hardware Curtains Colors Accessories Benefits Layouts

Hardware

Rolling Hardware

16 gauge galvanized steel tracks
Nylon roller hooks for easy opening
6 mounting styles to connect to various structures
Free standing hardware for up to 20' in height

Industrial Curtain Hanging Options

Static Mount Hardware

Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
Grommets Only - You can then use many DIY methods to hang the curtains.
Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Need more ideas? Click here for the definitive guide on tarp anchoring ideas

Curtains

Opaque Curtains - 18oz, 22oz

Vinyl coated polyester reinforced with scrim
NFPA fire retardant, CFM fire retardant
18oz and 22oz are outdoor rated
Finished edges for clean crisp appearance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as -10° F to 160° F
All colors are the same price
18 oz = .020″ thick, 2.0 oz. per square foot
22 oz = .024″ thick, 2.44 oz. per square foot

vinyl-red-bg-white

Clear Curtains - 20mil and 40mil

Clear double polished PVC
NFPA fire retardant, CFM fire retardant
Outdoor rated
Finished edges for clean crisp apperance
Double or triple hems used where needed for longevity
Ideal for temperatures going as low as 10° F to 140° F
20 mil = 20mil thick, 1.98 oz. per square foot
40 mil = 40mil thick, 3.95 oz. per square foot

Colors

Accessories

Curtain Features

Clear Vision Panels

Vision panels can be added to allow for clear line
of site through the curtain. Standard vision panels
are 54" in height but can be made to any size.

Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purling.
They can be rectangular or follow the slope of the roof.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as long
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.

Anchor Straps

Velcro straps hold your curtain in place if wind
is present or a more secure curtain is required.
These anchors feature Velcro straps which loop
through a D-ring which is anchored into the
cement floor. Typically spaced every 4'.

Seal Velcro

Seal Velcro also known as adhesive Velcro sticks
onto your curtain and can be placed in the field.
Please note this is not ideal for cold temperature
applications or high-frequency use.

Chain Weights

If you have a slight breeze or are power washing
near the curtain then we can add a galvanized
3/16" chain weight to the bottom of the curtain.

Connecting Curtains

Velcro

You can choose to have Velcro installed along
the perimeter of the divider which will allow
you to combine multiple curtains into one
larger curtain. You can also attach self
adhesive Velcro to fixed objects such as walls
for a more complete seal. Great for dust control
and temperature control.

Magnets

Seal magnets are an idea to attach curtains to
each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.

Entry Options

Sewn In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. These allows quick
movement of people into and out of the
industrial curtains.

Free Standing Strip Doors

For motorized traffic a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall ensuring longevity
and performance for motor traffic and high use.

Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy duty doors can
take a lot of abuse from carts, fork lifts or
heavy foot traffic.

Roll Up Doors

Supported with a free-standing frame the
power roll up doors can be opened and closed
via remote from a fork lift. Door styles and
prices vary based on frequency of opening
and closing, speed requirements and size.

Benefits

Key Benefits

Less expensive than rigid walls
Can be taken down quickly when not needed
Can be re-purused in other areas
Ability to purchase more curtains and attach to existing curtains
Divide work areas quickly
Industrial curtains improve worker safety
Quick to roll out of way when not in use
Easy to clean with slick surface of Vinyl
Contain air migration, odors, dust, overspray
Lifetime warranty on all hardware and 5 year warranty on curtains

Layouts

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.
