Key Takeaways (TL;DR)
- Laser blocking curtains protect personnel from stray radiation generated by Class 3B and Class 4 lasers, with triple-layer systems rated at 2,150 W/cm² for 100 seconds at 1064 nm.
- Available in single, double, and triple layer configurations, these flexible curtains are flame resistant, easy to clean, and install on ceiling or floor-mounted track in hours — no permanent construction required.
- For facilities running Nd:YAG, fibre, CO₂, or diode lasers, laser barrier curtains deliver certified beam containment at a fraction of the cost of rigid enclosures, with full reconfigurability.
- Optional ESD-safe and cleanroom-rated layers make these curtains suitable for electronics manufacturing, medical device production, and sensitive research environments.
Updated: March 2026
Every facility operating a Class 3B or Class 4 laser faces the same core challenge: how do you contain hazardous beam radiation without locking your layout into permanent walls? We supply laser barrier curtains that solve this problem at a fraction of the cost of rigid enclosures, with dramatically faster installation and full reconfigurability.
In our experience working with UK and European manufacturers, research labs, and medical facilities, the shift toward flexible laser containment has accelerated sharply over the past five years. The reason is straightforward: laser technology evolves faster than building infrastructure, and businesses need safety solutions that keep pace.
Why Are Laser Blocking Curtains Safer Than Open Laser Areas?
Laser blocking curtains eliminate the single greatest workplace laser risk — uncontrolled beam escape from the process zone — by providing a certified, continuous barrier that withstands direct and scattered laser light from Class 3B and Class 4 sources.
A stray beam from a 4 kW fibre laser can cause permanent retinal damage in less than a millisecond. Relying on administrative controls alone — warning signs, restricted access, PPE compliance — leaves too many failure points. Our clients consistently tell us that the moment they installed a physical curtain barrier, their near-miss reporting dropped to zero.
The curtain material is specifically engineered for laser containment: flexible, flame resistant, and easy to clean. It comes in single, double, and triple layer thicknesses to match your laser's power density. A single-layer curtain is rated at 425 W/cm² for 100 seconds, while a triple-layer system handles 2,150 W/cm² for the same duration — both tested at 1064 nm with a 1 mm beam diameter.
These ratings are verified under the OSHA-referenced ANSI Z136 standard series, which classifies curtain barriers as an engineering control for Class 3B and Class 4 laser environments. Every curtain system we supply is designed by qualified Laser Safety Officers to match your specific application.
Rigid enclosures offer equivalent containment, but at three to five times the cost and with zero flexibility. Once a steel or polycarbonate enclosure is bolted down, reconfiguring your laser cell requires dismantling, re-engineering, and rebuilding. A curtain system on overhead track reconfigures in minutes.
"We run three fibre laser welding cells across two shifts, and our original rigid enclosures cost us £18,000 per cell installed. When we added a fourth cell last year, we switched to double-layer curtain barriers and saved £11,500 on that single installation. The curtain went up in four hours — the rigid enclosure had taken two weeks."
— Mark Hennessey, Production Engineering Manager, Bridgewater Precision Components Ltd
What Protection Levels Are Available for Laser Blocking Curtains?
Laser blocking curtains are available in three protection tiers — single, double, and triple layer — rated from 425 W/cm² up to 2,150 W/cm² for 100 seconds, tested at 1064 nm with a 1 mm beam diameter.

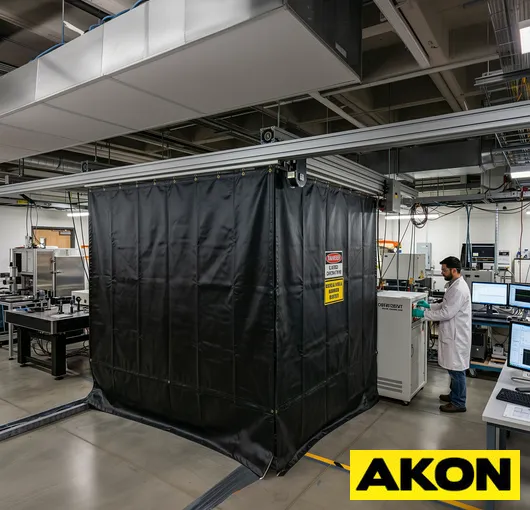

The single-layer curtain (rated at 425 W/cm²) suits lower-power Class 3B applications and scattered-beam containment. The double-layer curtain (575 W/cm²) is the most popular choice for fibre laser welding and handheld laser welding environments like those using Lightweld systems. The triple-layer curtain (2,150 W/cm²) provides maximum protection for high-power industrial applications.
We always recommend specifying your curtain layers based on your laser's actual power density, not just its class. Our technical team matches the correct curtain specification to your exact laser parameters as part of every quotation. For applications exceeding triple-layer ratings, we recommend rigid panel barriers as an alternative.
Laser Blocking Curtains vs Rigid Laser Enclosures
| Factor | Laser Blocking Curtain | Rigid Laser Enclosure |
|---|---|---|
| Typical installed cost (single cell) | £2,000 – £6,500 | £10,000 – £25,000+ |
| Installation time | 4–8 hours ✓ | 1–3 weeks ✗ |
| Reconfigurable / relocatable | ✓ Track-mounted, hook-and-loop joins | ✗ Fixed, requires dismantling |
| Max protection (triple layer) | 2,150 W/cm² for 100 sec ✓ | Varies by panel spec ✓ |
| Layer options | Single (425 W/cm²), Double (575), Triple (2,150) | Fixed panel rating |
| ESD / cleanroom layer available | ✓ | ✗ Requires separate treatment |
| Structural modifications needed | ✓ None | ✗ Floor bolts, framework |
| Flame resistant material | ✓ | ✓ |
| Best suited for | Most industrial, medical, and research environments | Applications exceeding curtain ratings or requiring physical security |
Protecting Your Workforce with Certified Laser Curtain Systems
Why Choose Flexible Curtain Systems Over Rigid Laser Enclosures?
Flexible laser curtain systems deliver certified beam containment at roughly 30% of the installed cost of rigid enclosures, with same-day deployment and the ability to reconfigure your layout as operations change.
Rigid laser enclosures — steel panels, interlocked polycarbonate cabins, or bespoke aluminium framing — are the right choice for permanently fixed, high-power automated cells where maximum physical security is also a requirement. For every other scenario, laser barrier curtains on overhead track offer a superior balance of safety, speed, and cost.
The operational advantages extend beyond the initial purchase price. Curtain systems require no specialist installation crew, no foundation bolts, and no structural modifications. Standard-size curtains can be pieced together with integrated hook-and-loop fasteners to create larger configurations, and detached and reattached to change the layout as needed.
Compliance and Certification Made Simple
Curtain systems simplify your regulatory obligations by shipping with documented, auditable protection ratings that satisfy your Laser Safety Officer and any external inspector.
Materials certified to IEC 60825-4 (Safety of Laser Products – Part 4: Laser Guards) carry CE marking and documented protection times at rated power densities. All curtain systems we supply are designed by qualified Laser Safety Officers (LSOs) to meet your specific application requirements.
Custom configurations can be mounted to the ceiling or floor and built on tracks that allow curved, straight, and combination layouts. Whether you need a room divider, doorway surround, workspace partition, or a complete laser welding cell enclosure, the system is engineered to fit your exact dimensions.
How Do ESD and Cleanroom Layers Extend Curtain Functionality?
Adding an electrostatic discharge (ESD) protective layer to a laser blocking curtain creates a dual-purpose barrier that contains both beam radiation and static charge — critical in electronics and semiconductor manufacturing.
The ESD layer prevents electrostatic buildup that could damage sensitive components during laser processing. Cleanroom-rated layers add a smooth, non-shedding surface that meets particulate control requirements for controlled environments. Both options are available as additional layers on single, double, or triple layer curtain systems.
In our experience, roughly one in four laser curtain enquiries now include an ESD or cleanroom specification. The demand is driven by the growth of laser micro-welding, laser marking, and laser trimming in sectors where static control is non-negotiable.
Frequently Asked Questions about Laser Blocking Curtains for Industrial and Medical Environments
What laser classes require blocking curtains?
Laser blocking curtains are required for Class 3B and Class 4 lasers. These classes generate radiation powerful enough to cause permanent eye injury or skin burns from direct or scattered beams. Lower-class lasers do not typically require physical barriers.
What protection ratings are available?
Curtains come in three tiers: single layer at 425 W/cm², double layer at 575 W/cm², and triple layer at 2,150 W/cm² — all rated for 100 seconds of exposure at 1064 nm with a 1 mm beam diameter.
Are laser blocking curtains suitable for fibre laser welding?
Yes. Double and triple layer curtains are specifically recommended for fibre laser welding environments, including handheld laser welding systems such as Lightweld. Standard or custom configurations are available for welding cell enclosures.
How long does it take to install a laser curtain enclosure?
Most laser curtain systems install in four to eight hours using ceiling or floor-mounted track hardware. Standard-size curtains join with hook-and-loop fasteners, and custom configurations are designed to fit your exact dimensions.
What layout configurations are available?
Curtains mount on tracks that allow curved, straight, and combination configurations. Common layouts include room dividers, doorway surrounds, workspace partitions, table enclosures, and complete laser welding cell surrounds.
Do laser curtains eliminate the need for safety eyewear inside the enclosure?
No. Laser blocking curtains protect personnel outside the laser controlled area. Operators working inside the enclosure must still wear appropriate laser protective eyewear rated for the specific wavelength and power density of the laser in use.
Can laser blocking curtains include ESD or cleanroom layers?
Yes. Electrostatic discharge (ESD) and cleanroom layers are available as additional options on all single, double, and triple layer curtain systems. These are essential for electronics manufacturing and controlled environments.
What happens if my application exceeds the curtain protection rating?
For applications exceeding the triple-layer rating of 2,150 W/cm², rigid panel barriers are recommended as an alternative. These provide higher irradiance protection for extreme high-power laser environments.
Laser Blocking Curtain Specifications at a Glance
Key Performance Data
- Single layer rating: 425 W/cm² for 100 sec
- Double layer rating: 575 W/cm² for 100 sec
- Triple layer rating: 2,150 W/cm² for 100 sec
- Test standard: 1064 nm, 1 mm beam diameter
- ESD and cleanroom layers: available on all tiers
- Cost saving vs rigid: up to 70%
Why Facilities Choose Laser Blocking Curtains
Cost Efficient
Install a certified laser enclosure at roughly 30% of the cost of a rigid steel or polycarbonate cabin.
Flexible Layout
Ceiling or floor-mounted track with curved, straight, and combination configurations. Hook-and-loop joins for easy reconfiguration.
Beam Containment
Withstand direct and scattered laser light from Class 3B and Class 4 sources, rated up to 2,150 W/cm² for 100 seconds.
Standards Compliant
Designed by qualified Laser Safety Officers. CE certified to EN 60825-4 and referenced under ANSI Z136.
ESD Protection
Optional antistatic and cleanroom layers available on all single, double, and triple layer curtain systems.
Conclusion
When a facility operates Class 3B or Class 4 lasers, containing stray beam radiation is not optional — it is an engineering control requirement under both ANSI Z136.1 and EN 60825-4. Laser blocking curtains deliver that containment in single, double, and triple layer options rated up to 2,150 W/cm², at a fraction of the cost and installation time of rigid enclosures.
The combination of certified beam protection, flexible track-mounted configurations, and significant cost savings over permanent enclosures makes curtain systems the preferred choice for manufacturing, medical, and research environments. If your facility needs laser containment that adapts as your operations evolve, our customisable curtain solutions are designed by Laser Safety Officers to fit your exact requirements.
