OVERVIEW
Vinyl welding booth curtains are opaque solid curtains or strip curtains that limit line of sight into the welding cell. These welding booth curtains can be rolled sideways for solid style or walked through for strip style to gain entry into the welding booth. They are inexpensive, quick to install, and easy to move when needed.
The Industry Standard
3 Styles To Choose From
Welding Booth Strips
Welding booth strip curtains are one of the most common styles of weld cell curtains. They are static mounts and do not need to be rolled back into place once the welder enters the booth.

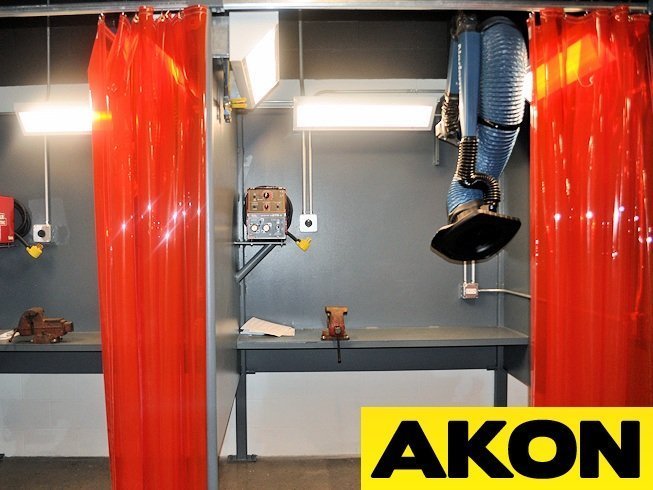

Welding Booth Curtains

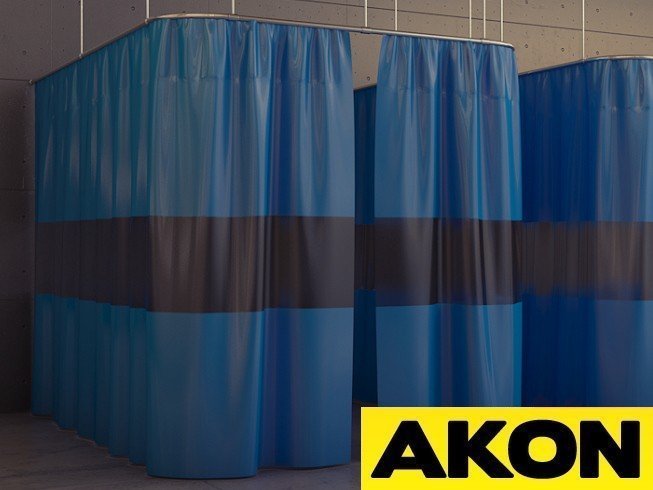

Use a steel tube, wire, or our curtain track to mount these side to side curtains. Welding booth curtains are considered the most economical of all of the welding dividers due to its simple design and quick installation.
Welding Booth Roll Up
A new design in the welding world is the roll up welding booth curtain. Pull down on the strap to lower, and the ratchet holds the safety welding shade in place. Pull the strap again and it rolls up.
Industrial And Educational Uses
Industrial and Manufacturing
Welding is a growing industry and AKON is the leader in providing safety weld curtains to major manufacturing facilities. Unlike trade-schools, manufacturing facilities have a demand for curtains of all shapes, sizes, and configurations to meet demanding production needs. We customize the curtains to your exact requirements.
Colleges And Trade Schools
Welding booths are used in high schools, colleges, and trade schools all over the country. By using the AKON welding vinyl curtains, these training facilities can provide a safe learning and work environment. Regardless of your needs, we can furnish and provide the correct vinyl weld curtains to keep your students or staff safe.
Home Work Shop
For home workshops, welding curtains are crucial to provide a safe and regulated surroundings for your welding efforts. Using AKON welding vinyl curtains will help to shield your workspace from damaging UV rays, spatter, and sparks, so guaranteeing a safe place for your welding operations.
Material Options
Opaque – 18oz
- Vinyl coated polyester reinforced with scrim
- Meets California Fire Marshal requirements CFM
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- All colors are the same price
- 18 oz = 0.5 mm thick · 610 g/m²
Tinted – 14mil, 40mil
- Ideal for welding applications
- Blocks most UV radiation for welding
- Meets California Fire Marshal requirements CFM
- Finished edges for clean crisp appearance
- Double or triple hems used where needed for longevity
- 14 mil = 0.3556 mm thick · 439 g/m²
- 40 mil = 1 mm thick · 1,206 g/m²
Strips – 8",12"
- Ideal for welding applications
- Blocks most UV radiation for welding
- Meets California Fire Marshal requirements CFM
- 203.2 mm wide strips · 2.032 mm thick (ideal for booths)
- 304.8 mm wide strips · 3.048 mm thick
- Studded strip or steel tube mounted
Mounting Options

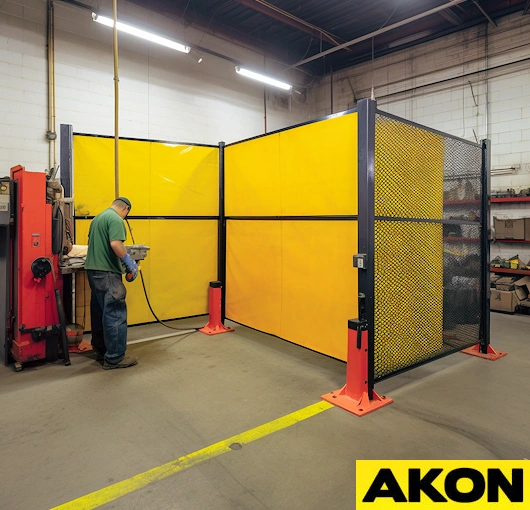

Free-standing
If you have no structure to attach to, then you can use the upright floor columns for up to 4.5m in height. Ideal when ceiling hanging hardware options cannot be used or are not ideal. The 16 gauge galvanized steel hardware is designed for rugged industrial use and is quick to deploy and to take down if need be. Depending on the height required, 5cm or 7cm OD tubular steel is utilized. Bolt together design allows for modifications in the future should your welding work cell needs change. The welding curtains can be static zip tied to the frame or rolling curtain hooks.
Curtain Track
The curtain can be hung using steel tracks with roller hooks. This allows the curtain to be rolled out of the way when not needed. It also allows for easy material flow into and out of work areas. Even if the curtains do not need to roll, this method is very efficient and gives the installation a very clean look. Choose from 5 different mounting styles based on the structure you are attaching to.
S- Hooks
If you have a metal bar, tube or steel sire already in place, then simple S-hooks are a common method for hanging a retractable welding curtain shade. They are available in 2.5cm and 5cm sizes.
Wall Mount End Stops
This style uses the same rolling track, as shown, above but is supported only from the left and right sides of the track. The end stops anchor to a vertical surface and eliminate the need to support the track from above, below or in the middle. This design allows the curtains to span up to 2.4m.
