Home / Industrial Curtains / Industrial Mezzanine Curtains

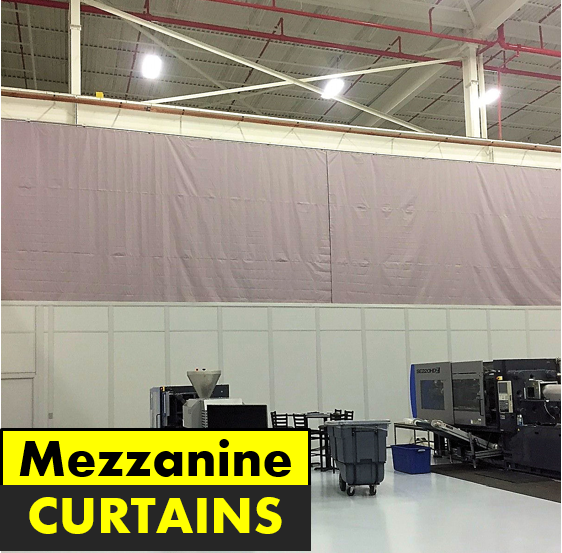

Industrial Mezzanine Curtains

Industrial-Mezzanine-Curtains

OVERVIEW

AKON’s custom made industrial mezzanine curtains are a great choice if you want to create a safe working environment. These curtains are exceptionally useful in facilities with high ceilings such as warehouses or large factories. You are free to choose a custom layout, the materials, colors, applications, and more. Our industrial mezzanine curtains will keep dust, moisture, and other nuisances at bay. What we offer is a great, short or long-term protection solution with affordable prices. If necessary, you can deconstruct and move them to a different location.

Build My Curtain

Industrial Mezzanine Curtains Key Benefits

Dust control

Industrial mezzanine structures often suffer from dust. Numerous issues could occur from it. Dust buildup can create a dangerous working environment for employees. Irritations to the skin, eyes, or the respiratory system are possible issues. A dusty floor might cause people to slip. Allergies are also possible. Dust buildup can also damage the equipment. Your machines might work less effectively and maintenance costs will rise significantly. A less common, but dangerous scenario would be the combustive dust explosion. Should it happen, there could be dire consequences. Keep everything tidy and safe by preparing in advance.

Temperature control

Temperature control could be expensive during summers or winters. Allowing the area to become too hot or cold might be dangerous for the health of your employees or cause damage to your equipment. Air conditioning is a solution, but it alone is often not enough. It is not an energy efficient solution, as costs will skyrocket if you want to heat up or cool down the entire building. By setting up a curtain around your mezzanine, the temperatures will remain stable and thus keep the employees, equipment, and products safe. The curtains also allow for airflow from the outside.

Visual and noise control

With AKON’s industrial mezzanine curtains, you will be able to easily hide unsightly equipment for storage. Keep anyone on the outside from interfering. Easily store equipment and materials and thus create a tidy working space. Separate the mezzanine into different, smaller areas. The curtains will also help in keeping a comfortable working environment by blocking outside noise. The lack of noise will make it easy for employees to concentrate.

Humidity control

Humidity control is of vital importance for different industrial complexes. Sometimes, you need to keep the air as dry as possible to avoid equipment damage. Sometimes, you need a higher level of air humidity which is important for keeping specific food products fresh. No matter the reason, our curtains will ensure moisture does not enter or leave the area. Moisture could be dangerous for your equipment, so the working environment must remain dry at all times. Our industrial mezzanine curtains will keep the facility cleaner, and ensure air pollution does not infiltrate the mezzanine.

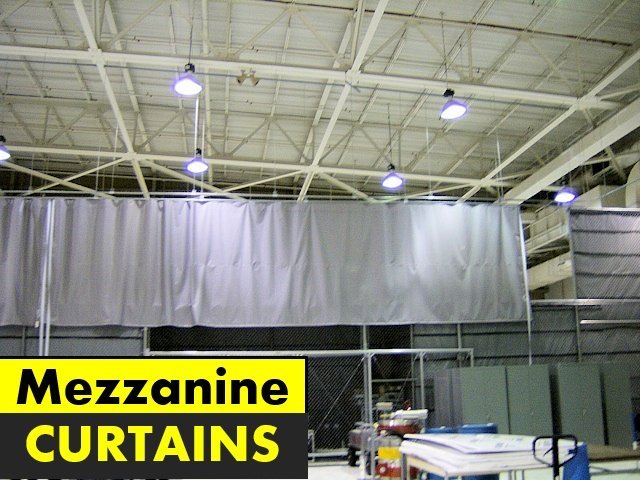

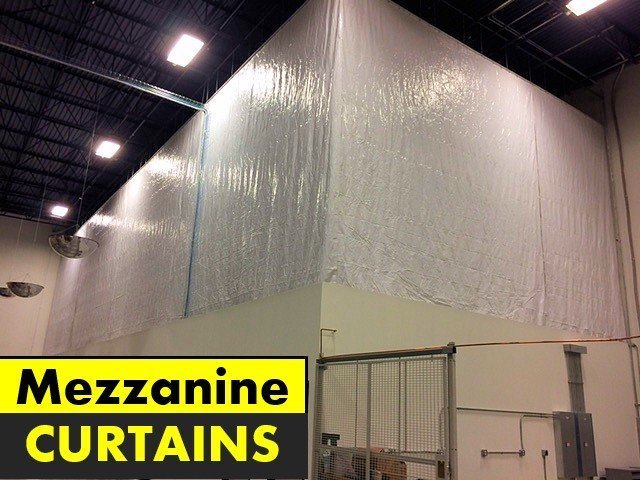

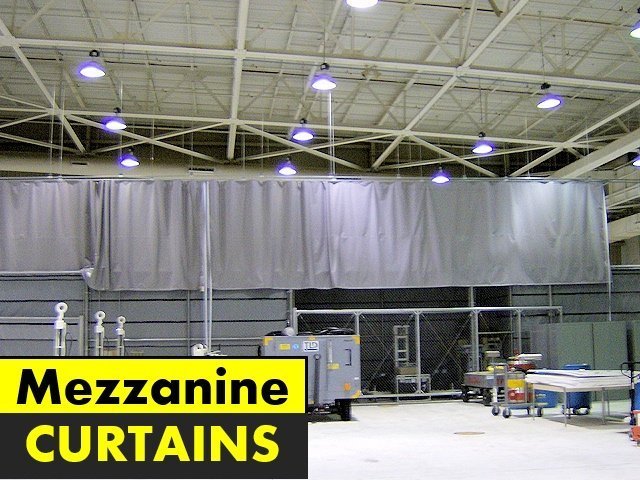

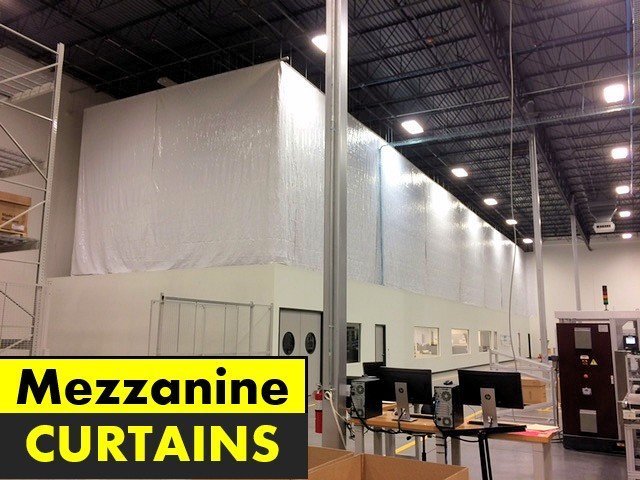

Warehouse-Mezzanine-Curtains
Warehouse-Mezzanine-Curtains
Warehouse-Mezzanine-Curtains
Warehouse-Mezzanine-Curtains

An Efficient And Flexible Design

warehouse-mezzanine-curtains

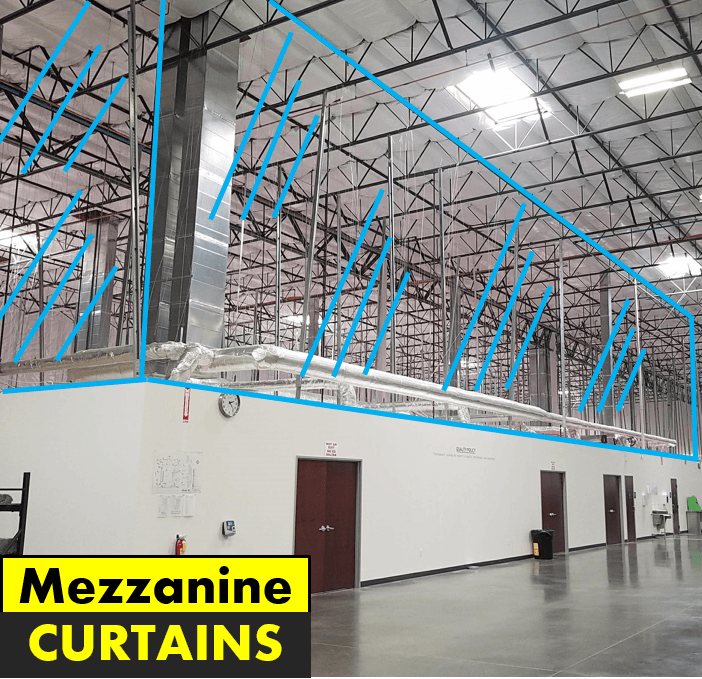

Close Off Warehouse Space Above Offices

The industrial mezzanine curtains are custom made after your specifications. Clicking on the quote form will help you choose a layout, color, material, special application, size, and more. The curtains are a great solution if you need to set up a wall quickly or to close of space above an office in your warehouse. You can easily move and re-purpose them in other areas or facilities. You will be able to easily divide different areas and create a safe working environment for all. These curtains are less costly than rigid walls, durable, and require few maintenance efforts. The Industrial mezzanine curtains are also ideal for separating workers for welding, washing, packaging, and other operations. One great benefit to our curtains would be their ease of use. You can set up and utilize them for almost any facility regardless of building height or width. We can also offer you different accessories such as clear vision panels for better visibility, valances for seal the empty space above the curtain, sweeps to seal off the empty floor space, anchor straps to hold the curtains stable, chain weights, Velcro, and others.

Hardware Curtains Colors Accessories Benefits How to Measure
Hardware

Curtain Track

  • 16 gauge galvanized steel tracks
  • Nylon roller hooks for easy opening
  • 6 mounting styles to connect to various structures
  • Free standing hardware for up to 20' in height

Static Mount Hardware

Industrial Curtain Hanging Options

  • Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
  • Grommets Only - You can then use many DIY methods to hang the curtains.
  • Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Curtains

Opaque Curtains - 13oz, 18oz, 22oz

  • Vinyl coated polyester reinforced with scrim
  • NFPA fire retardant, CFM fire retardant
  • 18oz and 22oz are outdoor rated
  • Finished edges for clean, crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as -25° F to 160° F
  • All colors are the same price
  • 13oz = .016″ thick, 1.44 oz. per square foot
  • 18oz = .020″ thick, 2.0 oz. per square foot (Most Common)
  • 22oz = .024″ thick, 2.44 oz. per square foot

Clear Curtains - 20mil and 40mil

  • Clear double polished PVC
  • NFPA fire retardant, CFM fire retardant
  • Outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to 140° F
  • 20 mil = 20mil thick, 1.98 oz. per square foot (Most Common)
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Tinted Curtains - 14mil and 40mil

  • Ideal for welding applications
  • Blocks most UV radiation for welding
  • NFPA fire retardant, CFM fire retardant
  • 40mil is outdoor rated
  • Finished edges for clean crisp appearance
  • Double or triple hems used where needed for longevity
  • Ideal for temperatures going as low as 10° F to to 140° F
  • 14 mil = 14mil thick, 1.44 oz. per square foot (Most Common)
  • 40 mil = 40mil thick, 3.95 oz. per square foot

Colors

18oz Vinyl

color-options-18oz

Warning: Please note that the colors in the video are only a representation.
On-site colors may differ slightly due to lighting conditions and the image
settings of your digital device. For exact color needs, please ask for a sample.



14mil Vinyl Tinted

tinted welding curtain colors

Accessories

Curtain Features



Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. Standard vision panels
are 54" in height but can be made to any size.



Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the roof's slope.



Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors, and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.



bottom curtain anchor

Anchor Straps

Velcro straps hold your curtain in place for
a light breeze or power washing. These
anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 4'.



Seal Velcro

Seal Velcro, also known as adhesive Velcro, sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.



Chain Weights

If you have a slight breeze or are power washing
near the curtain, then we can add a galvanized
3/16" chain weight to the bottom of the curtain.



Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access points for
larger curtains and makes them easier to
install.



Magnets

Seal magnets are an ideal way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.



Entry Options

Sewn-In Strip Doors

Strip doors that are sewn into the curtain are
Ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.



Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.



Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy-duty doors can
take a lot of abuse from carts, forklifts, or
heavy foot traffic. View Styles



Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements
and size. View Styles

Benefits

Key Benefits

  • Less expensive than rigid walls
  • Can be taken down quickly when not needed
  • Can be re-purposed in other areas
  • Ability to purchase more curtains and attach to existing curtains
  • Divide work areas quickly
  • Industrial curtains improve worker safety
  • Quick to roll out of way when not in use
  • Easy to clean with slick surface of Vinyl
  • Contain air migration, odors, dust, over-spray
  • Lifetime warranty on all hardware and 5 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How to Measure

Width

  • Measure the distance that you are trying to cover
    • We will generally add 5% to this dimension to give your curtain proper drape.
    • When you receive your quote, the hardware width will be the actual width.

Height

  • Measure the distance from the floor to the mounting point
    • We will subtract 3" to account for the hardware to keep your curtain just off of the ground.
      • If you want the floor sweep option, we also subtract the 3". This will allow the floor sweep to lay slightly on the floor while the main curtain is just off of the floor.
      • If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope. More Info On Here On Slope Ceilings



Need More Help? Watch This




Common Questions


What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

Spacing from Track



What are the dimensions of the track?



Can the track be cut to size on site?
Yes, the track is made to be field cut on site using a hack saw or Sawzall.



How much width does the radius corner add to the length?
The radius corner is 24” diameter. The radius corner will add 2 feet to each dimension.
For example, if you have 120” of curtain track then a radius corner will be make the overall length of side “A” 120”+24”=144”



How does the track go together?
The track is modular in design and will arrive in pieces that have a simple bolt together design.



How close together do I need the track supports?
The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 5' spacing.



Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.



How hard is it to install the industrial curtain track?
It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.



Will the track rust? Can it be used in wet environments?
The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

Build Yours Now

Send Me a Quote

Filed Under: Industrial Curtains Tagged With: Industrial Mezzanine Curtains

Get In Touch!

+353 21 203 2051

Email Support

Ireland Headquarters
Cork, Ireland

Corporate Headquarters
Fernandina Beach, FL

Testimonials

People all over the world trust AKON Curtains to provide industrial curtain solutions. Our custom-made barriers improve safety, productivity, and cleanliness in places like factories and warehouses. With experienced help and quick turnaround times, AKON is the best company to work with for long-lasting, affordable solutions that will work in the UK and beyond.

When you see the name AKON Curtains, you know they are high quality. Our industrial curtains are made with high-quality materials and excellent craftsmanship so they can handle the roughest conditions. AKON gives you long-lasting performance you can rely, whether you need to enclose, separate, or protect something. We make sure your workspace stays efficient, safe, and professional by making things to exact specifications for UK industries.

We don't think that one size fits all at AKON Curtains. We don't use generic, off-the-shelf curtains; every one is handcrafted just for you. We make sure that each solution fits precisely, whether it's in terms of size, substance, or use. Get the performance, fit, and function your workspace needs, with the high-quality craftsmanship that sets us distinct.

About Us

AKON Curtains is a global supplier of industrial curtains and warehouse separation dividers. Our staff is trained to provide custom solutions, ensuring your cover or curtain project is a success. LEARN MORE ABOUT US

Satisfied Customers

Product Links

Industrial Curtains

General Use Curtains

Product Links

Outdoor Curtains

Outdoor Curtains

Resources

Tracking & Ordering

Rapid Quote
Order Your Quote
Track Your Order

Company

Home

Contact Us
About Us
Terms
Warranty
Privacy Statement
Mission Statement
