Width

• Measure the distance that you are trying to cover.
  • Add 5% to that dimension for proper drape and coverage

Height

• Measure the distance from the floor to the mounting point.
  • Take that dimension and subtract 3 inches
    • By subtracting 3" for the hardware this will keep your curtain just off of the floor and allow the floor sweep to lay slightly on the floor.

Need More Help? Watch This

Common Questions

• Standard curtains have approximately 3.75 to 1″ of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

• Yes, the track is made to be field cut on site using a hack saw or sawzall.

• The track is modular in design and will arrive in pieces that have a simple bolt together design.

• The track should be supported approximately every 5' with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively light weight curtain then you could space the supports out to about 8' apart. You will receive enough track supports with your order to achieve this 5' spacing.

• Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 3-5'.

• It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.

• The track is Hot-dip galvanizing (HDG) which is often used to protect steel from corrosion in some of the harshest environments imaginable, yet it provides maintenance-free longevity for decades. The corrosion resistance of hot-dip galvanizing varies according to its surroundings but generally corrodes at a rate of 1/30 of bare steel in the same environment.

Outer Layers

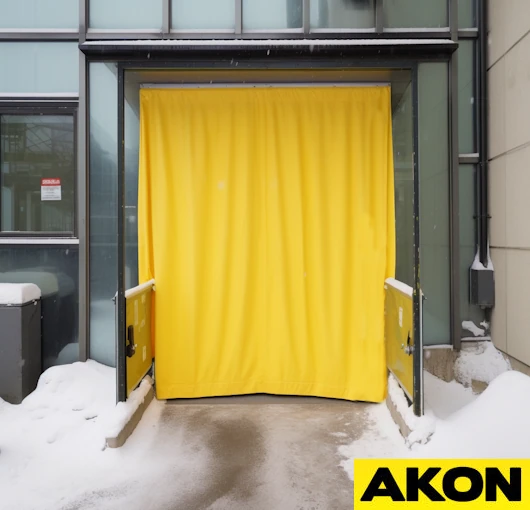

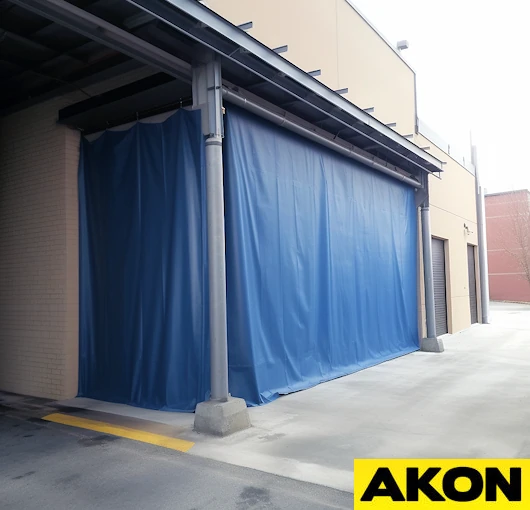

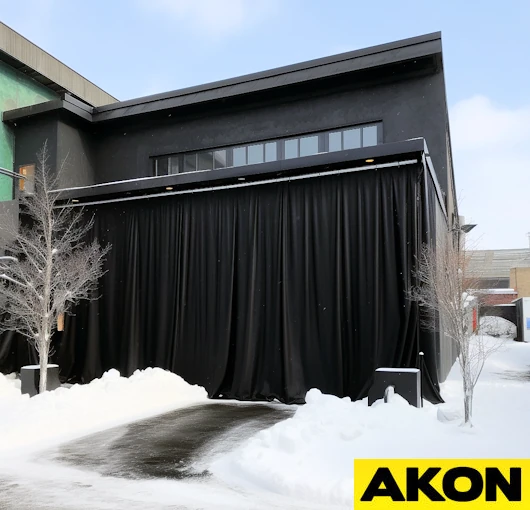

the outer layers of our insulated curtains are made of both 13oz and 18 oz vinyl which is reinforced with a polyester scrim. It is waterproof fabric that is easy to wash down should it become dirty. The material will not absorb liquids and stains so it will look great for many years. 18 oz coated vinyl is ideal for outdoors for temperatures going as low as -20° F or -28° C. Please be aware that if folded below these temperatures or blown around in the wind the vinyl will likely crack. If you select outdoor use on this form you will receive the 18oz material.

Inner Batting

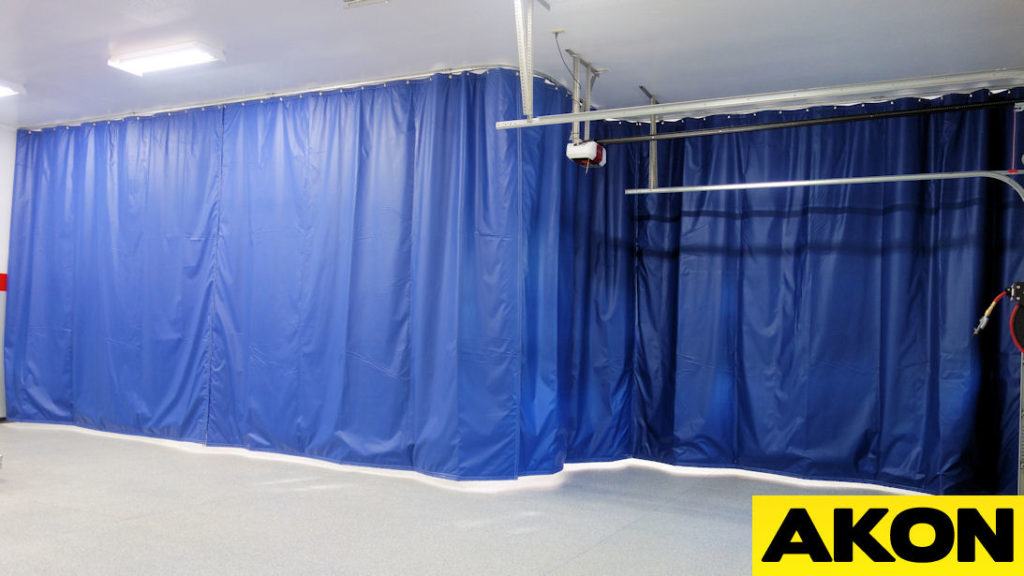

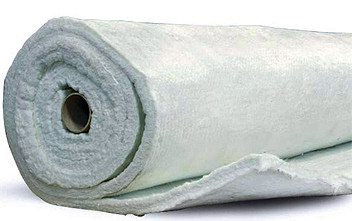

The inside insulation is a poly fiber insulation that does not use fiberglass. The material is wedged inside of the skins and stitched in place so that it will not settle towards the bottom. The insulated thermal garage curtains get their insulating properties from the air space that this batting creates.

Weights | Thickness

• R3 – .282″ Thick, 3.8 oz. per square foot
• R6 – .532″ Thick, 4.75 oz. per square foot

To calculate take your (W x H) x (oz. per square foot) = Total Weight lbs

Curtain Features

Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purling.
They can be rectangular or follow the slope of the roof.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are 6″ tall and as wide
as the entire length of the curtain. These are
ideal for controlling dust, fumes, odors and
other undesirable elements. They can also be
replaced in the future should the friction from
the floor wear them out.

Anchor Straps

Velcro straps hold your curtain in place if wind
is present or a more secure curtain is required.
These anchors feature Velcro straps which loop
through a D-ring which is anchored into the
cement floor. Typically spaced every 4'.

Seal Velcro

Seal Velcro also known as adhesive Velcro sticks
onto your curtain and can be installed in the field.
Please note that this is not ideal for cold
temperature applications or high-frequency use.

Chain Weights

If you have a slight breeze or are power washing
near the curtain then we can add a galvanized
3/16" chain weight to the bottom of the curtain.

Connecting Curtains

Velcro

Velco is used to connect curtain sections
together to form larger curtain walls. The
velcro also serves as an access points for
larger curtains and makes them easier to
install.

Magnets

Seal magnets are an idea way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.

Entry Options

Sewn In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.

Free Standing Strip Doors

For motorized traffic a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall ensuring longevity
and performance for motor traffic and high use.

Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy duty doors can
take a lot of abuse from carts, fork lifts or
heavy foot traffic.

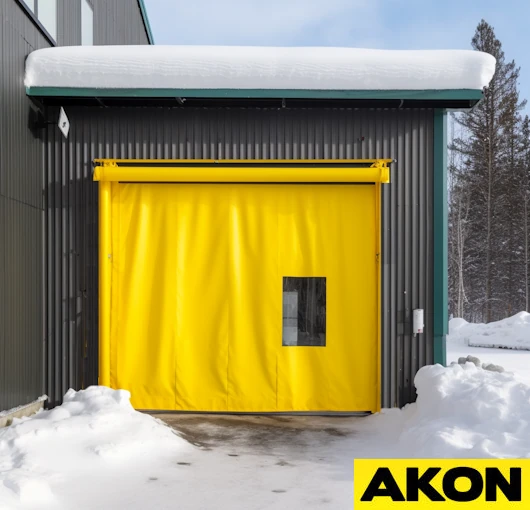

Roll Up Doors

Supported with a free-standing steel frame
the power roll up doors can be opened and
closed via remote from a fork lift. Door
styles and prices vary based on frequency
of opening and closing, speed requirements
and size.

Colors

Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purposed in other areas
• Ability to purchase more insulated curtains and attach to existing curtains
• Divide work areas quickly
• Industrial insulated curtains improve worker safety
• Quick to roll out of way when not in use
• Easy to clean with slick surface of Vinyl
• Also contains air migration, odors, dust, over-spray
• Lifetime warranty on all hardware and 5 year warranty on curtains

Many Layout Options

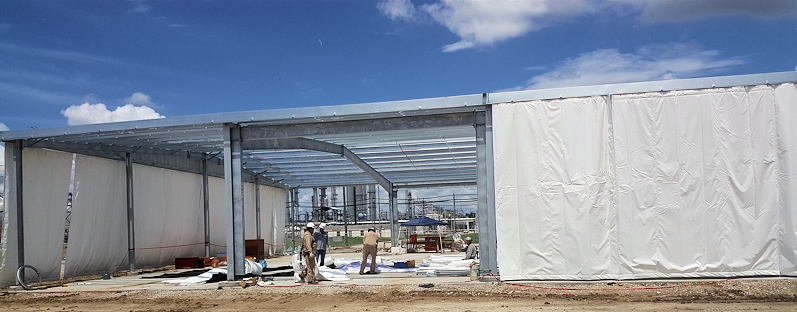

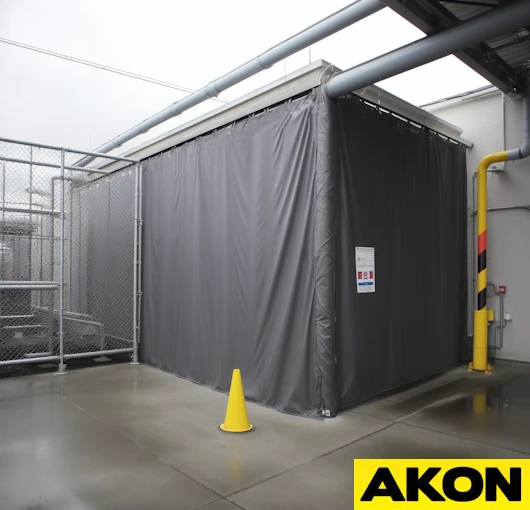

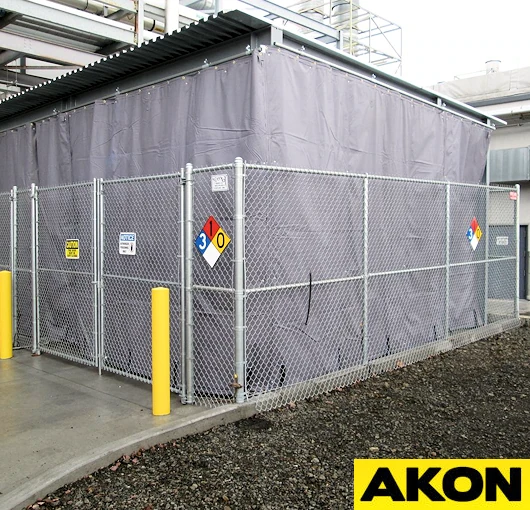

AKON can supply just about any industrial insulated curtain layout you can think of. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

How much more expensive are the industrial insulated curtain versus the standard curtains?

• Our industrial insulated curtains are about 3x the investment of our standard industrial curtains. Customers often ask if they should just purchase a standard curtain to save money. Our answer is generally based on how long you intend to use the curtain. For instance, if you plan to utilize the divider curtain for many years then you will recoup your investment with energy savings. If you only plan to use the curtain for one or two seasons then you could save money by going with the standard curtains. Keep in mind the standard industrial curtains have an R1 insulation value.

What is R Value?

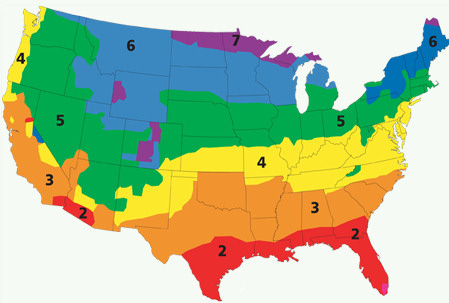

• The insulation value of a thermal insulated curtain wall is measured by what is called an R value. In basic terms, R value is the capacity of an insulating material to resist heat flow. The higher the R-value, the greater the insulating power. AKON Provides R3 and R6 insulated industrial curtains. The map below shows insulation R-Value recommendations from the U.S. Department of Energy for various regions as a point of reference.

Should I choose R3 or R6?

• We find R3 is a good fit for most applications. You really should take into consideration the map above and the length of time that you are going to be using the thermal industrial curtains. The longer you will need them along with the colder your location is will result in us recommending the higher R6 material.

When folded up how much space does it take?

• The insulated industrial curtains fold up to about 2.5" per linear foot of curtain. So a 10' wide curtain would fold up in approximately 25"

Lead Time

• Ships in 10-12 work days
• Ships on a pallet due to weight and size
• You can also specify your shipping account

Warranty

• Curtains - 5 year warranty on manufacturing defects
• Hardware - Lifetime warranty on manufacturing defects
