OVERVIEW

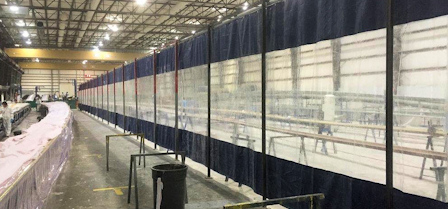

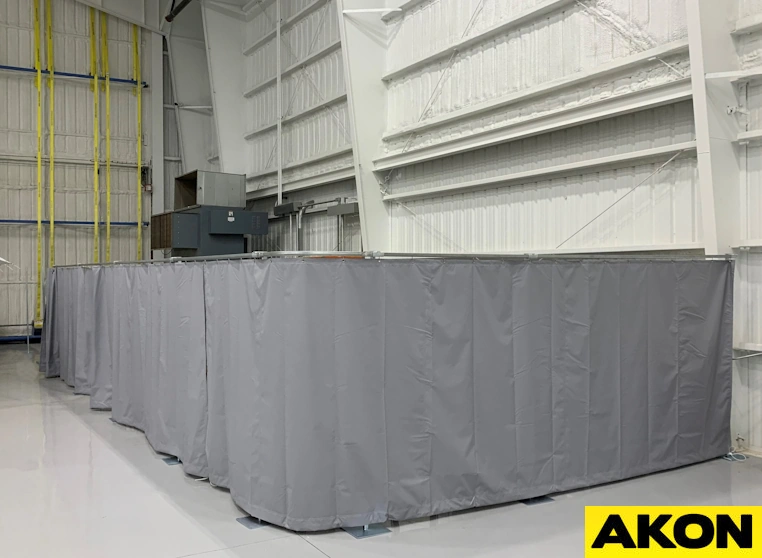

Industrial free standing curtains are supported from the floor up with base plates. Ideal when top down ceiling mounting options cannot be used or are not ideal. The 16 gauge galvanized steel hardware is designed for rugged industrial use and is quick to deploy and to take down if need be. The freestanding uprights are spaced every 2.4 to 3 meters allowing for complete access when the curtain is pulled back. Entry options such as strip curtains can also be added for frequent access.
Easy Install
No special tools are required. Bolt together design is quick to install and curtains quickly hang on roller hooks or zip ties.
Inexpensive
Free Standing Industrial curtains are about 1/3rd of the cost of other separation methods such as rigid walls or panels and are easy to store.
Separate Workers
Industrial curtain walls are ideal for separating workers for welding, washing, packaging and many other operations.
Control Noise
Industrial curtains help reduce noise due to the thick PVC they are made from which makes for a more comfortable work environment.
Modular Components
Partition Floor Space
Made To Your Specifications

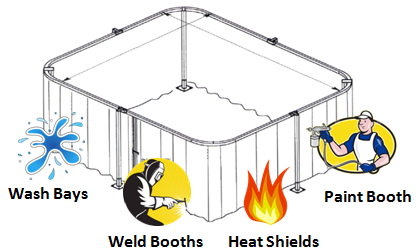

Ideal Solutions For
- Work Cells
- Dust Control Processes

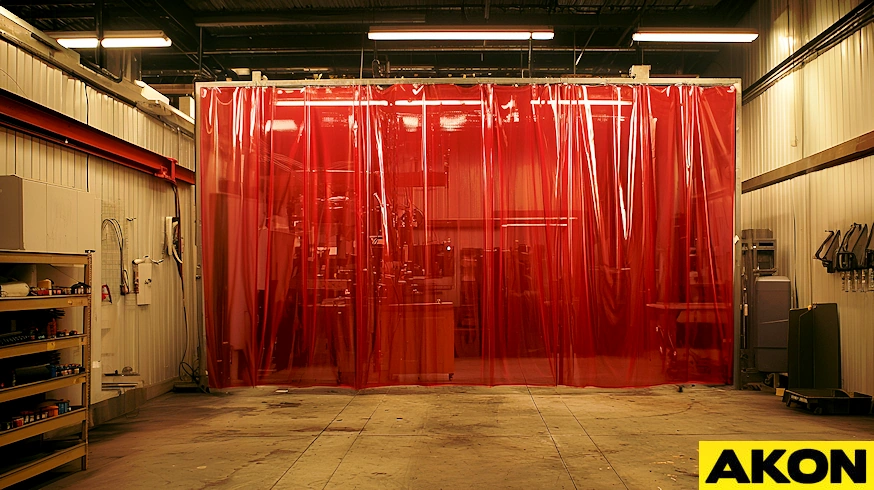

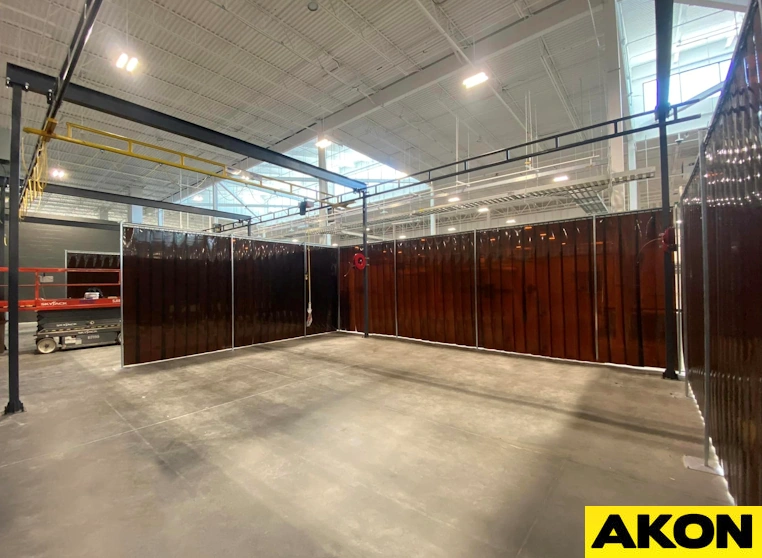

- Welding Stations
- Grinding Stations
- Production Segmentation

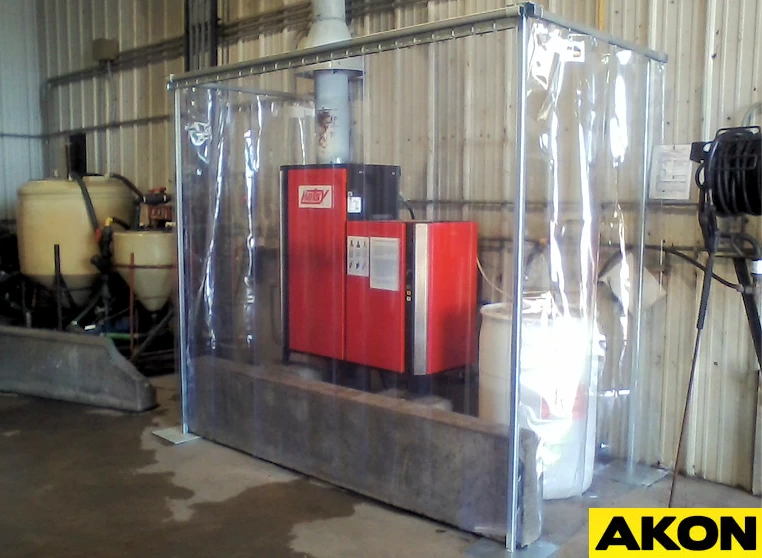

- Wash Bay Booth
- Painting Booth
- Privacy Divider
Custom Made Per Application

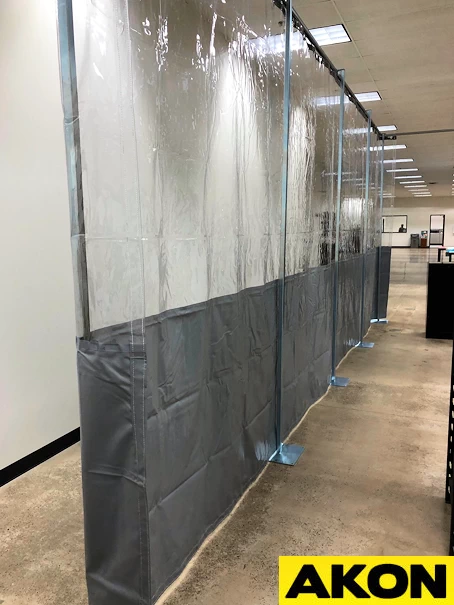

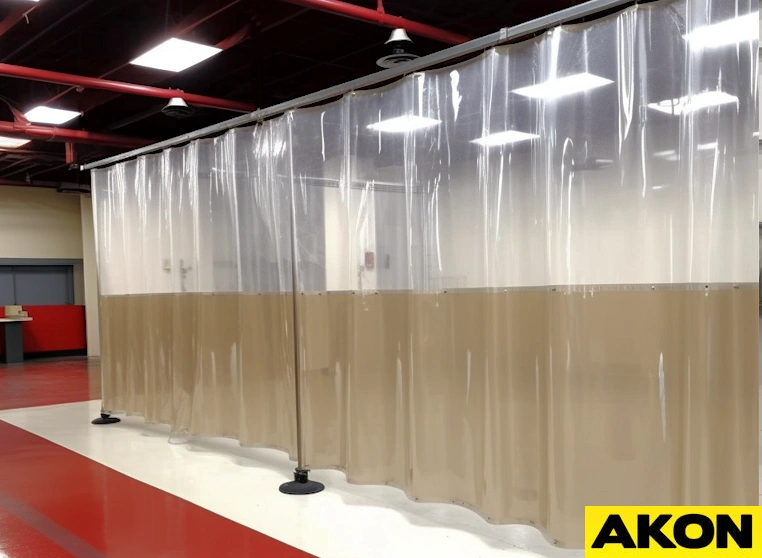

The free-standing curtains are custom made to suit your application. You can have any width you need and up to 4.57m in height. There are two components to the setup which includes the industrial curtains and the hardware. The curtains come in many different colours and several different materials based on your needs. Typically, they are 18oz Reinforced Vinyl for opaque colours or 20mil Vinyl for all clear curtains. You can combine static curtains with operable side-to-side curtains and strip curtains with solid curtains.
Choose Strip or Solid Walls

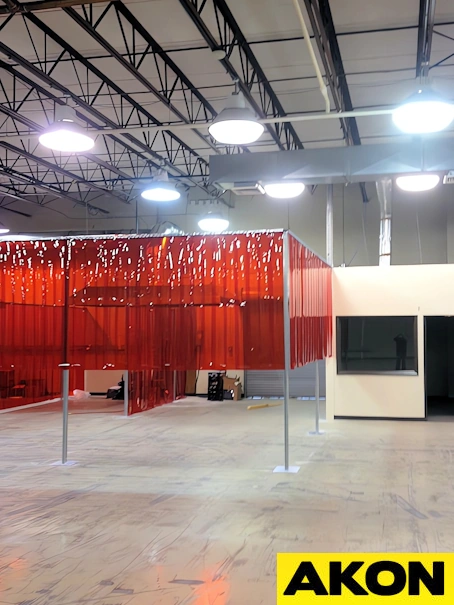

Strip Curtains

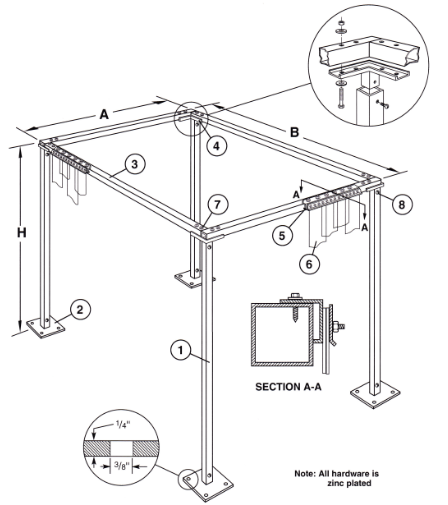

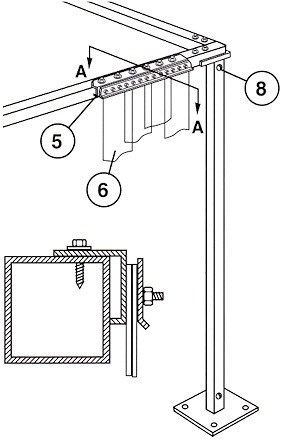

Strip Curtain Hardware

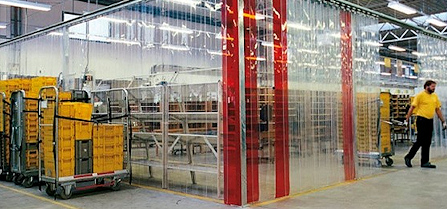

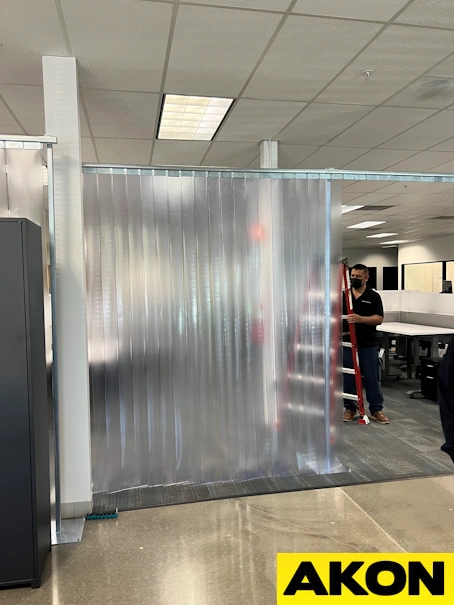

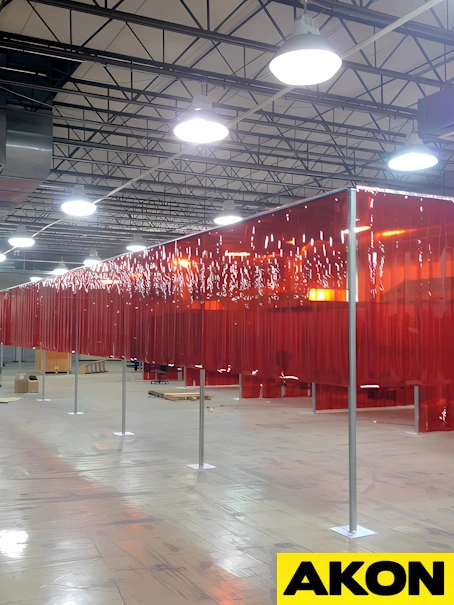

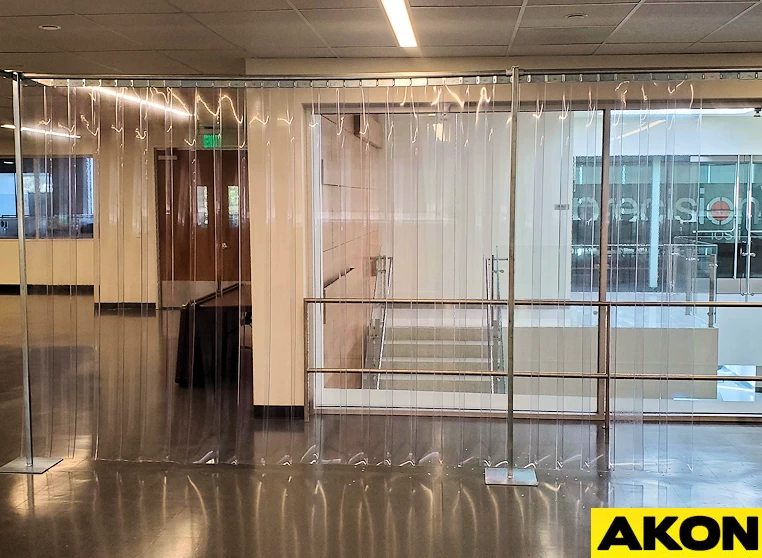

In this setup solid PVC strip curtains are bolted to the frame. The strips allow people and product to move into and out of the enclosure quickly at almost any location. With this set up, there is no need to pull a curtain back to allow access which will in turn increase efficiency for high traffic applications. The strips are clear for a line of sight and can easily be changed out if they get damaged or worn out.

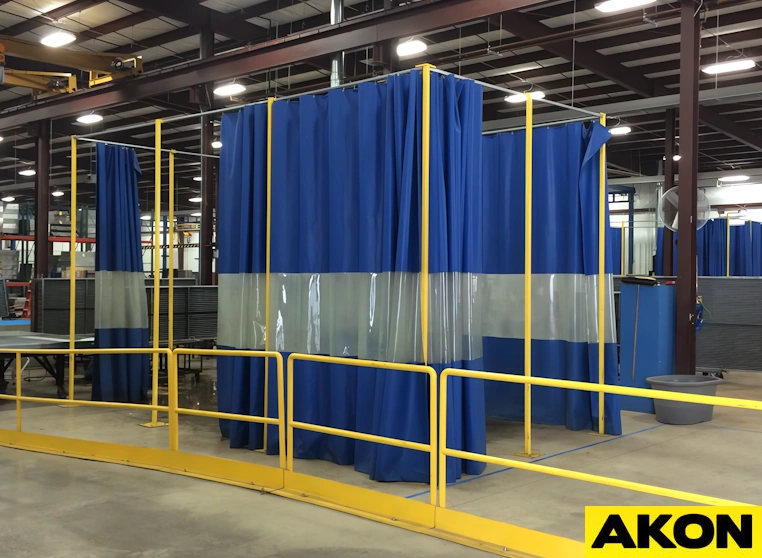

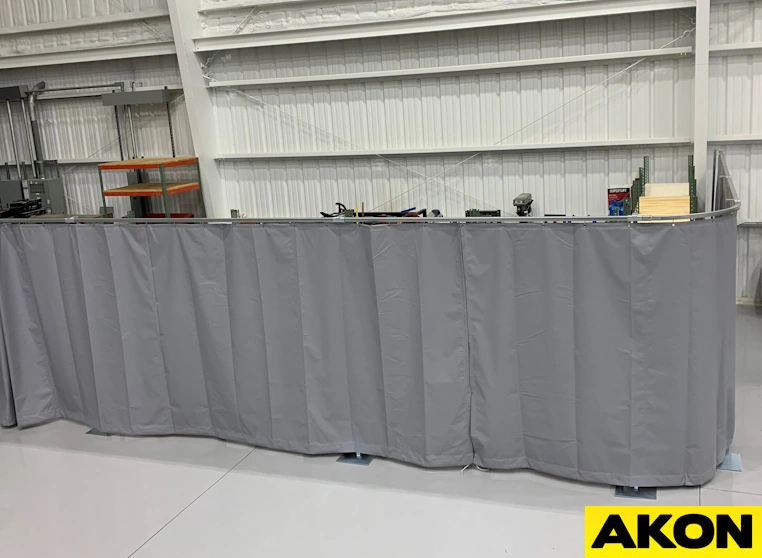

Solid Curtains
Solid Curtain Hardware

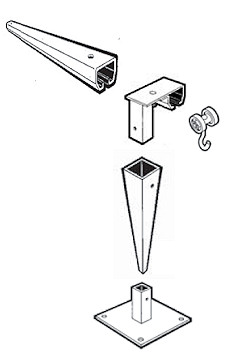

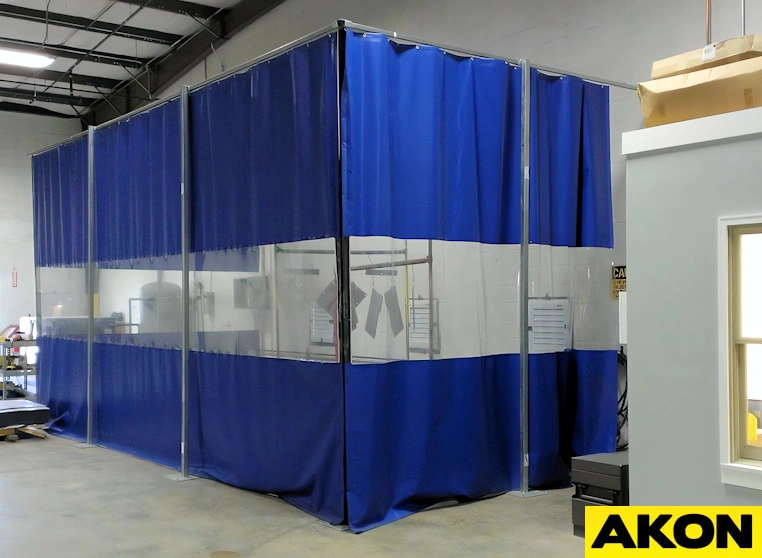

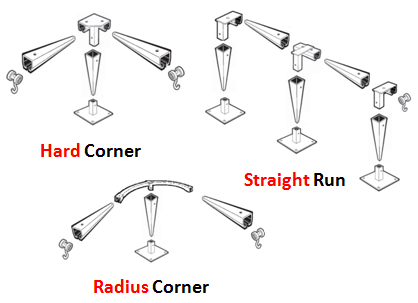

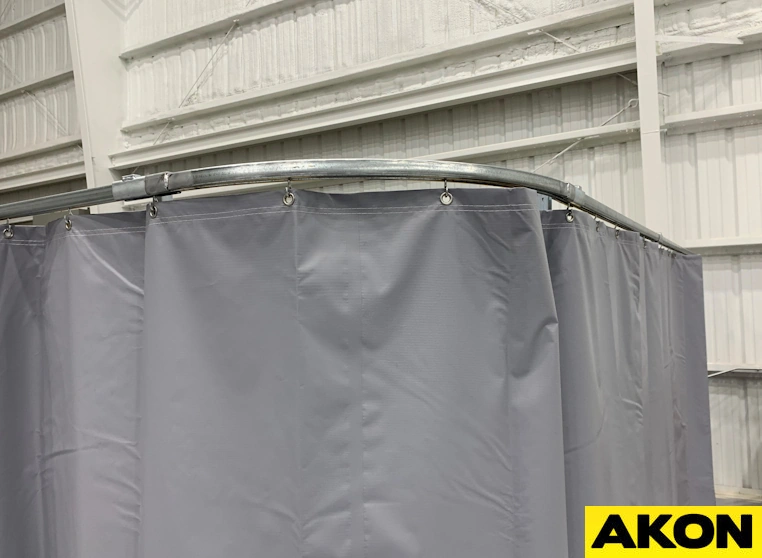

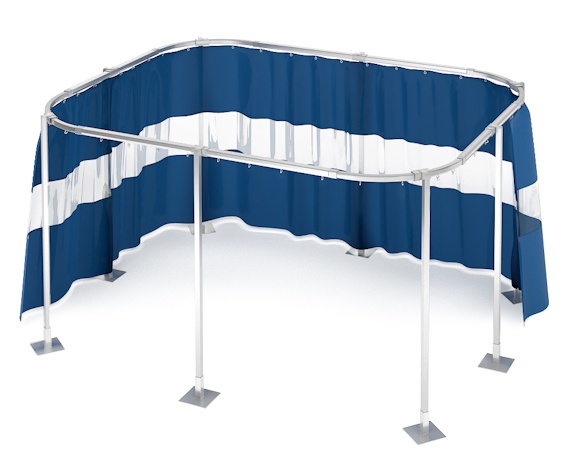

Utilizing most of the same hardware as static hardware, the rolling curtain hardware allows for side-to-side movement of the curtain walls. These Industrial Free Standing Curtains roll on curtain hooks and can have hard corners, radius corners, or no corners in case of a single sided setup. The rolling curtain track is slightly offset of the vertical uprights so that the curtain can move freely around the enclosures with no limitations.
Optional Ceilings
Ceilings Curtains

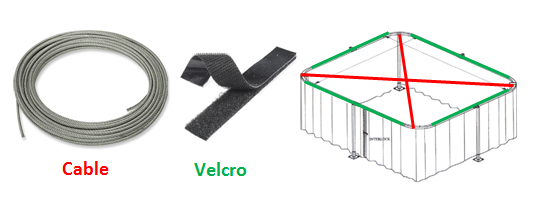

If your application requires a ceiling, Akon can provide that as well. The ceilings are a 14mil clear Vinyl that drapes over the top of the enclosure. The clear material allows light into the free-standing enclosure while containing or keeping out dust and debris. The ceilings are held up with aircraft cable (shown in red below and supplied by the customer) which spans across the top hardware and then Velcro (shown in green below) attaches to the Vinyl to the frame.

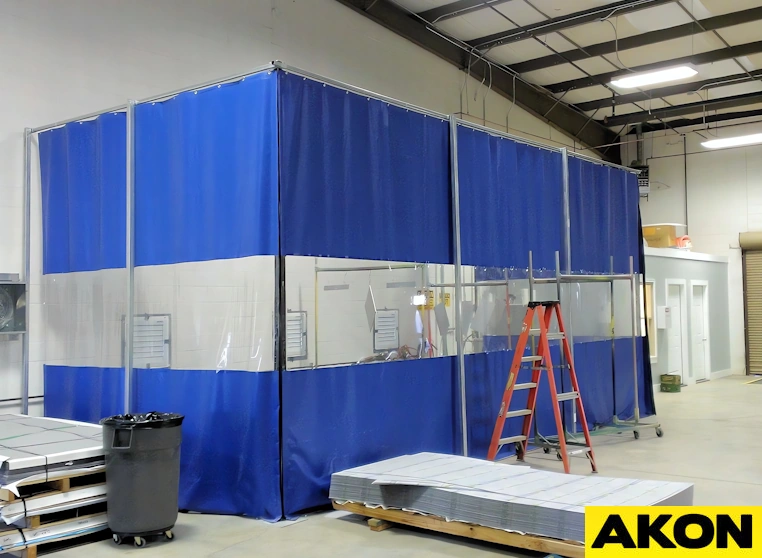

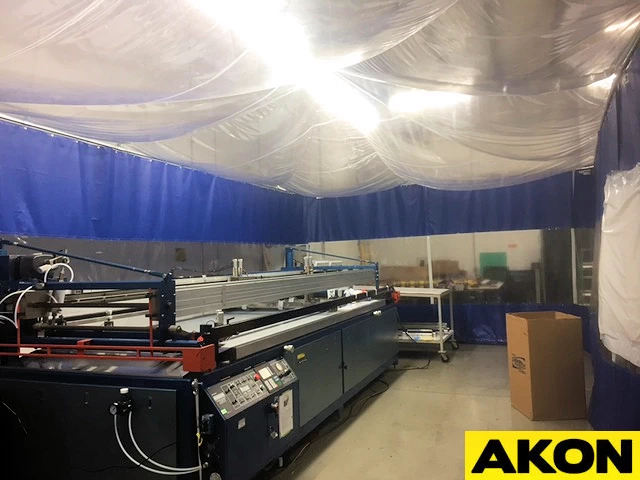

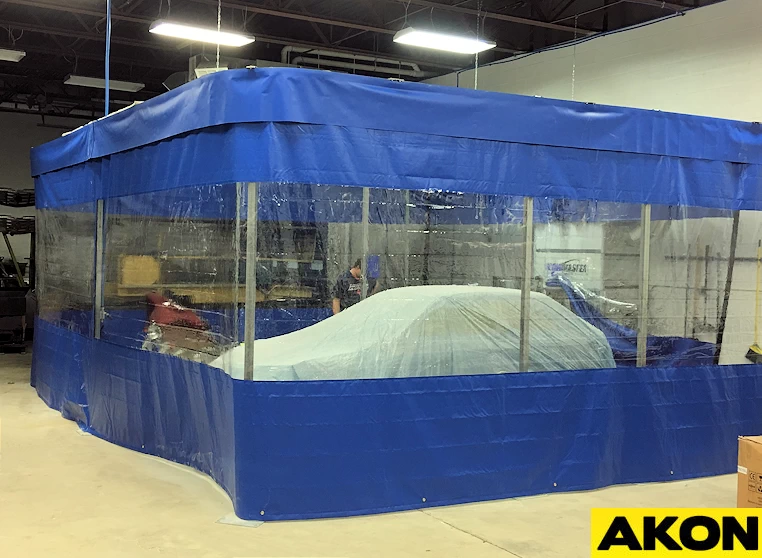

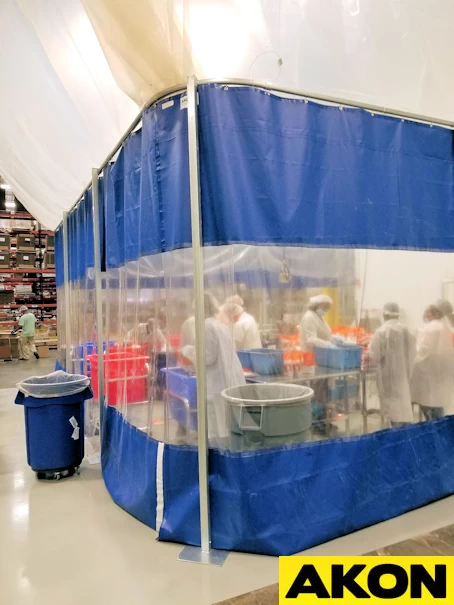

Free Standing Dust Enclosures With Ceilings

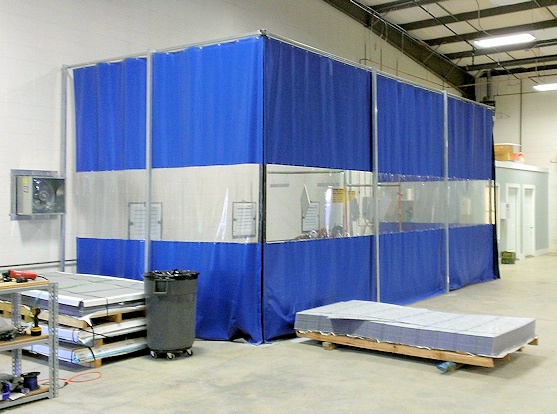

One of the most common requested features of a freestanding enclosure is a ceiling/roof. When it's not possible to run the curtain all the way to the roof deck or there are instructions above the enclosure, this is an ideal setup. It is commonly used by customers to keep dust in or out of the enclosure. Some applications include automotive sanding and prep work, industrial and commercial clean rooms, and packaging processes for warehouses.
Photo Gallery
Construction
- Galvanized steel - Hot-dip galvanizing (HDG)
- Lifetime warranty

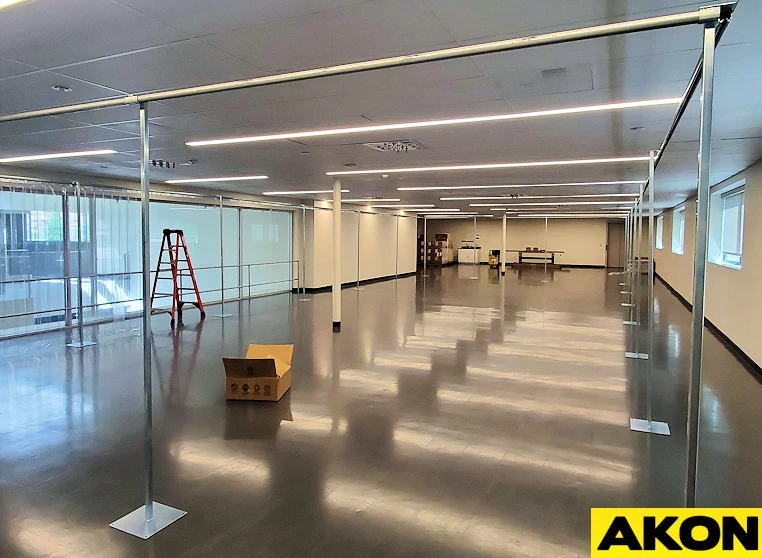

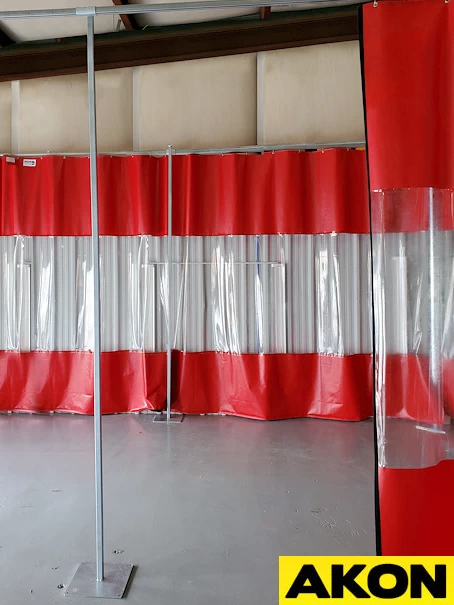

Uprights
- 5cm x 5cm OD square tubes
- Tube size selected based on curtain heights
- Max height is 30.5cm
- Maximum distance between uprights is 3m for solid

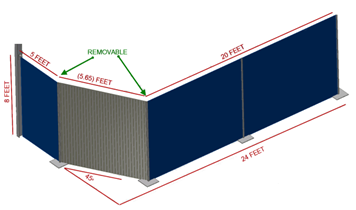

curtains and 2.4m for strip curtains. - Layout drawing provided with each order for your
approval
Base Plates
- 30.5cm x 30.5
- 9.5mm lag holes located in each corner

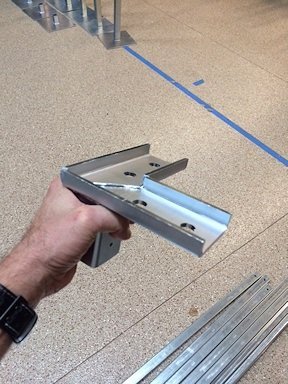

Assembly

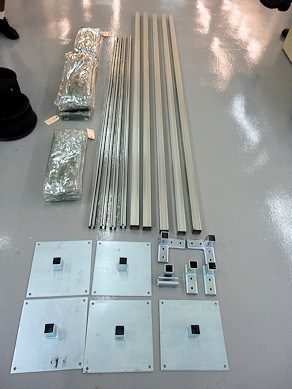

- Your order will arrive as a bolt together kit
- Simply assemble the hardware and then hang the curtains
Strip Mount Style
- Strips attach to horizontal cross members
- Strips bolt on for secure locking
- Strips can unbolt to be replaced quickly
Rolling Curtain Mount Style
- Curtains attach to nylon roller hooks
- Curtains roll side-to-side for complete access
