Furnace Curtains

extreme-heat-shield-curtains

Overview

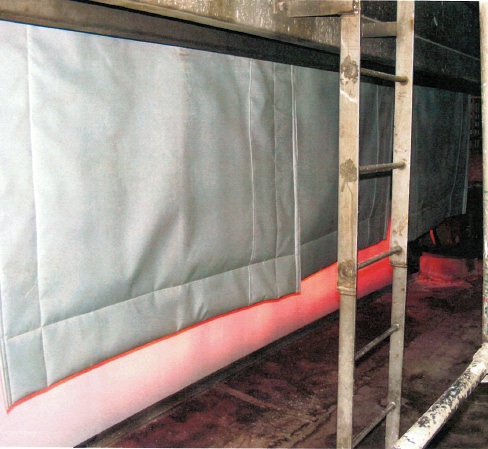

We can provide a full range of industrial furnace curtains which can easily isolate heat-producing ovens, equipment, and processes. They offer reliable protection for everyone on the outside; keeping them safe from molten splash, sparks, and other extreme heat sources. Our high heat curtains will greatly increase productivity and make your furnace more efficient by keeping the heat in. The curtains are also flame-resistant and can withstand extreme temperatures up to 3000°F without any damage to the material. We offer a few different models which range from heat blocking, reflecting, and insulating. You have the option to add a special reflective surface which will deflect a substantial amount of the heat back to its source. Make your furnace more economical, while protecting everyone near it.

Build My Curtain Now

What Makes Our Furnace Curtains Special?

Curtain Materials

There are different materials to choose from depending on your specific requirements. You can go for a reflective surface which will redirect external radiant heat away from your associates or equipment. You can also choose materials which can hold the heat in and improve efficiency. Our heat-resistant furnace curtains can be as small as 6” x 6” and as big as 200’ x 50’.

Here is the full list of options we offer:

  • Model CDH-1000: Acrylic Coated Fiberglass – 24 oz. / .035″ thick
  • Model CDH-2000: Coated fiberglass
  • Model CDH-3000: Coated fiberglass / aluminized kevlar – .100″ thick
  • Model CDH-4000: Coated fiberglass / aluminized kevlar – .250″ thick
  • Models CDH-5000 and CDH-6000: Coated fiberglass both sides – .250″ thick

Mounting Options

There are a few different ways of hanging the furnace curtains. They can include industrial curtain tracks which allow the curtains to roll open for ease of access or static position mounts for fixed-in-place curtains.

Here are the three most common mounts our clients prefer to use:

  • A static mount which uses angle iron that is attached to the existing structure and then attached to the curtain via the grommets. The grommets are located at the top; once every 12 inches
  • A track and trolley design which uses steel rollers to roll the curtain side to side
  • A steel aircraft cable is strung between two points and allows the curtain to be supported with steel S-Hooks

Design Your Own Custom Model

We can supply furnace curtains in almost any length and height. Since clients use them mostly for industrial applications, the curtains have a custom design per application. In addition to the curtain, you can order industrial curtain tracks to support them. The industrial tracks use high grade galvanized steel which can endure these high heat environments for long periods of time. The most common applications are furnaces and coke ovens.

The highly thermal properties from materials such as Fiberglass will help the curtains survive in extreme conditions. These materials are powerful enough to reflect, block, and insulate the heat source. With our amazing industrial heat resistant curtains, you will easily isolate and contain processes such as heat-producing ovens and furnaces. You can fill in a quote form to design your own curtain or contact us directly for more information.

Keep The Heat In And Save On Utility Bills

Industrial Heat Resistant Curtains

How Do Our Curtains Compare To Steel Curtains?

Some customers are familiar with steel furnace curtains and might not be aware of their drawbacks. They do not do a very good job of reflecting heat back into the oven. They are porous and allow hot air to escape easily which decreases the efficiency of the furnace. Steel furnace curtains also cost a lot and might not be suitable for all budgets. They weight a lot as well, which makes them harder to carry and install.

Our industrial furnace curtains are less expensive, lighter weight, are better at containing heat and are easier to replace. And unlike steel furnace curtains, which are abrasive, our curtains are soft and easy to manage.

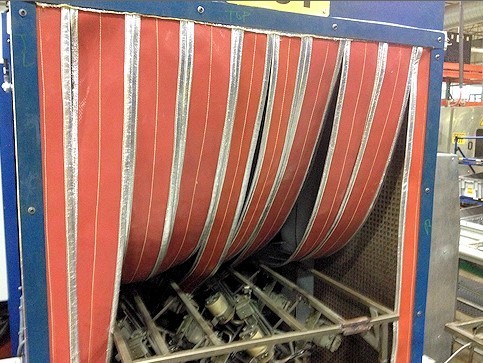

CDH-6000

We Also Offer Heat Resistant Strip Curtains

We can fabricate the material into strips which are great if you want quick and easy access in and out of the area. These industrial heat resistant strips are also useful at the entrances of coke ovens where there are extreme temperatures. The strip furnace curtains will keep the heat inside of the oven and save money on utility costs. Depending on the size of the opening you are trying to cover, we can produce wider strips.  They are an amazing solution for conveyor openings. As with the other furnace curtains models, there are a few important advantages:

  • Greatly reduce heat loss
  • Can endure extreme heat unlike PVC strip curtains
  • You can quickly replace them if they receive any damage
  • The bright colors serve as a visual barrier
  • Custom layouts, sizes, and applications to choose from

Key Benefits

CDH-4000

Our furnace curtains offer great benefits which range from maintaining comfortable temperatures for your workers to protecting heat-sensitive materials. The largest models we offer can roll up and down and contain extreme temperatures for an entire section of a facility. They will greatly improve the working environment while making ongoing operations more economical. By keeping the heat in, you will reduce the bills. Another common application would be useful when there are multiple curing ovens in one specific area of a facility. You can close our heat blocking curtains when curing is taking place. By doing this, the rest of the facility will remain at a comfortable working level. Your employees will remain safe and will be able to focus on their assignments. Our furnace curtains are also less expensive than steel ones, are easy to carry, and you can quickly replace or move them. Choose custom layouts, dimensions, track mounts, corner types, heat resistant power, chain weight pocket, and other features. Use these applications to build your own amazing furnace curtain. If you want to learn more about our heat-resistant furnace curtains, feel free to click below and go to the product page. If you want to order a unique curtain for your facility, click on the request a quote link.
