OVERVIEW

Each aspect of the AKON, LLC Food Grade Approved and Certified Curtains is specifically designed to help maintain a safe and sanitary environment within food-processing plants. Our end users include Frito-Lay, Nestlé, Pepsi, Kraft, and many other major facilities across the United States and Canada. This product has been highly regarded by customers since it was introduced to our range, and we continue to stand firmly behind it. You can trust these curtains to help keep your plant clean while protecting your workers and equipment throughout the year.

Stay In Compliance With Approved Curtains

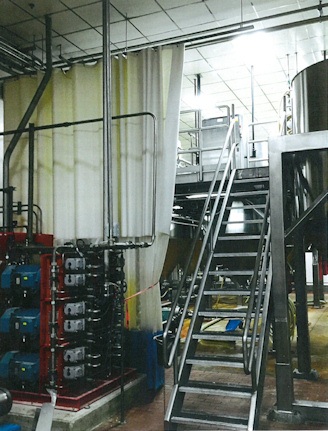

prevent cross-contamination usda-cross-contamination-curtains

Key Benefits of the Food Grade Approved Curtains

The curtain material is constructed from 40 mil USDA-grade clear, non-porous flexible PVC, leaving bacteria with nowhere to grow. Traditional PVC curtain materials can collect bacteria and create an unsanitary environment if left untreated.

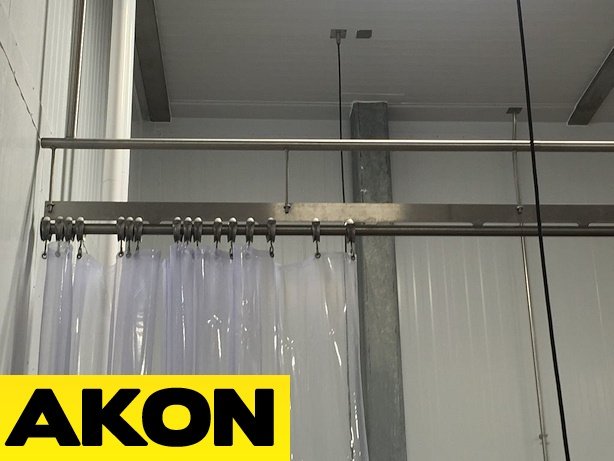

The stainless steel “open-top” track and trolley system minimises crevices and allows constant airflow across the hardware. This design eliminates dark, stagnant areas created by enclosed track systems where bacteria can collect and grow.

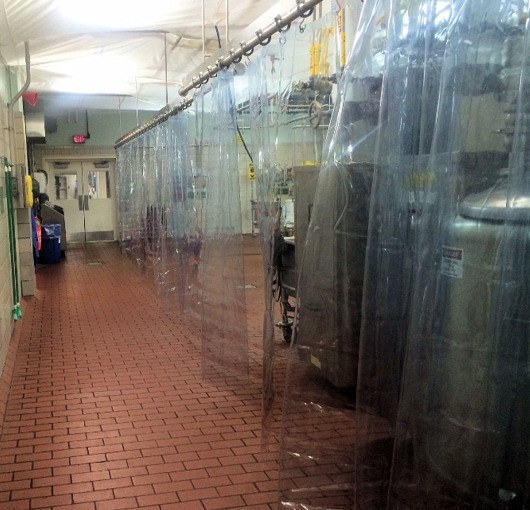

The design prevents cross-contamination between processing lines. End users of this food-grade approved curtain system value its ability to sanitarily separate one area from another, such as preventing ingredients from one mixing process entering another within the plant.
Helps reduce process-line shutdowns during wash-down cycles by creating a sanitary barrier between areas with the food-grade accredited curtains.
Features a double-reinforced top hem and no hems on the bottom or vertical edges. Overlapped and sewn hems create additional places for bacteria to enter and grow. A custom top hem removes the “bubble effect” created by overlapped hems while still providing the durability required to support the weight of the curtain and withstand daily pulling and sliding by plant workers.

Slick Clean Surface

Food Grade Curtains - USDA Wash Down Curtains

Food Grade Curtains Stay Clean

Curtain panel sections overlap on trolley hooks, eliminating the need for Velcro connections. Velcro made from traditional nylon and polyester inevitably becomes wet and dirty in a food processing environment. With each panel overlapping by approximately 30 cm or more on the hardware trolley hooks, you can effectively prevent wash breakthrough and cross-contamination while maintaining the sanitary environment you require.
All surfaces of the food grade certified curtain are fully wash-down capable.
The extruded PVC is the clearest in the industry. While some flexible PVC from other suppliers can have a cloudy tint, our PVC material has been praised for its excellent clarity for over 20 years.
Custom sizes and radius bends are available. No matter the size or scope of your project, AKON LLC can custom-manufacture a solution for your specific application.
Order accuracy assurance. AKON, LLC places top priority on getting your order correct. For every order, approval drawings are created by our engineers and must be signed and dated before production begins.

Easy Install

Food Grade curtains come with grommets at the top making hanging the curtains quick and easy with or without the curtain track.

Inexpensive

Food Grade curtains are about 1/3rd of the cost of other separation methods such as rigid walls systems and are easy to store.

Separate Workers

Food Grade curtain walls are ideal for separating workers, allergens, washing, packaging and many other food production operations.

Guard From Spray

Food Grade curtains are quick to deploy which will keep your non-wash down areas clean and dry and away from bystanders.

Superior Protection And Durability

Hardware Curtains Colors Accessories Benefits How to Measure

Hardware

Curtain Track

16-gauge galvanized steel tracks
Nylon roller hooks for easy opening
6 mounting styles to connect to various structures
Free-standing hardware for heights up to 5 m

Static Mount Hardware

Industrial Curtain Hanging Options

Aluminum Angle - Use with self-tapping Tek screws to pinch the curtain to the angle.
Grommets Only - You can then use many DIY methods to hang the curtains.
Beam Clamps - Clamps onto the flange of beams, joists, and purlins.

Curtains

Opaque Curtains - 13oz, 18oz, 22oz

Vinyl-coated polyester reinforced with scrim
Full range of fire retardant BS standards
18 oz and 22oz materials are outdoor-rated
Finished edges for a clean, crisp appearance
Double or triple hems added where needed for durability
Temperature range: -32 °C to 71 °C
All colours are the same price
13 oz = 0.4 mm thick, 1.44 oz per square foot
18 oz = 0.5 mm thick, 2.0 oz per square foot (most common)
22 oz = 0.6 mm thick, 2.44 oz per square foot

Clear Curtains - 20mil

Clear, double-polished PVC
Full range of fire retardant BS standards
Outdoor rated
Finished edges for a clean, crisp appearance
Double or triple hems added where needed for durability
Ideal for temperatures between -12 °C and 60 °C
20 mil = 20 mil thick, 1.98 oz per square foot (most common)

Tinted Curtains - 14mil

Ideal for welding applications
Blocks most UV radiation generated during welding
Full range of fire retardant BS standards
Finished edges for a clean, crisp appearance
Double or triple hems added where needed for durability
Ideal for temperatures between -12 °C and 60 °C
14 mil = 14 mil thick, 1.44 oz per square foot

Colors

Accessories

Curtain Features

Clear Vision Panels

Vision panels can be added to allow for a clear line
of sight through the curtain. The panels can be made
taller or shorter per your request.

Curtain Valances

A valance is made from the same material as the
lower curtain. They are used to seal the opening
above the curtain. This is generally the space from
the roof deck to the bottom of the joist or purlin.
They can be rectangular or follow the roof's slope.

Floor Sweeps

A floor sweep seals the open area between the
curtain and the floor. It attaches to the main
curtain by Velcro. They are as wide as the entire
length of the curtain. These are ideal for controlling
dust, fumes, odors and other undesirable elements.
They can also be replaced in the future should the
friction from the floor wear them out.

Anchor Straps

Velcro straps hold your curtain in place if a
breeze or if a more secure curtain is needed.
These anchors feature Velcro straps that loop
through a D-ring, which is anchored into the
cement floor. Typically spaced every 1.2 m.

Seal Velcro

Seal Velcro, also known as adhesive Velcro, sticks
onto your curtain and can be installed in the field.
Please note that stick-on velcro is not ideal for
cold temperature applications or high-frequency
use.

Chain Weights

If you have a slight breeze or are power washing
near the curtain, then we can add a galvanized
lightweight chain weight to the bottom of the
curtain.

Connecting Curtains

Velcro

Velcro is used to connect curtain sections
together to form larger curtain walls. The
Velcro also serves as an access point for
larger curtains and makes them easier to
install.

Magnets

Seal magnets are an ideal way to attach curtains
to each other or adjacent steel walls and beams.
Best utilized in dusty areas that would clog up
Velcro.

Entry Options

industrial-curtain-options (5)

Sewn-In Strip Doors

Strip doors that are sewn into the curtain are
ideal for light foot traffic. This allows for quick
movement of people into and out of the
industrial curtains.

Free-Standing Strip Doors

For motorized traffic, a free-standing steel frame
strip door is ideal. The steel frame takes the
stress off of the curtain wall, ensuring longevity
and performance for motor traffic and high use.

Swinging Impact Doors

A free-standing industrial swinging door can
also be provided for access. Also known as
impact doors, these heavy-duty doors can
take a lot of abuse from carts, forklifts, or
heavy foot traffic. View Styles

Roll-Up Doors

Supported with a free-standing steel frame,
the power roll-up doors can be opened and
closed via remote from a forklift. Door
styles and prices vary based on the frequency
of opening and closing, speed requirements,
and size. View Styles

Benefits

Key Benefits

Less expensive than rigid walls
Can be taken down quickly when not needed
Can be re-purposed in other areas
Ability to purchase additional curtains and connect them to existing ones
Quickly divide work areas
Industrial curtains improve worker safety
Easy to roll out of the way when not in use
Easy to clean due to the smooth vinyl surface
Helps contain air movement, odours, dust, and overspray
Lifetime warranty on all hardware and a 5-year warranty on curtains

Common Layouts

AKON can supply almost any layout you can imagine. Below are some of the most common styles. They can be single-sided, double-sided, triple-sided, four-sided, or multiple straight runs to create complete enclosures. Simply tell AKON your required design, and we will fabricate it exactly to your specifications. For customised layouts, sketch your design and upload it using our online RFQ form. See the button below.

How to Measure

Width

Measure the distance that you are trying to cover
- We will generally add 5% to this dimension to give your curtain a proper drape.
- When you receive your quote, the hardware width shown will be the actual overall width.

Height

Measure the distance from the floor to the mounting point
- We will subtract 7.62 cm to allow for the hardware and keep your curtain just off the ground.
  - If you choose the floor sweep option, we still subtract 7.62 cm. This allows the floor sweep to sit lightly on the floor while the main curtain hangs just above it.
  - If you have a sloped ceiling, please provide the high-point height and the low-point height. We will assume a straight, linear slope. More Info Here On Sloped Ceilings

Need More Help? Watch This

Common Questions

What is the spacing from the bottom of the track to the top of the curtain?
Standard curtains have a gap of approximately 2–2.5 cm between the bottom of the track and the top of the curtain.

What are the dimensions of the track?

Can the track be cut to size on site?
Yes. The track is designed to be cut on site using a hacksaw or a Sawzall.

How much width does the radius corner add to the length?

The radius corner is 61 cm (24") in diameter. It will add approximately 61 cm (2 ft) to each dimension.
For example, if you have 305 cm (120") of curtain track, adding a radius corner will make the overall length of side “A” about 366 cm (144").

How does the track go together?
The track is modular and will arrive in sections with a simple bolt-together design.

How close together do I need the track supports?
Track supports should typically be spaced approximately every 1.5 m. The farther apart the supports are, the more the track may deflect. For shorter curtains, supports can sometimes be spaced a little farther apart. You will receive enough support brackets with your order to achieve this 1.5 m spacing.

Can I simply drill straight through the track and into the ceiling / structure?
Yes. This is called a flush-mount installation and is very common. Simply drill through the centre of the track and fix it into your structure using wood screws, bolts, Tek screws, etc. Space the fixings roughly every 0.9–1.5 m.

How hard is it to install the industrial curtain track?
Installation is straightforward. All components fit together and are secured with set screws. The process is intuitive, but if you have any difficulty, simply call or email us and we will guide you through it.

Will the track rust? Can it be used in wet environments?
The track is hot-dip galvanised (HDG), a process commonly used to protect steel from corrosion in demanding environments. It offers maintenance-free longevity for decades. The corrosion rate of hot-dip galvanised steel is typically about 1/30 that of bare steel in the same environment.
