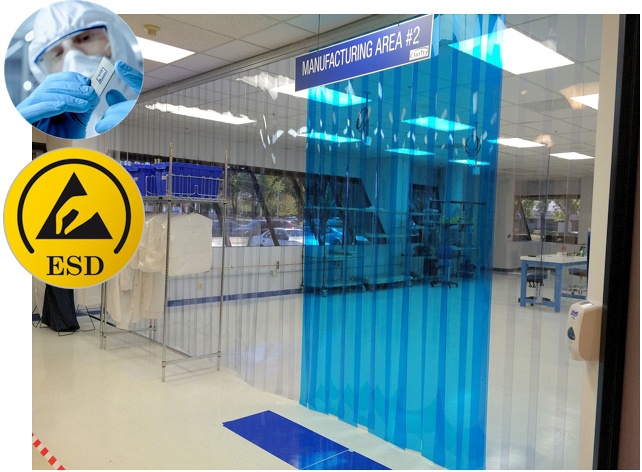

Uncontrolled electrostatic discharge can damage electronics, interrupt processes, or create hazards. ESD (electrostatic discharge) curtains create static-dissipative zones that install fast, reconfigure easily, and cost far less than rigid rooms, perfect for electronics, assembly, labs, and clean areas.
- Permanently antistatic materials (not just surface-coated).
- Build soft walls, enclosures, or quick partitions.
- Custom-made to size with multiple grades (solid, grid, strip).
- Installs quickly; reconfigure as layouts change.
Designed For Speed and Flexibility
Key Benifits
Reduce ESD risk: Static-dissipative vinyl or conductive grid films help keep charges controlled.
Fit any space: Single runs, multi-straight lines, or full enclosures.
Minimal downtime: Prefabricated panels mount via track or grommets.
Low maintenance: Smooth, wipe-clean surfaces; optional FR grades.
Future-proof: Add doors, windows, or sections as needs grow.
Easy Install
Antistatic curtains come with grommets at the top making hanging the curtains quick and easy with or without the curtain track.
Inexpensive
Antistatic curtains are about 1/3rd of the cost of other separation methods such as rigid walls or panel systems and are easy to store.
Separate Workers
Antistatic curtain walls are ideal for separating workers from sensitive areas where electrical discharge could be dangerous.
Control Noise
Antistatic curtains help reduce noise due to the thick PVC they are made from which makes for a more comfortable work environment.

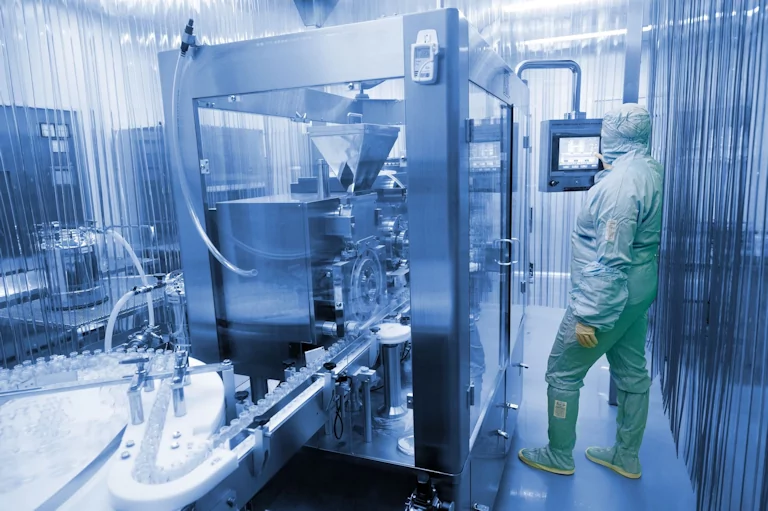

Common Applications of ESD Antistatic Curtains
Common Applications
The appearance of these antistatic curtains is the same as any common PVC film. Both sides of the film have the same properties. These curtains are commonly used in the following applications. The Industrial ESD PVC curtains also have a great draping ability so that they can be used as protective covering for carts, instruments, or even entire walls.
- Cleanroom ESD Curtains
- Semiconductor ESD Curtains
- Microelectronics ESD Curtains
- Production processes sensitive to electricity
Material Options

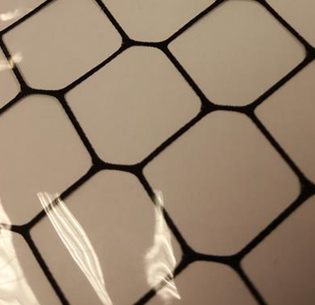

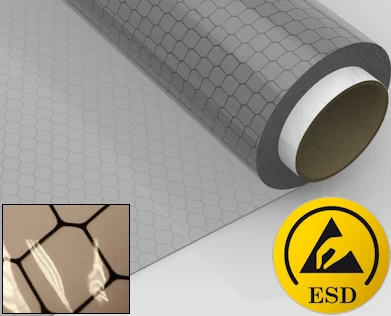

ESD Grid Curtain / Antistatic Curtain Film
These curtains are an ideal barrier curtain wall for sensitive environments. The honeycomb grids are installed on both sides of the PVC curtain for additional dissipation of static electricity. The material is 12mil thick.
- Material is thin which compacts easily
- The PVC grid curtains are less expensive than thicker materials
- The PVC can ship in rolls that are quick to deploy
- The conductive scrim grounds the static charges

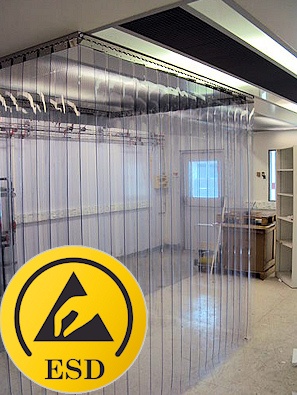

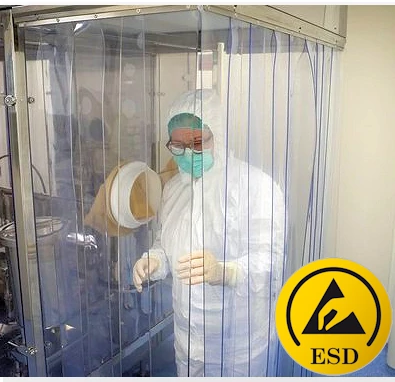

ESD Strip Curtains and Doors
Strip curtains allow the rapid movement of people and material from one side to the other. The strips come in widths of 4” up to 12” depending on your application needs.
- ESD Strips come in thickness from .080” to .240”
- Mounting hardware comes in stainless or galvanized
- Strips can be purchased in bulk rolls or pre-cut and punched
- They are easy to replace should they become damaged

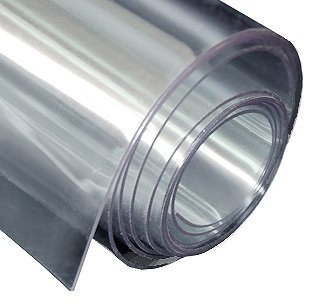

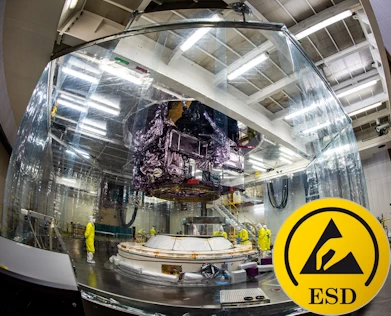

ESD PVC Curtain Walls
Like the anti-static grid curtain shown above, the curtain walls are generally thicker and more robust. They come in thicknesses from 14 mil to 120 mil. These can be installed as static fixed in place barriers or movable side-to-side walls via industrial track.
- Can be hundreds of feet wide to section off large spaces
- Sections can be Velcro or magnet attached
- PVC comes in all clear, tinted, solid color, or frosted
- The curtains can be secured to the floor for a clean finish
- 14 Mil Film, 40 Mil (1.0mm), 60 Mil (1.5mm), 80 Mil (2.0mm), 120 Mil (3.0mm)

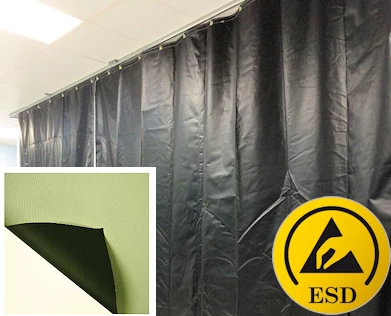

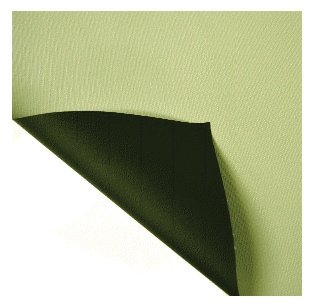

ESD Vinyl Curtain Walls
Less expensive than the thicker ESD PVC curtain material above, the ESD Vinyl curtains are thinner and more flexible. They are custom made to your specific requirements just like the other materials.
- Light forest green front and black back
- Can be double layered for black front and back or green front and back
- Static dissipative green front and conductive black back
- Surface resistance on the green side of 109 – 1010 ohms
AKON Antistatic Curtains Used By
Common Questions about ESD Antistatic Curtains
What’s the difference between antistatic and ESD curtains?
“Antistatic” helps reduce static buildup. ESD curtains are engineered to safely dissipate charge—using permanent antistatic compounds or a conductive grid that can be grounded.
How are ESD curtains grounded?
Use grounding eyelets/tabs with conductive tape or braided straps to connect the curtain (or its conductive grid) to an approved earth ground per your ESD control plan.
Are the ESD properties permanent?
Yes when specified as permanent antistatic vinyl or conductive grid films. Topical anti-static sprays are temporary and not recommended for long-term control.
Which formats are available?
Solid ESD curtain walls, ESD grid film curtains, ESD strip curtains for doorways, and ESD bulk roll material for cut-to-length replacements.
What thickness should I choose?
Use 12–40 mil for light partitions; 40–120 mil for heavy traffic or impact. ESD strip doors typically use 0.080–0.160 in for personnel and 0.120–0.240 in for equipment.
Can these be used outdoors?
ESD films are intended for indoor or controlled environments. Prolonged UV and weather exposure can degrade antistatic performance.
Can I add doors and visibility?
Yes—sewn-in or free-standing strip doors, swinging or powered roll-ups, and clear vision panels can be integrated for traffic and line-of-sight.
Solid Curtain Hardware
Static Mount
Rolling Hardware
- 16 gauge galvanized steel tracks
- Nylon roller hooks for easy opening
- 6 mounting styles to connect to various structures
- Free standing hardware for up to 20' in height
Static Mount Hardware
- Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
- Grommets Only - You can then use many DIY methods to hang the curtains.
- Beam Clamps - Clamps onto the flange of beams, joists and purlins.
Strip Curtain Hardware
Static Mount
- Header Mount
- Wall Mount
- Universal Mount
- Threaded Rod Mount (Just a Feature of Universal Mount)
Free-Standing Mount
- Supported from the floor up
- Used in open floors when you can support from above
Rolling Hardware
- Allow the strips to roll out of the way
- Ideal for complete access when strips are not needed
- Note the strips roll like a barn door and do not fold up
