Rolling Hardware

• 16 gauge galvanized steel tracks
• Nylon roller hooks for easy opening
• 6 mounting styles to connect to various structures
• Free standing hardware for up to 6m in height

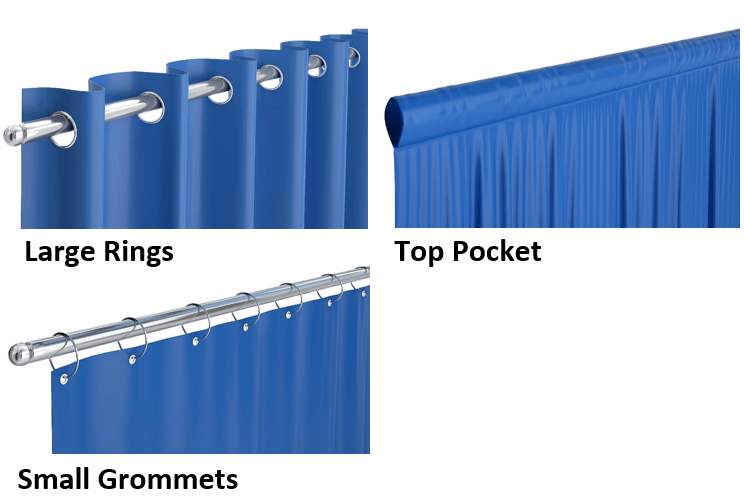

Static Mount Hardware

• Aluminum Angle - Use with self tapping Tek screws to pinch curtain to angle.
• Grommets Only - You can then use many DIY methods to hang the curtains.
• Beam Clamps - Clamps onto the flange of beams, joists and purlins.

Key Benefits

• Less expensive than rigid walls
• Can be taken down quickly when not needed
• Can be re-purposed in other areas

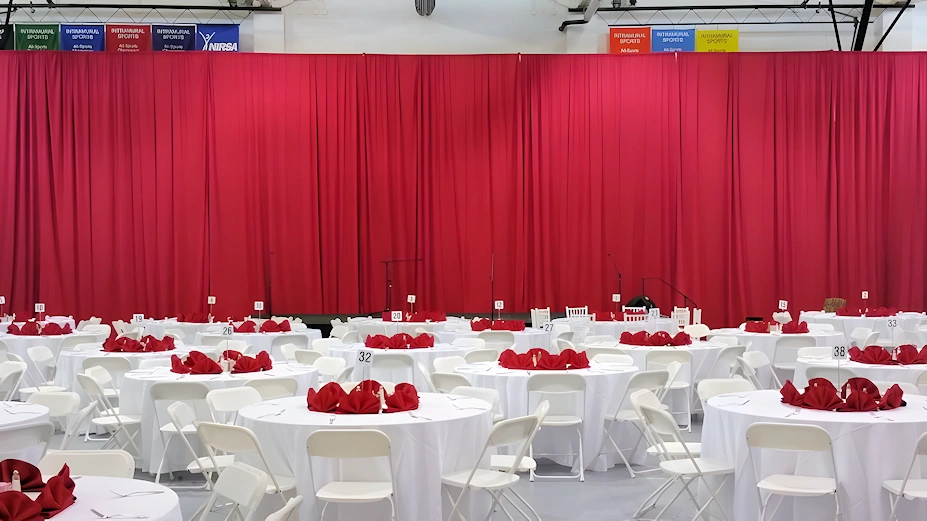

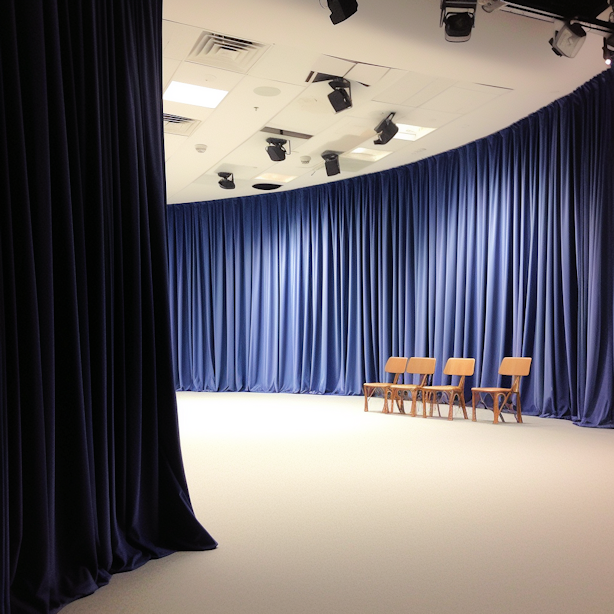

• Professional look for backdrops and special events
• Quick to roll out of way when not in use
• Lifetime warranty on all hardware and 5 year warranty on curtains

Common Layouts

AKON can supply just about any layout you can think of. Below are some common layout styles. They can be single sided, double-sided, triple sided, four-sided or multiple straights to create complete photo backdrop enclosures. You simply inform AKON about your desired design and we will have it fabricated exactly as you need it for a perfect commercial curtain install. For customized layouts, sketch your design and upload it using our online RFQ form. See button below.

Width

• Measure the distance that you are trying to cover
  • Using our input form input that dimension.
  • Then select the amount of fullness you want and we will do the math for you for perfect drape.
  • When you receive your quote, the hardware width will be the actual width and the curtains will be wider for the drape.

Height

• Measure the distance from the floor to the mounting point
  • We will subtract 7cm to account for the hardware to keep your curtain just off of the ground.
  • If you have a sloped ceiling please provide us with the high point height and the low point height. We will assume it is a linear straight slope.



Need More Help? Watch This

---



Common Questions

---

• Standard curtains have approximately 25mm-95mm of a gap from the bottom of the track to the top of the curtain.

What are the dimensions of the track?

• Yes, the track is made to be field cut on site using a hack saw or Sawzall.

• The track is modular in design and will arrive in pieces that have a simple bolt together design.

• The track should be supported approximately every 1.5m with a track support. The farther apart the track supports, the greater the deflection. If you have a relatively short in height curtain then you could space the supports out a little farther. You will receive enough track supports with your order to achieve this 1.5m spacing.

• Yes. This is called a flush mount install and is very common. Simply drill through the middle of the track and use a small wood screw, bolt, Tek screw...ect into your structure. Space the holes about every 90cm-1.5m.

• It is very easy. All of the components simply fit into each other and connect with set screws. The installation is very intuitive. If you have any difficulty simply call or email us and we will walk you through the process.
